MERCUSYS MW306R 300Mbps Multi-Mode Wireless N Router

Detail MERCUSYS MW306R 300Mbps Multi-Mode Wireless N Router

Stable Wi-Fi for Your Daily Use — MW306R provides fast and stable connections to meet all your network needs with speeds of up to 300 Mbps

Broader Coverage — Equipped with three high gain external antennas to deliver strong Wi-Fi signals to every corner of your home
Multi-Mode — Four modes in one device to satisfy all application scenarios
Easy installation — Intuitive webpage guides you through the setup process in minutes
Active Parental Controls — Establish appropriate access policies to protect children with responsible, safe internet access
IPTV and IPv6 Supported

SPECIFICATION:

Wireless

Wireless Standards

IEEE 802.11 b/g/n
Frequency

2.4-2.5 GHz
WiFi Speeds

• 11n: Up to 300Mbps (Dynamic)
• 11g: Up to 54Mbps (Dynamic)
• 11b: Up to 11Mbps (Dynamic)
Reception Sensitivity

• 270M: -70dBm@10% PER • 11M: -87dBm@10% PER
• 130M: -72dBm@10% PER • 6 M: -92dBm@10% PER
• 54M: -74dBm@10% PER • 1 M: -94dBm@10% PER
Transmission Power

<20dBm (EIRP)
Wireless Security

WPA-PSK/WPA2-PSK
Wireless Functions

Enable/Disable Wireless Radio, WDS Bridging

Software

WAN Type

Dynamic IP/Static IP/PPPoE/PPTP/L2TP
Management

Access Control
Local Management
Remote Management
DHCP

DHCP Server, DHCP Client List
Port Forwarding

Virtual Server, UPnP, DMZ
Firewall Security

IP and MAC Address Binding
Guest Network

2.4GHz Guest Network

Hardware

Dimensions

5.8 × 4.5 × 1.3 in (147 × 115 × 34 mm)
Button

RESET/WPS Button
External Power Supply

5V/0.6A
Antenna Type

3* Fixed Antennas

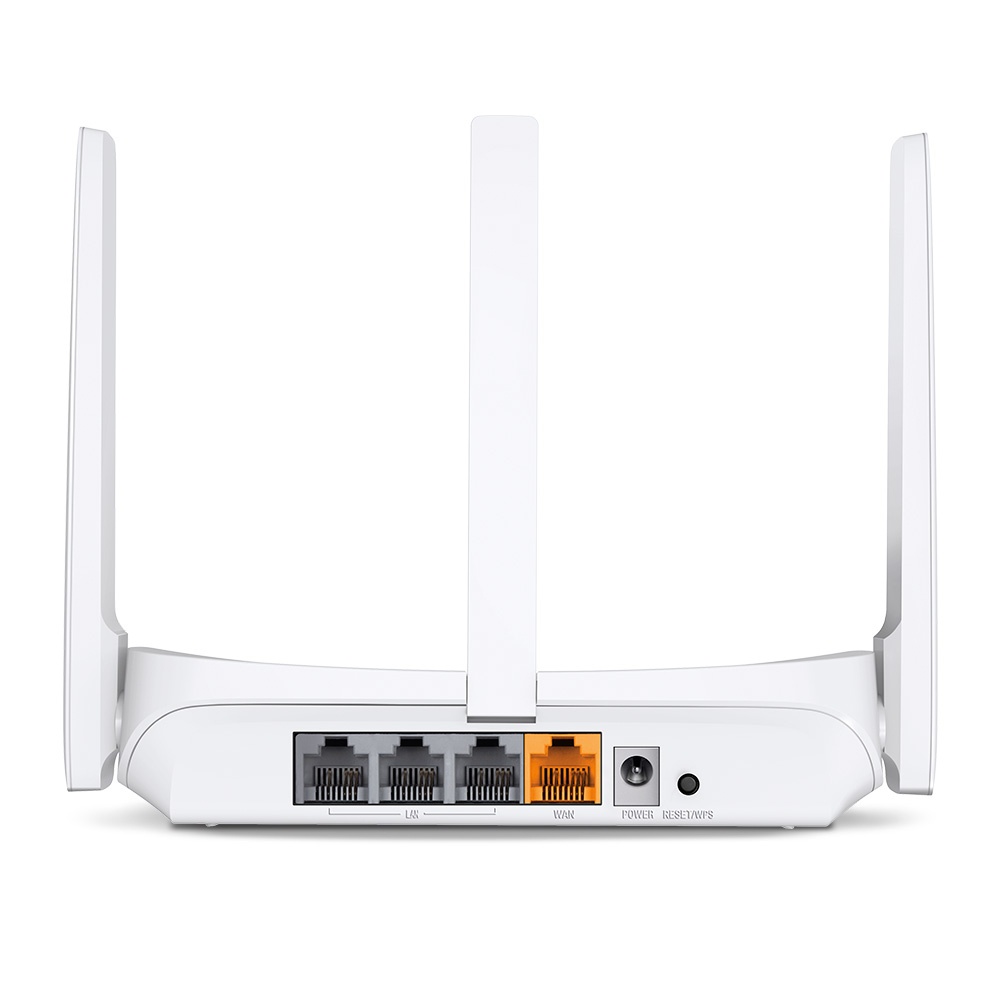

Ethernet Ports

1* 10/100Mbps WAN Port,
3* 10/100Mbps LAN Ports

Others

Package Contents

Wi-Fi N Router (MW306R)
Power Adapter
Quick Installation Guide
Ethernet Cable
Environment

• Operating Temperature: 0°C~40°C (32°F~104°F)
• Operating Humidity: 10%~90% Non-Condensing
