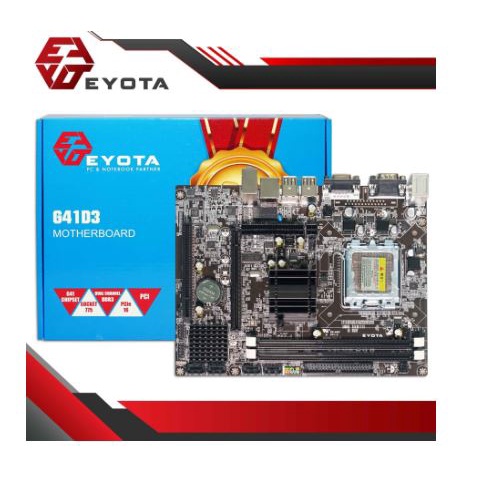

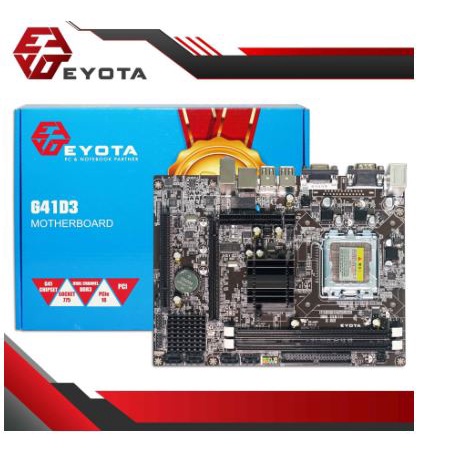

MOTHERBOARD EYOTA G41D3
Specification:
-Model : G41-D3
-CPU Support : Core 2duo/ core duo/ Pentium 4/ Pentium D/Celeron D processors in
LGA 775/ 771
-Chipset : Intel H61C + 82801GB (ICH 7)
-Memory Support : 2DIMM slots, DDR3 Dual-Channel 800MHz/ 1066MHz/ 1333MHz, Up to
4GB
-Storage SUpport : 4x SATA Ports, 1xIDE
-LAN : Realtek RTL8105E 100/10 Mbps (Optional RTL8111e 1000/100/10 Mbps)
-Expansion Slots : 1 PCI-Ex16, 1 PCI (2 PCI Optional)
-Audio : Realtek 662 HD Audio
-Back Panel I/O : 1 x VGA
1 x HDMI
6 x USB 2.0
1 x LAN(RJ45) port
3 Audio Jacks
-On broad Connectors: 1 x USB 2.0 connector, 1 x LPC connector
1 x Front Panel Audion connector
1 x 4-pin CPU dan connector
1 x SYS fan connector
1 x 24-pin ATX power connector
1 x 4-pin ATX 12V power connector
1 x Front Panel connector, 1 x Speaker Connector
-Form Actor : Micro-ATX 17cm*21cm

Ready Stock !
