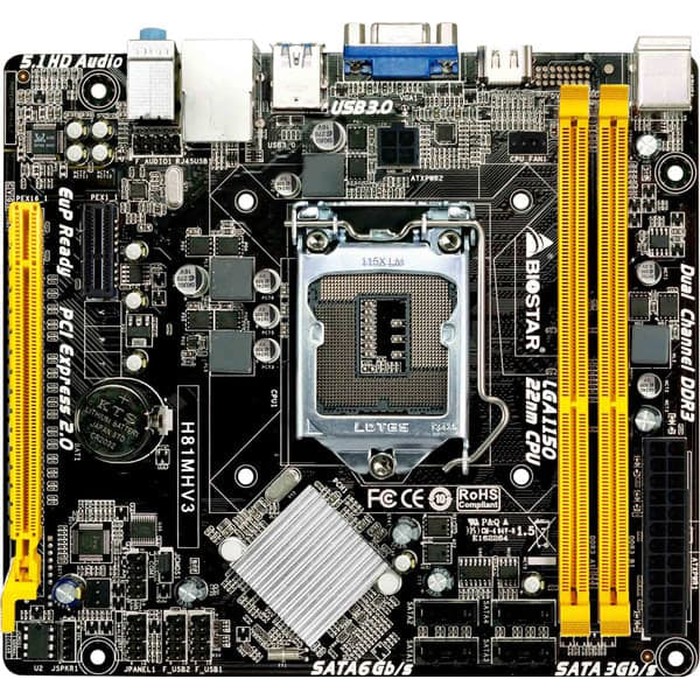

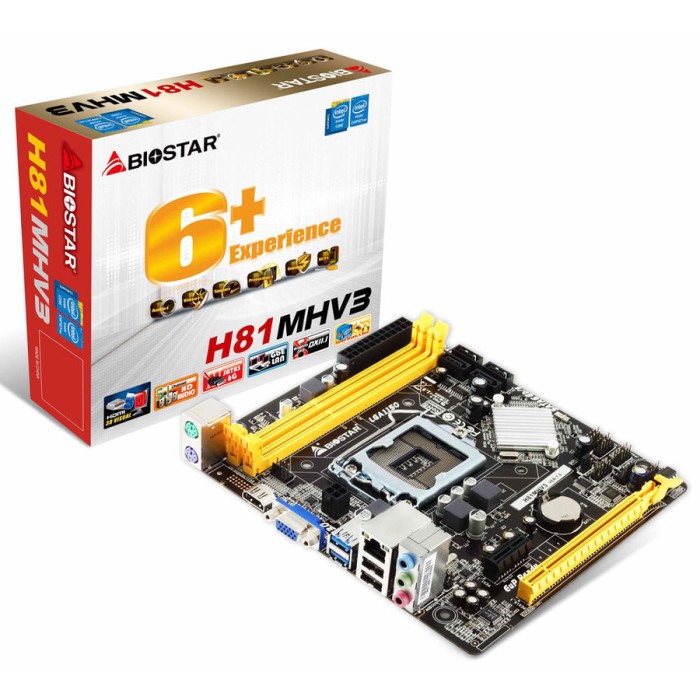

Mainboard BIOSTAR H81MHV3 Lga 1150 ddr3 intel h81

Detail Mainboard BIOSTAR H81MHV3 Lga 1150 ddr3 intel h81

Chipset Intel H81
CPU SUPPORT Intel Core i7 LGA 1150 Processor
Intel Core i5 LGA 1150 Processor
Intel Core i3 LGA 1150 Processor
Intel Pentium LGA 1150 Processor
Maximum CPU TDP (Thermal Design Power) : 95Watt
MEMORY Support Dual Channel DDR3 1600/1333/1066 MHz
2 x DDR3 DIMM Memory Slot
Max. Supports up to 16GB Memory
EXPANSION SLOT 1 x PCI-E x16 2.0 Slot
1 x PCI-E x1 2.0 Slot
STORAGE 2 x SATA3 Connector
2 x SATA2 Connector
USB 2 x USB 3.0 Port
2 x USB 2.0 Port
2 x USB 2.0 Header
LAN Realtek RTL8111G - 10/100/1000 Controller
INTEGRATED VIDEO By CPU model
Supports DX11.1
CODEC Realtek ALC662 6-Channel HD Audio
REAR I/O 1 x PS/2 Mouse
1 x PS/2 Keyboard
2 x USB 3.0 Port
2 x USB 2.0 Port
1 x HDMI Connector
1 x VGA Port
1 x RJ-45 Port
3 x Audio Connector
INTERNAL I/O 2 x USB 2.0 Header
2 x SATA3 6Gb/s Connector
2 x SATA2 3Gb/s Connector
1 x Front Audio Header
1 x Front Panel Header
1 x CPU Fan Header
1 x System Fan Header
1 x Serial Header
H/W MONITORING CPU / System Temperature Monitoring
CPU / System Fan Monitoring
Smart / Manual CPU Fan Control
System Voltage Monitoring
DIMENSION Micro ATX Form Factor Dimension: 19cm x 17cm ( W x L )
OS SUPPORT Support Windows 7 / 8 / 8.1 / 10(x64)
BUNDLE SOFTWARE BIO-Remote2
Smart Speed LAN
ACCESSORIES 2 x SATA Cable
1 x I/O Shield
1 x DVD Driver
1 x Quick Guide
FEATURES Windows 8 Ready
Supports Solid capacitor
Supports Charger Booster
Supports BIOS Online Update
warranty 3 tahun SME

Gambar produk
