Mainboard Biostar H110MHV3 SOCKET 1151 DDR3
Merek: Biostar | Lihat selengkapnya produk Komputer & Aksesoris dari BiostarDeskripsi singkat
Komputer & Aksesoris > Komponen Desktop & Laptop > Motherboard > Mainboard Biostar H110MHV3 SOCKET 1151 DDR3
- Pengiriman Ekspres
- Barang yang diperiksa
- Bayar di tempat berlaku
- Kualitas, Prestise
- Pengembalian produk
- Dukung pembuatan faktur
Produk Terkait
Detail Mainboard Biostar H110MHV3 SOCKET 1151 DDR3
Mainboard Biostar H110MHV3 SOCKET 1151 DDR3MAINBOARD SOCKET 1151 - SLOT RAM DDR3
SUPPORT SKYLAKE DAN KABYLAKE
Intel H110 single chip architecture
Support 2-DIMM DDR3L-1866(OC)/ 1600/ 1333 up to 16G maximum capacity
Support USB 3.0
Support HDMI multimedia port
Support GbE LAN
full spec :
Chipset Intel H110
CPU SUPPORT 7th & 6th Gen Intel® Core™ i7 LGA 1151 Processor
7th & 6th Gen Intel® Core™ i5 LGA 1151 Processor
7th & 6th Gen Intel® Core™ i3 LGA 1151 Processor
7th & 6th Gen Intel® Pentium® LGA 1151 Processor
7th & 6th Gen Intel® Celeron® LGA 1151 Processor
Maximum CPU TDP (Thermal Design Power) : 91Watt
MEMORY Support Dual Channel DDR3L 1866(OC)/ 1600/ 1333 MHz
2 x DDR3 DIMM Memory Slot
Max. Supports up to 16GB Memory
EXPANSION SLOT 1 x PCI-E 3.0 x16 Slot
1 x PCI-E 2.0 x1 Slot
STORAGE 4 x SATA3 Connector
USB 2 x USB 3.0 Port
1 x USB 3.0 Header
2 x USB 2.0 Port
2 x USB 2.0 Header
LAN Realtek RTL8111H - 10/100/1000 Controller
INTEGRATED VIDEO By CPU model
Supports DX12
Supports HDCP
CODEC Realtek ALC887 8-Channel HD Audio
REAR I/O 1 x PS/2 Mouse
1 x PS/2 Keyboard
2 x USB 3.0 Port
2 x USB 2.0 Port
1 x HDMI Connector, resolution up to 3840 x 2160 @30Hz, compliant with HDMI 1.4a
1 x VGA Port, resolution up to 1920 x 1200 @60Hz
1 x RJ-45 Port
3 x Audio Connector
INTERNAL I/O 1 x USB 3.0 Header
2 x USB 2.0 Header
4 x SATA3 6Gb/s Connector
1 x Front Audio Header
1 x Front Panel Header
1 x CPU Fan Header
1 x System Fan Header
1 x TPM Header
H/W MONITORING CPU / System Temperature Monitoring
CPU / System Fan Monitoring
Smart / Manual CPU Fan Control
System Voltage Monitoring
DIMENSION Micro ATX Form Factor Dimension: 19cm x 17cm ( W x L )
OS SUPPORT Support Windows 7 / 8.1(x64) / 10(x64)
BUNDLE SOFTWARE BullGuard
BIO-Remote2
Smart Speed LAN
ACCESSORIES 2 x SATA Cable
1 x I/O Shield
1 x DVD Driver
1 x Quick Guide
FEATURES Supports Solid capacitor
Supports BIOS-Flasher
Supports Charger Booster
Supports BIOS Online Update

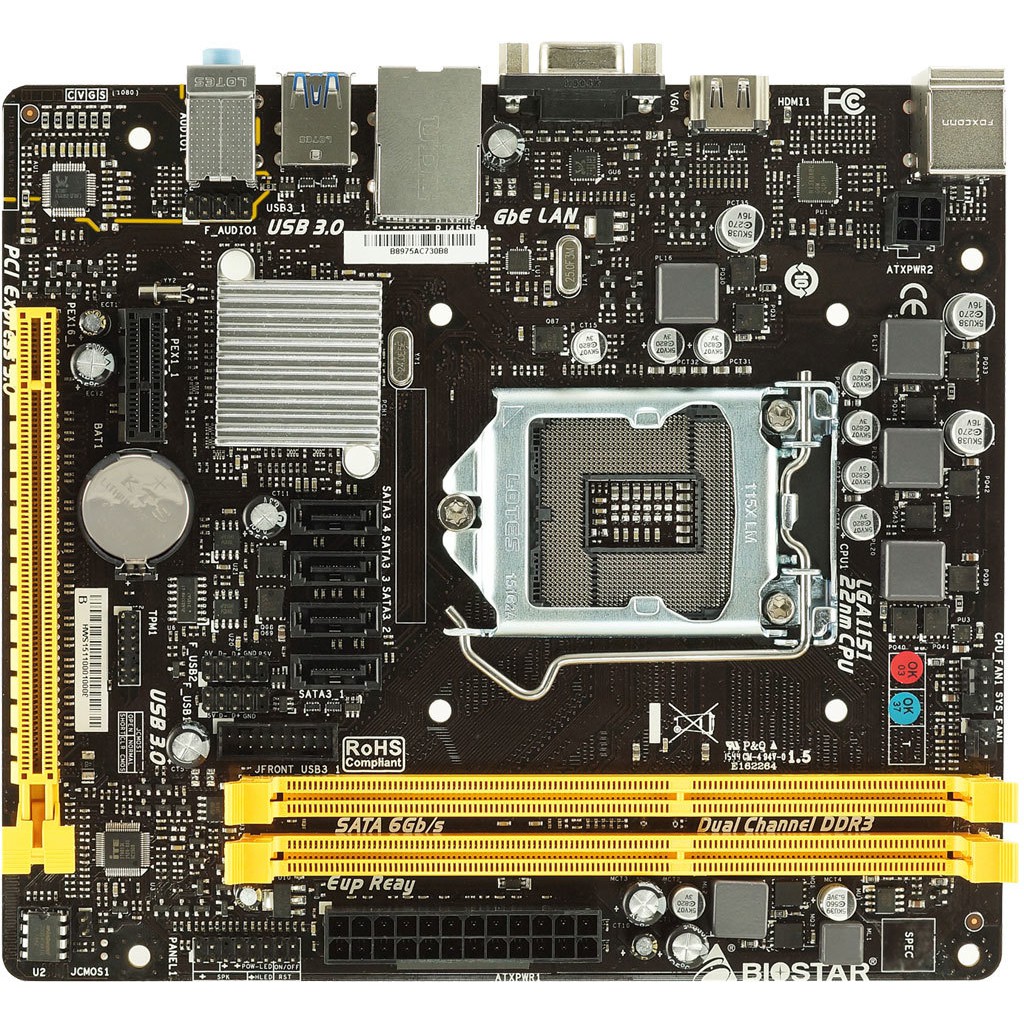

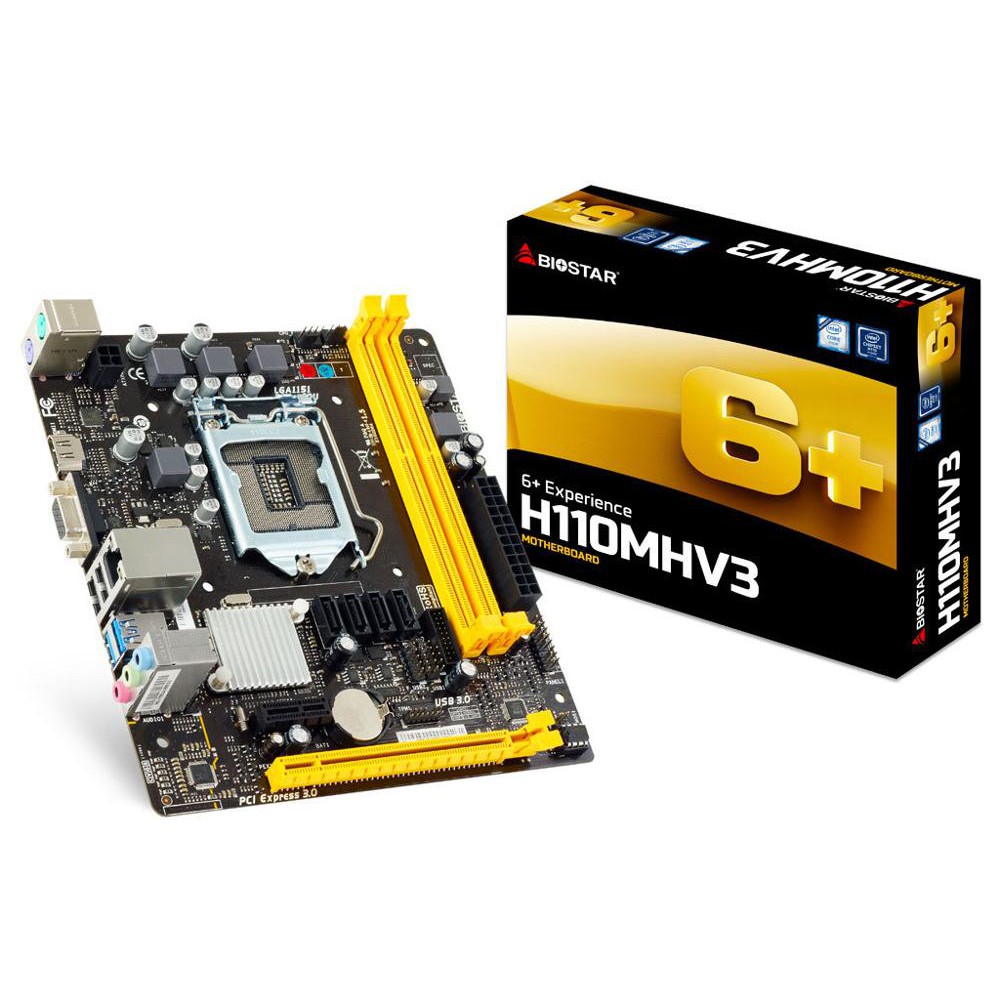

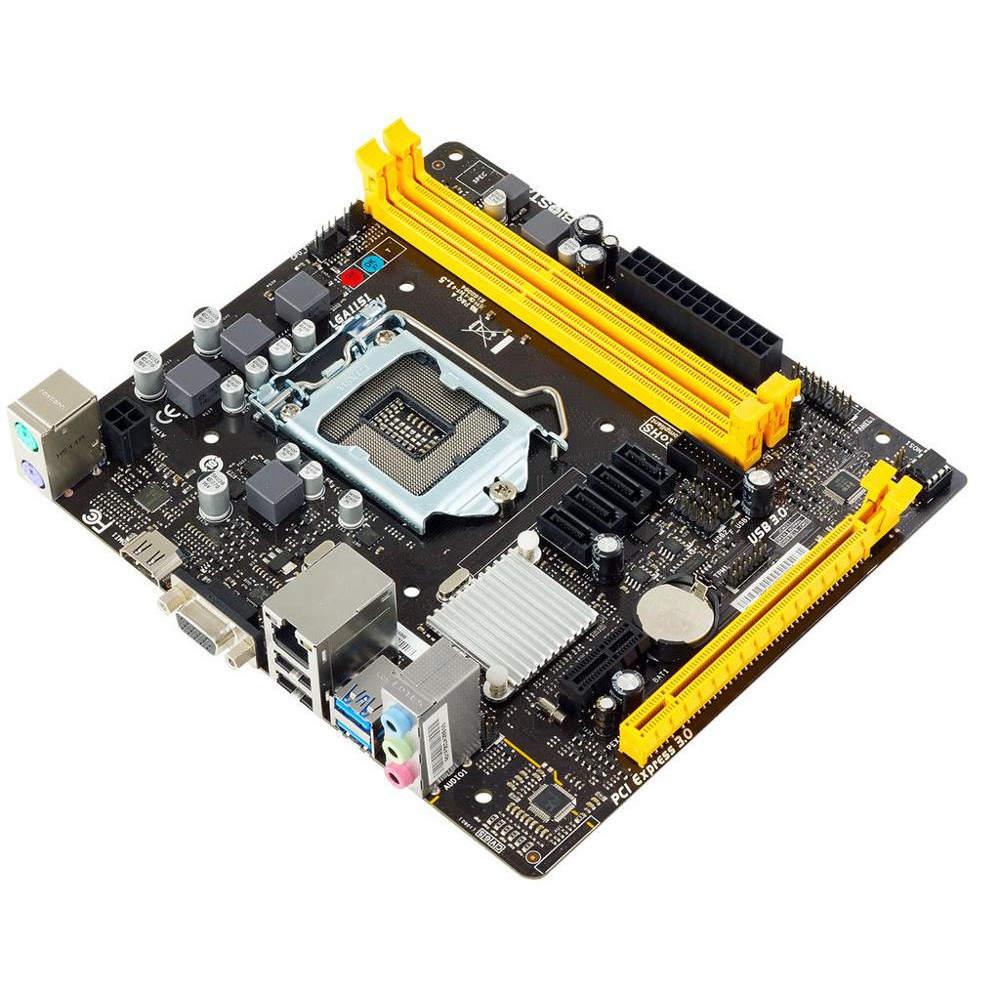

Gambar produk
