(lsingers1) Modul Konverter Step up down DC-DC 15A 400W Untuk Notebook

Detail (lsingers1) Modul Konverter Step up down DC-DC 15A 400W Untuk Notebook

Feaures:
Module name :400W boost constant current module
Module properties: non-isolated step-up module (BOOST)
Input voltage: DC8.5V-50V
Input current: 15A (MAX) exceeds 8A please enhance heat dissipation
Quiescent current: 10mA (12V liter 20V, the output voltage, the higher the current will increase too quiet)
Output voltage: 10-60V continuously adjustable
Constant] range: 0.2-12A
Temperature: -40 to + 85 degrees (ambient temperature is too high, please enhance heat dissipation)
Operating frequency: 150KHz
Conversion efficiency: up to 96%
Overcurrent protection: yes
Input reverse polarity protection: no
Installation: 4pcs 2.55mm screw holes
Connection method: Connection Output

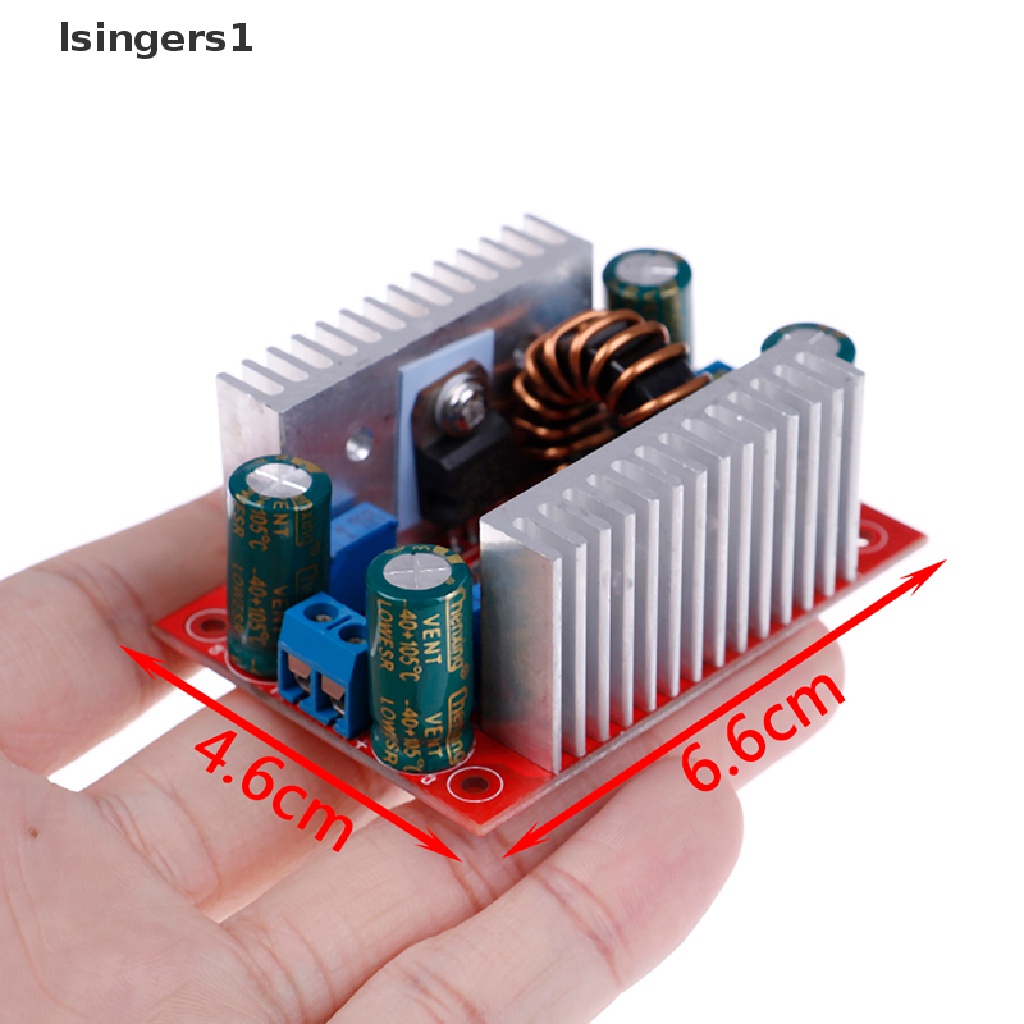

Module size: 67mm X48mm X 28mm (LxWxH)
Single module: 60g
Package Include:
1 x 400W Boost Converter
