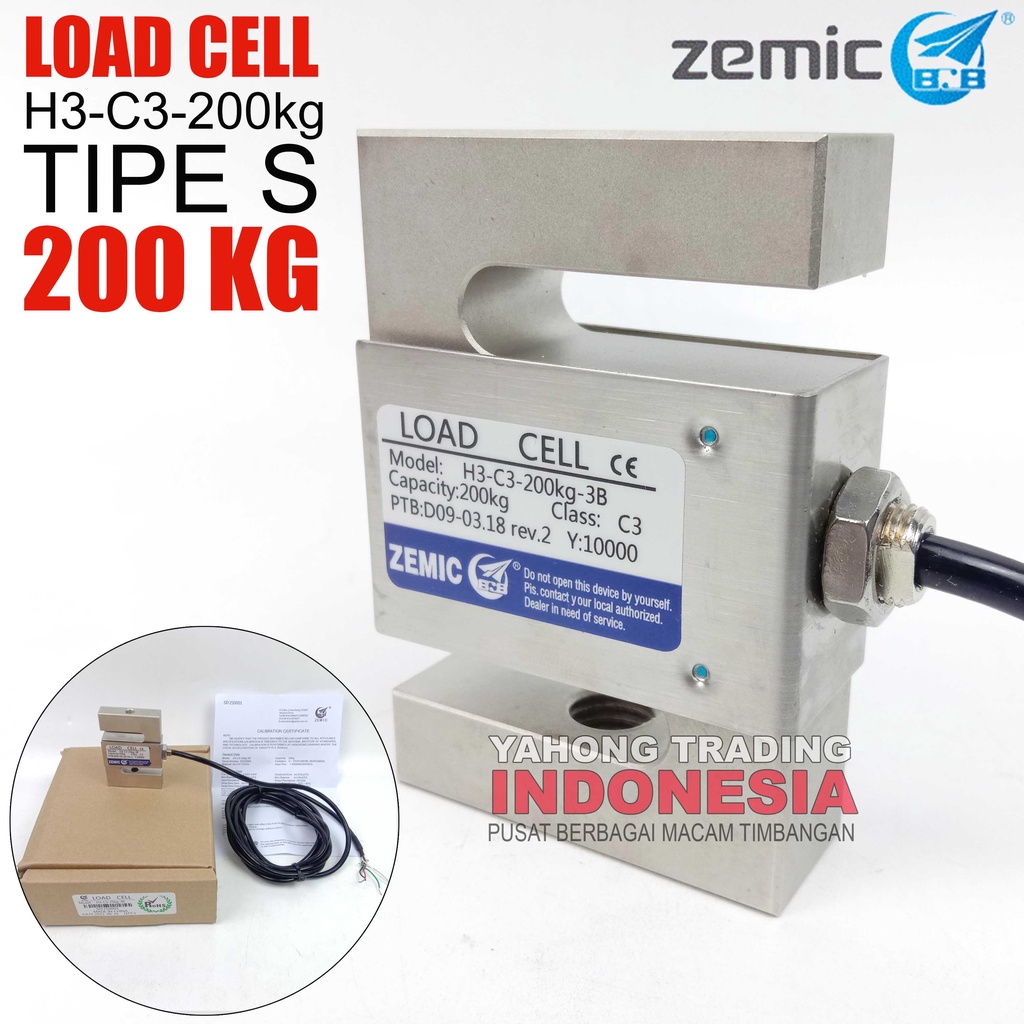

Load Cell ZEMIC H3 C3 200kg Tipe S Loadcell Sensor Berat Timbangan Digital

Detail Load Cell ZEMIC H3 C3 200kg Tipe S Loadcell Sensor Berat Timbangan Digital

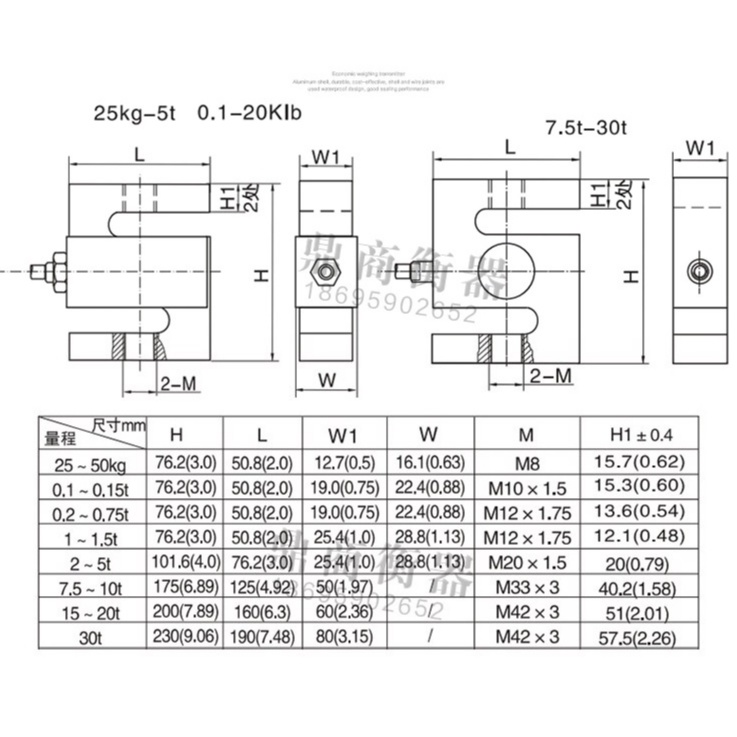

DIMENSI PRODUK ADA DI GAMBAR

SPESIFIKASI:
Model: H3-C3-200kg-3B
Kapasitas : 200kg
Class : C3

Material: ALLOY STEEL
Full Scale Output: 2.0023 mV/V
Non-Repeatability: ±0.01% of FS
Input Resistance: 350±3.50
Temp,Sens,Zero: ±0.015% FS/10°C
Temp, Sens, Output:±0.011% FS/10°C
Non-linearity: ±0.02% of FS
Cabie Lengty: 3m

Safe Overload(150%): 300kg
Ultimate Overload (300%): 600kg

Excitation: 5-12VDC(NOM). 18VDC(MAX)
Insul Res: > 5000MQ(50VDC)
Combined Error: ±0.02% of FS
Zero Balance: ±1.0% of FS
Output Resistance: 351+±20
Comp,Temp.Range: -10°C -40°C
Operating Temp: -35°C-70°C
Hysteresis:±0.02% of FS

𝑺𝒆𝒃𝒆𝒍𝒖𝒎 𝒃𝒂𝒓𝒂𝒏𝒈 𝒅𝒊𝒌𝒊𝒓𝒊𝒎 𝒌𝒂𝒎𝒊 𝒑𝒂𝒔𝒕𝒊𝒌𝒂𝒏 𝒔𝒖𝒅𝒂𝒉 𝒎𝒆𝒍𝒂𝒍𝒖𝒊 𝒑𝒆𝒏𝒈𝒆𝒄𝒆𝒌𝒂𝒏 𝒇𝒊𝒔𝒊𝒌 & 𝒇𝒖𝒏𝒈𝒔𝒊 𝒚𝒂 𝒌𝒂𝒌

𝑼𝒏𝒕𝒖𝒌 𝒃𝒂𝒓𝒂𝒏𝒈2 𝒃𝒆𝒔𝒂𝒓 𝒔𝒆𝒑𝒆𝒓𝒕𝒊 𝒎𝒆𝒔𝒊𝒏/𝒕𝒊𝒎𝒃𝒂𝒏𝒈𝒂𝒏 𝒔𝒆𝒃𝒂𝒊𝒌𝒏𝒚𝒂 𝒅𝒊𝒕𝒂𝒎𝒃𝒂𝒉 𝒑𝒂𝒄𝒌𝒊𝒏𝒈 𝒌𝒂𝒚𝒖 𝒂𝒈𝒂𝒓 𝒃𝒂𝒓𝒂𝒏𝒈 𝒔𝒂𝒎𝒑𝒂𝒊 𝒅𝒆𝒏𝒈𝒂𝒏 𝒂𝒎𝒂𝒏 𝒌𝒂𝒓𝒏𝒂 𝒃𝒆𝒓𝒑𝒐𝒕𝒆𝒏𝒔𝒊 𝒑𝒆𝒏𝒚𝒐𝒌, 𝒍𝒆𝒄𝒆𝒕 & 𝒔𝒆𝒍𝒂𝒍𝒖 𝒈𝒖𝒏𝒂𝒌𝒂𝒏 𝒂𝒔𝒖𝒓𝒂𝒏𝒔𝒊

𝒔𝒆𝒕𝒆𝒍𝒂𝒉 𝒃𝒂𝒓𝒂𝒏𝒈 𝒅𝒊𝒕𝒆𝒓𝒊𝒎𝒂 𝒅𝒂𝒏 𝒔𝒆𝒃𝒆𝒍𝒖𝒎 𝒅𝒊𝒃𝒖𝒌𝒂 𝒔𝒆𝒃𝒂𝒊𝒌𝒏𝒚𝒂 𝒅𝒊 𝒗𝒊𝒅𝒆𝒐 𝒖𝒏𝒕𝒖𝒌 𝒃𝒖𝒌𝒕𝒊 𝒔𝒂𝒉 & 𝒌𝒍𝒂𝒊𝒎 𝒃𝒂𝒓𝒂𝒏𝒈 𝒂𝒏𝒅𝒂 𝒋𝒊𝒌𝒂 𝒕𝒆𝒓𝒋𝒂𝒅𝒊 𝒌𝒆𝒓𝒖𝒔𝒂𝒌𝒂𝒏 𝒅𝒍𝒍

𝑩𝒆𝒓𝒊𝒌𝒂𝒏 𝒖𝒍𝒂𝒔𝒂𝒏 𝒑𝒐𝒔𝒊𝒕𝒊𝒇 𝒋𝒊𝒌𝒂 𝒂𝒏𝒅𝒂 𝒑𝒖𝒂𝒔 𝒅𝒆𝒏𝒈𝒂𝒏 𝒑𝒓𝒐𝒅𝒖𝒌2 𝒌𝒂𝒎𝒊 & 𝒇𝒐𝒍𝒍𝒐𝒘 𝒕𝒐𝒌𝒐 𝒌𝒂𝒎𝒊 𝒖𝒏𝒕𝒖𝒌 𝒅𝒂𝒑𝒂𝒕 𝒊𝒏𝒇𝒐 𝒑𝒓𝒐𝒅𝒖𝒌, 𝒅𝒊𝒔𝒌𝒐𝒏 𝒕𝒆𝒓𝒃𝒂𝒓𝒖 𝒅𝒂𝒓𝒊 𝒌𝒂𝒎𝒊, 𝒕𝒆𝒓𝒊𝒎𝒂𝒌𝒂𝒔𝒊𝒉

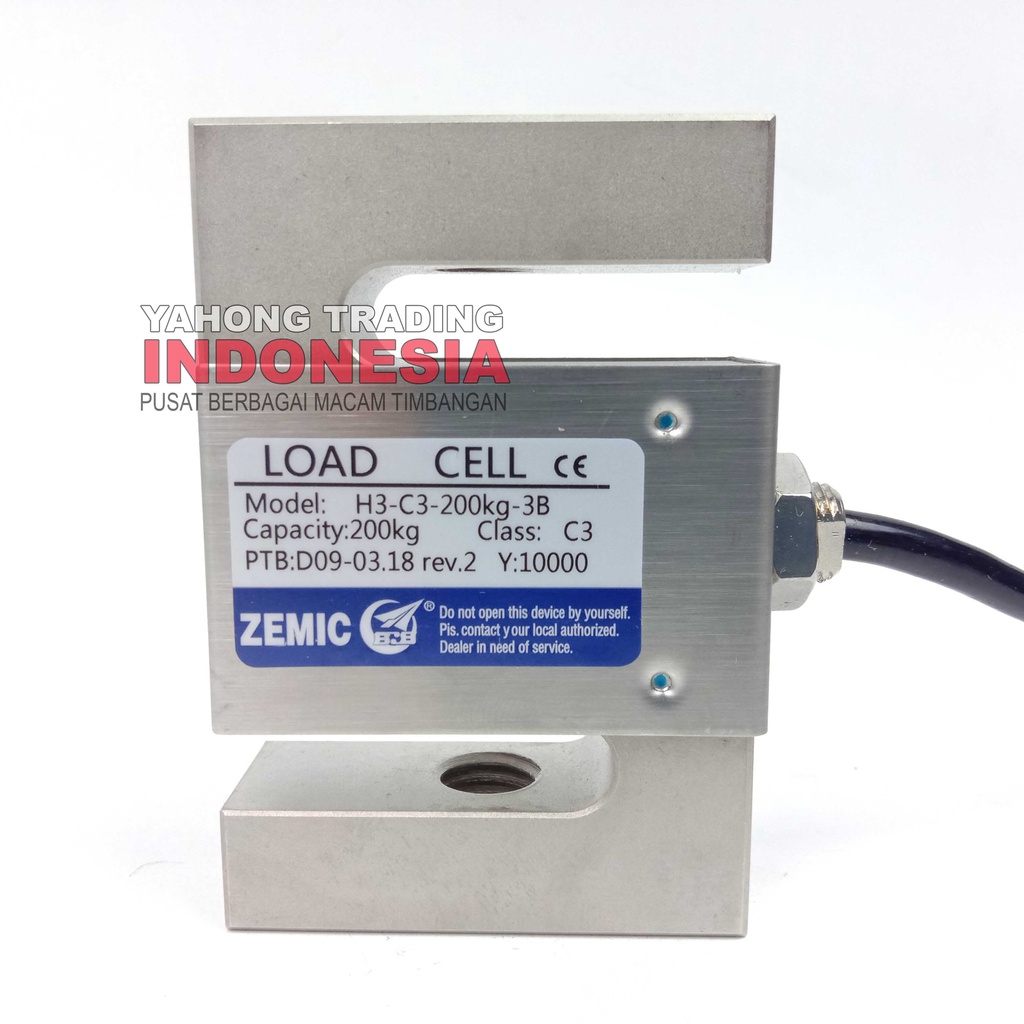

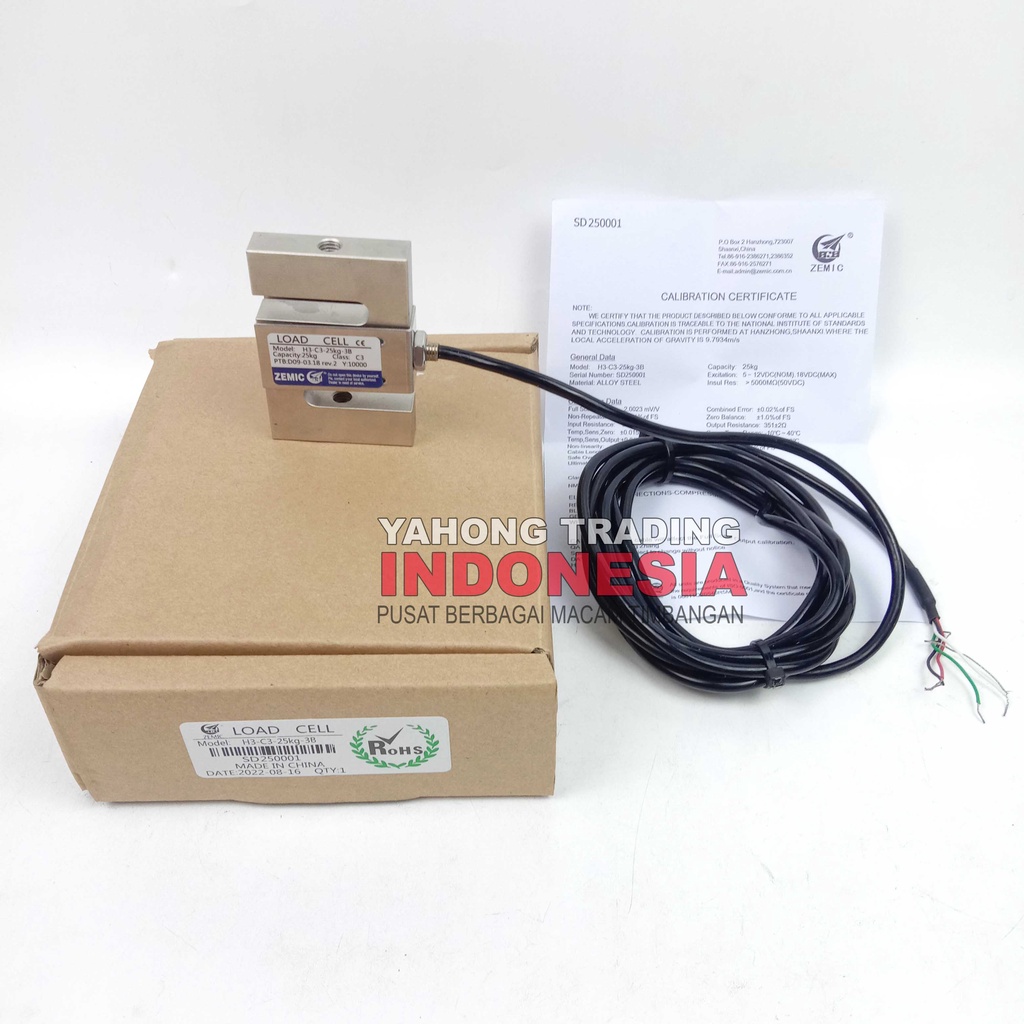

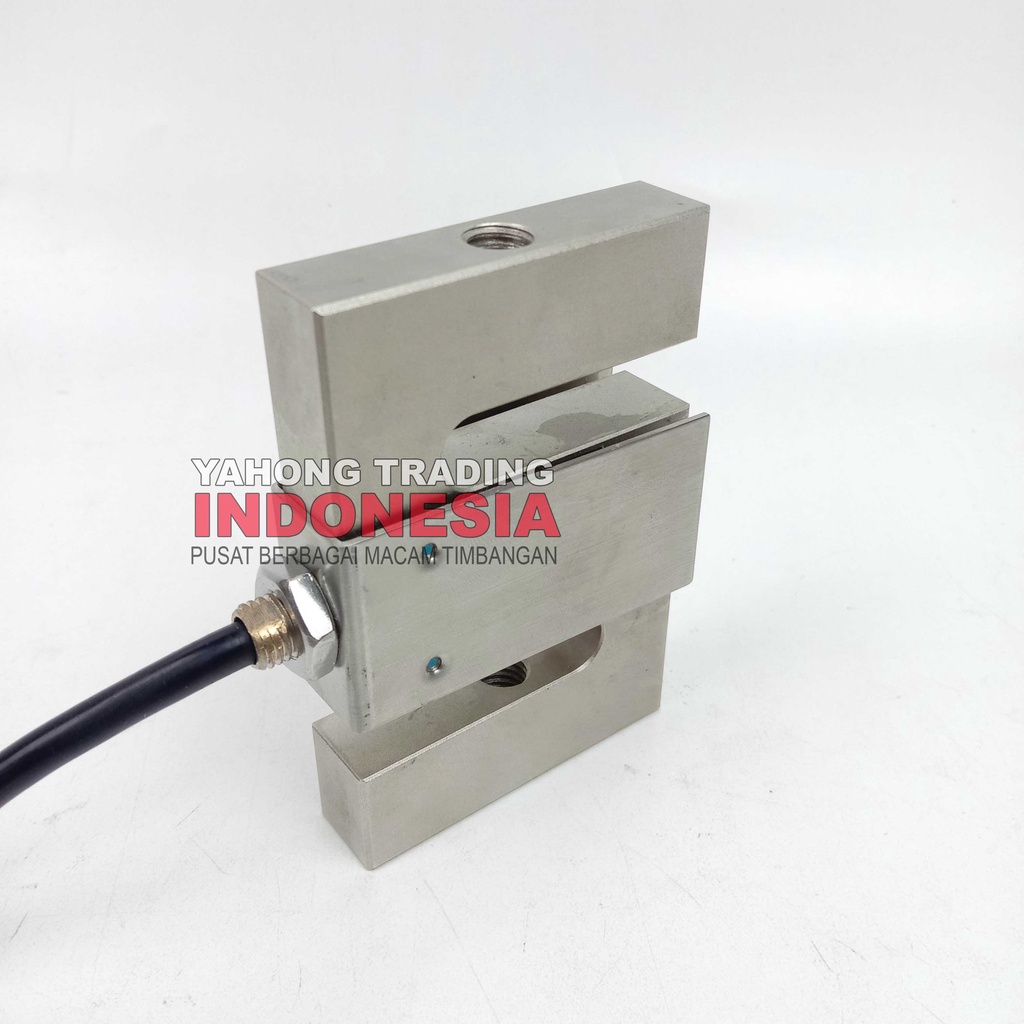

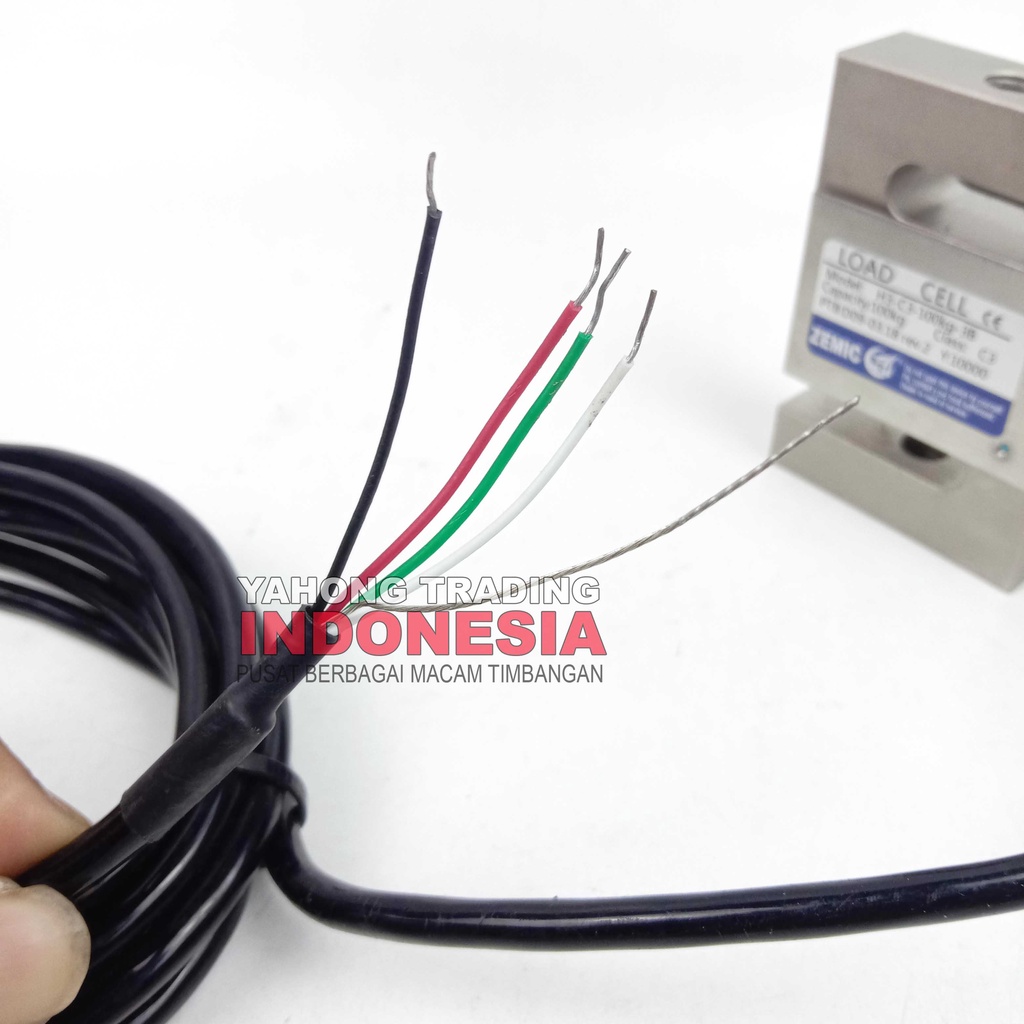

Gambar produk
