Load Cell Scale Sensor 1000 KG Portable S-type High Precision 1 Ton

Detail Load Cell Scale Sensor 1000 KG Portable S-type High Precision 1 Ton

Ready Stok langsung order saja
100% unit BARU
-----
Garansi quality CHECK sebelum kirim
GARANSI toko 1BULAN
-----
Dikirim dari JOGJA
Garansi packing AMAN (GRATIS bublewarp/kardus)

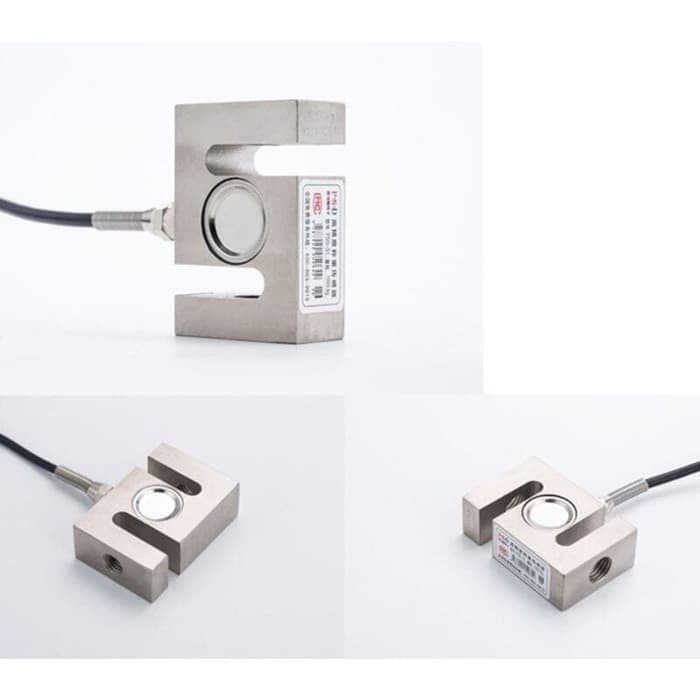

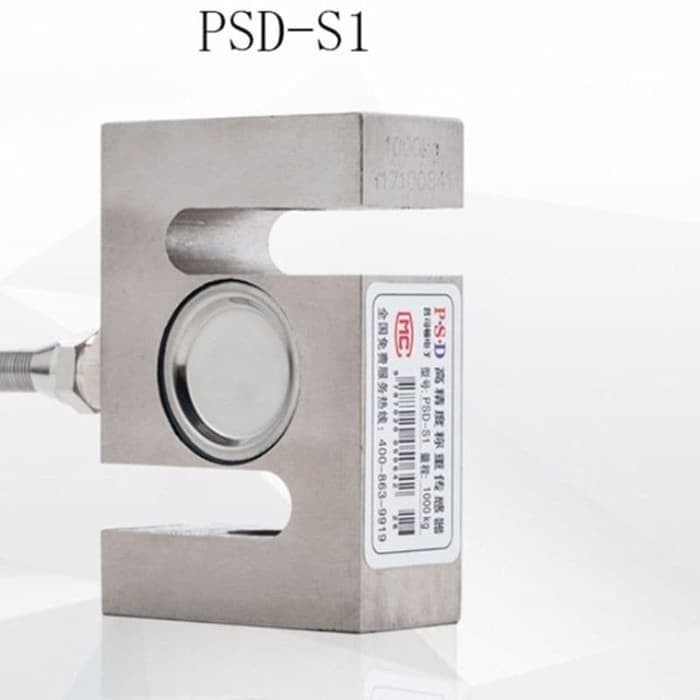

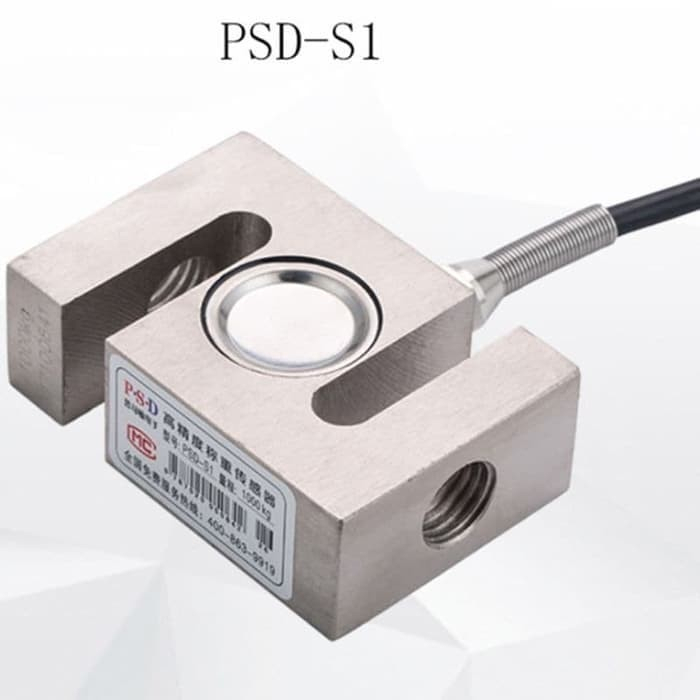

Portable S-type Beam High-Precision Load Cell Scale Sensor 50-1000 KG for Hopper Weight High Pressure Tension Weighing

Specifications:
Material: metal
Type: weighting
Physical properties of materials: conductors
Process: film
Output signal: analog
Protection grade: IP67
Linearity: 0.02(%F.S.)
Delaying: 0.02(%F.S.)
Repeatability: 0.02(%F.S.)
Sensitivity: 2.0mv/v
Drifting: 0.02%F.S
Input impedance: 35010
Output impedance: 3505
Application: Mixing station, batching machine, asphalt station, etc.
Measuring range(Optional):1000kg

Quantity: 1PC
Weight: 680g approx

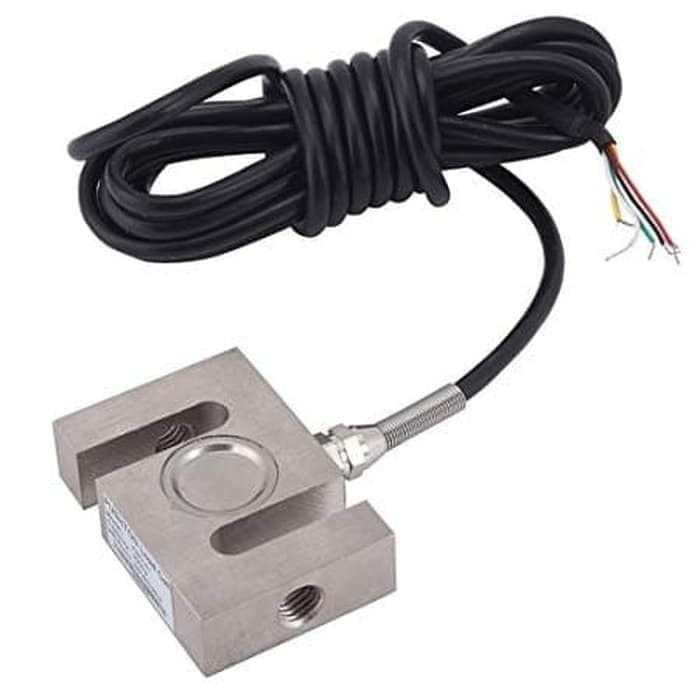

Wire connecting method:
Input: Red wire(+), Black wire(-)
Output: Green wire(+), White wire(-)
Yellow wire(GND)

Package Included:
1 x Weighting Sensor

------
Terimakasih sudah mengunjungi toko kami
Kita tunggu orderannya ya 🤝

Gambar produk
