Boost Converter Regulator LCD Display Step Up Power Supply Module DC8V~60V to 10V~120V 900W 15A

Detail Boost Converter Regulator LCD Display Step Up Power Supply Module DC8V~60V to 10V~120V 900W 15A

8-60V to 10-120V DC Converter High Precise LED Control Boost Converter DIY Voltage Transformer Module Regulator

Technical Parameters
Input voltage (U-IN): DC8V~60V
Input current: 0~15A
Output voltage (U-OUT): 10V~120V
Output current: 0~15A
Conversion efficiency: 85%
Working frequency: 150KHZ
Short circuit protection: 20A fuse (non-self-recovery)
Working temperature: -40℃~85℃
Control method: digital control + LCD screen display
Voltage adjustment display: 0.00V~00.0V~000V
Current adjustment display: 0.00A~00.0A
Output ripple: ≤50mV
Storeable array: 10 groups
Weight: 213g (net weight)
Size: 48mm×100mm×110mm (product)
Packing size: 90mm×110mm×120mm (electrostatic bag + carton packaging)
Weight with packaging: 267g

Package included:
1 * DC Converter 900W Boost Converter

How To Use
1. Start boost
① Manual boosting press and hold the OK button for 10 seconds to enter the interface and select AUTO-OFF as manual boosting. , Select AUTO-ON to automatically start the boost.
② Click OK to start or stop the boost.
2. Set storage
In the setting mode, long press the SET button for 10 seconds to enter the data storage interface, and use the up and down keys to select 10 groups of data from 0 to 9, and press the SET button to save the settings.
3. Retrieve and access the array
In the normal interface, press and hold the SET button for 10 seconds to enter the storage and recall interface. You can select 10 data groups from 0 to 9 through the up and down keys, and press the SET button to confirm the recall

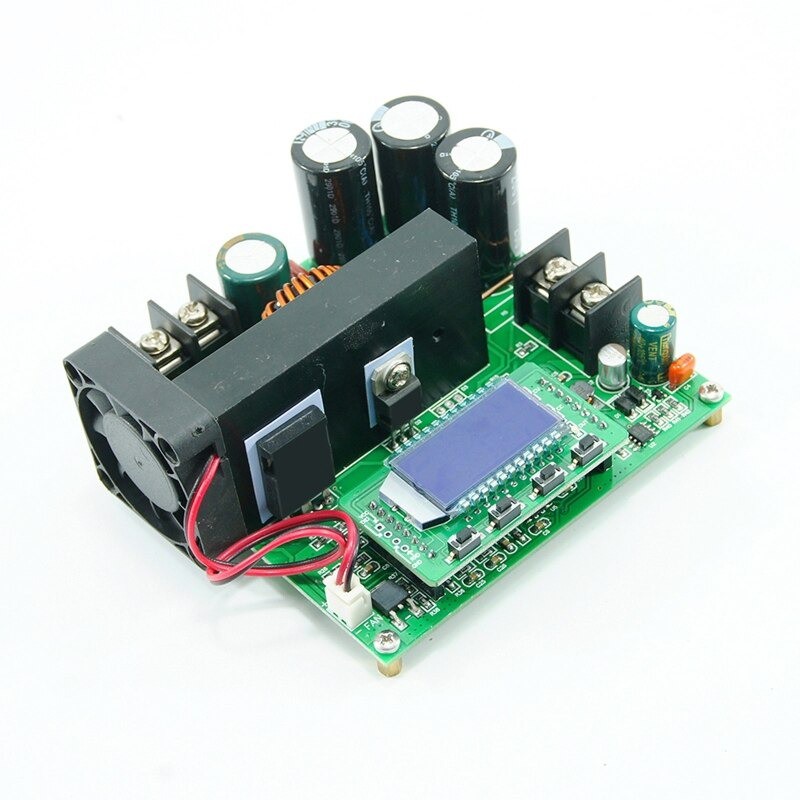

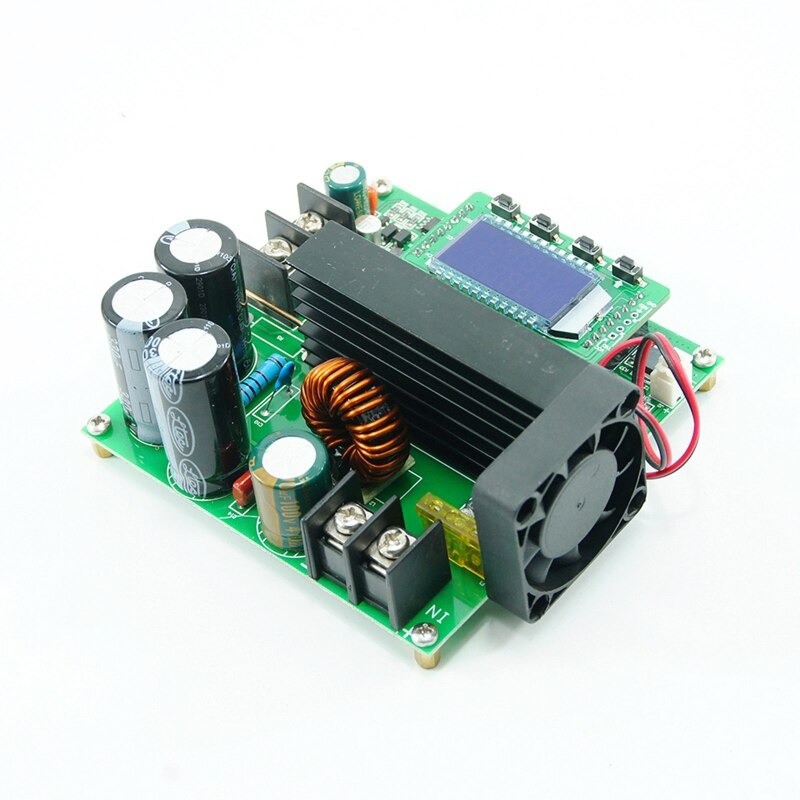

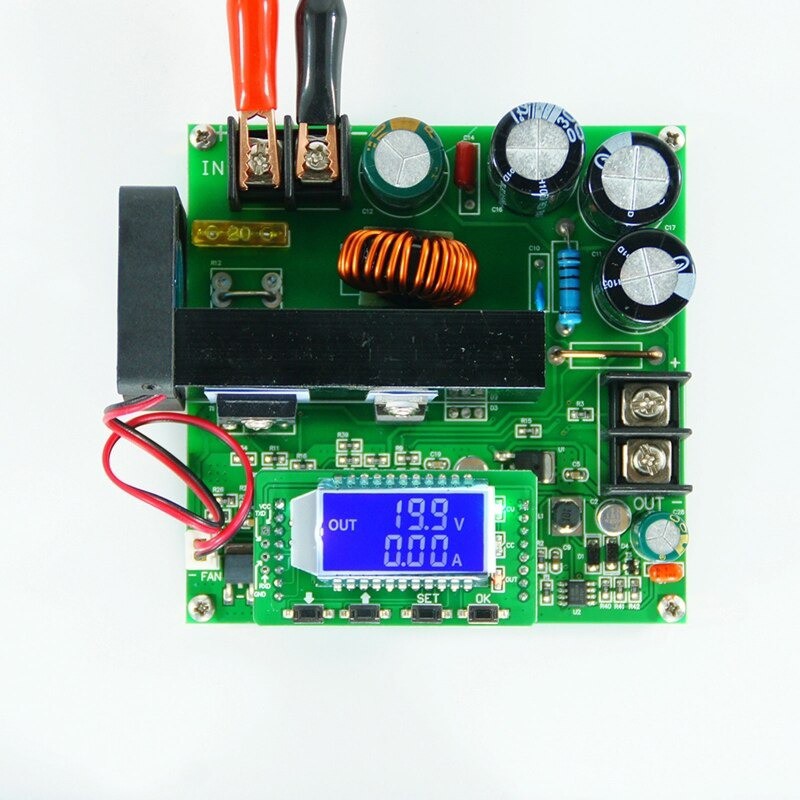

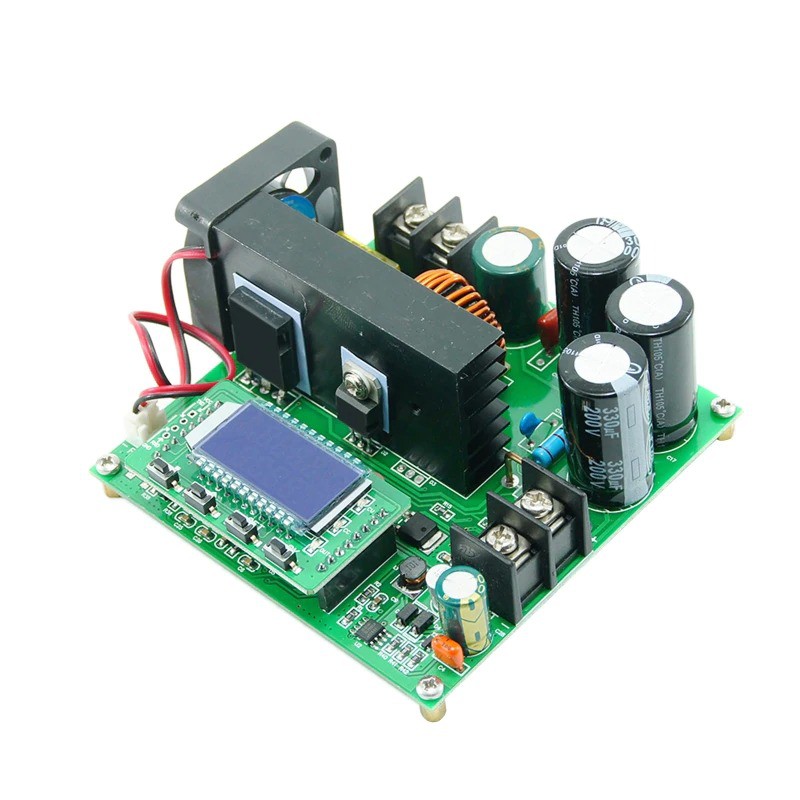

Gambar produk
