LED SMD 3535 3V 1W Backlight TV LCD Cold White 3537 Putih Cool Lumens PER 10PCS

Detail LED SMD 3535 3V 1W Backlight TV LCD Cold White 3537 Putih Cool Lumens PER 10PCS

LED SMD 3535 3V 1W Backlight TV LCD Cold White 3537 Putih Cool Lumens PER 10PCS

Digunakan untuk repair / service Backlight TV LCD LED yang sudah mati / gelap, bisa juga untuk membuat penerangan untuk keperluan lainnya.

Manufacturer : LUMENS
Origin : Korea
Forward Current (IF ): 350mA
Pulse Forward Curren t1 (IFp): 500mA
Reverse Current (IR): 25mA
Reverse Voltage (VR): 5V (5mA)
Power Dissipation (PD): mW
Operatin Tgemperature (Topr): -40 - +85 ° C
Storage Temperature (Tstg): -40 - +100 ° C
Soldering Temperature (Tsld): Reflow Soldering:260 ° C for 10secs
Hand Soldering:350 ° C for 3secs
Junctio Tnemperature (Tj ): 110 ° C
Forward Voltage (VF): 3.15-3.40V (350mA)
Luminous Flux (LM): lm (350mA)
Luminous Intensity ( IV ) : 23-24cd (350mA)
Wavelength (nm) : -nm mA
CIE : x=0.2666 y=0.2291(450mA)
Color Correlated Temperature (CCT):
CRI :
Viewing angle :
Lead Frame Type LED Package: 3.5×3.5×0.8mm L×W×H d=mm

Paket:
10 buah SMD LED 3535 3V 1W Putih

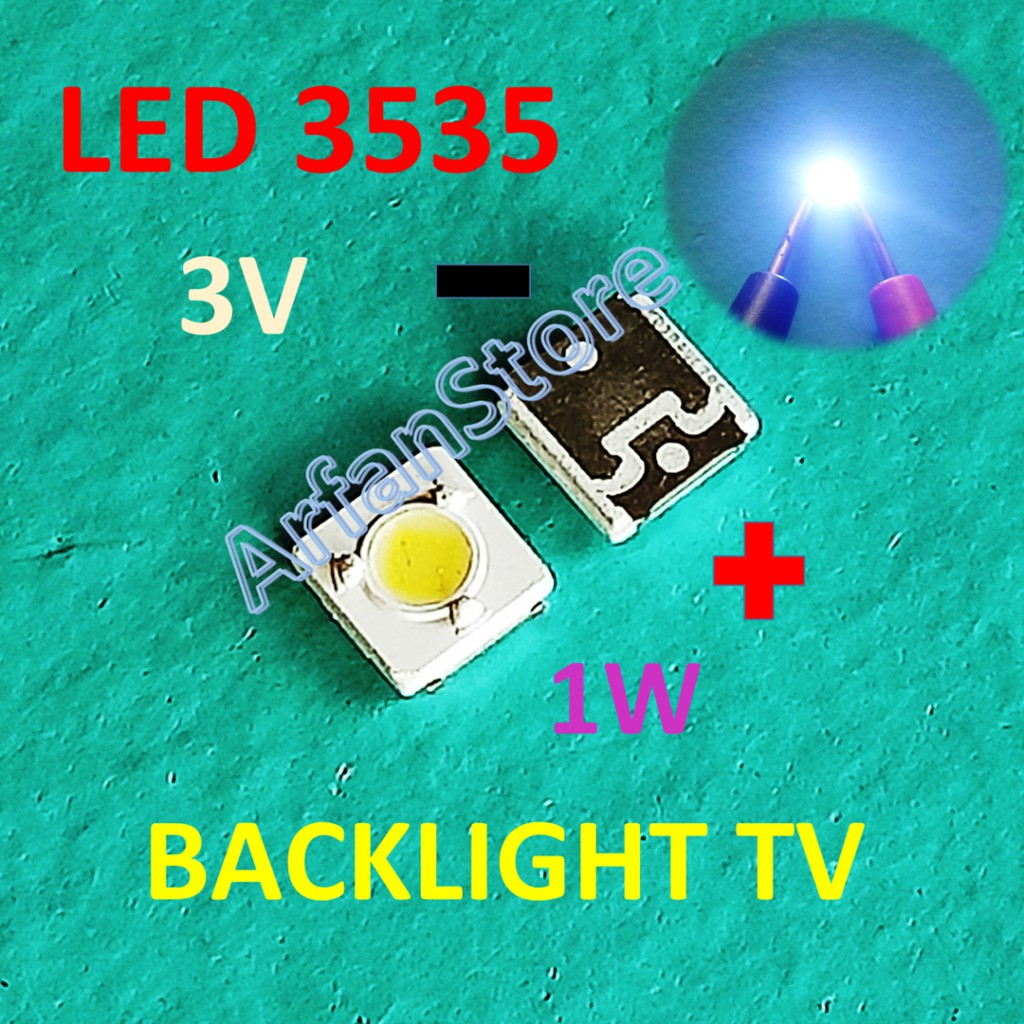

Gambar produk
