REX-C100 SSR Digital Thermostat Temperature PID 400 Derajat Relay 40A

Detail REX-C100 SSR Digital Thermostat Temperature PID 400 Derajat Relay 40A

REX-C100 SSR Digital Thermostat Temperature PID 400 Derajat Relay 40A

Alat yang berfungsi untuk mengontrol atau mengatur suhu sampai dengan 400 derajat celcius. Banyak digunakan sebagai pemanas, pendingin, penetas telur dan sebagainya.

Output alat ini dihubungkan ke relay SSR sebagai switch penghubung dan pemutusnya.

Spesifikasi:
- Measuring accuracy: 0.5%FS
- Cold-end compensation tolerance: 2 (can be modified by software in 0~50 )
- Resolution: 14 bit
- Sampling cycle: 0.5 Sec
- Power : AC 220V 50/60HZ
- Process value (PV),Setting value (SV)
- Output, alarm and self-tuning can be indicated by:LED
- PIN control (including ON/OFF, step-type PID and continuous PID)
- Self-tuning control
- Relay output: contact capacity 250V AC 3A (resistive load)
- Alarm function output: 2 way
- Proportional band (P): 0~full range (ON/OFF control when set to 0)
- Detective temperature range: 0 to 400
- Insulation resistance: >50M ohm(500V DC)
- Insulation resistance : 1500V AC/min
- Insulation resistance : Power Consumption < 10 VA
- Service environment: 0~50
- environment with no corrosive gas 30~85% RH
- Dimensions: 48 x 48 x 110 (mm) 0.2mm
- K Thermocouple Probe Cable Length: 1M
- Sensor diameter:4.5mm
- Temperature rang :0-400
- Internal Insulation: Fiberglass
- External Shielding: Insulated Shielding

Max. 40A SSR
1.Output Current:40A
2.Input Voltage:DC 3-32V
3.Output Voltage:24-380V AC
4.Output Voltage Range:Standard Type

Catatan:

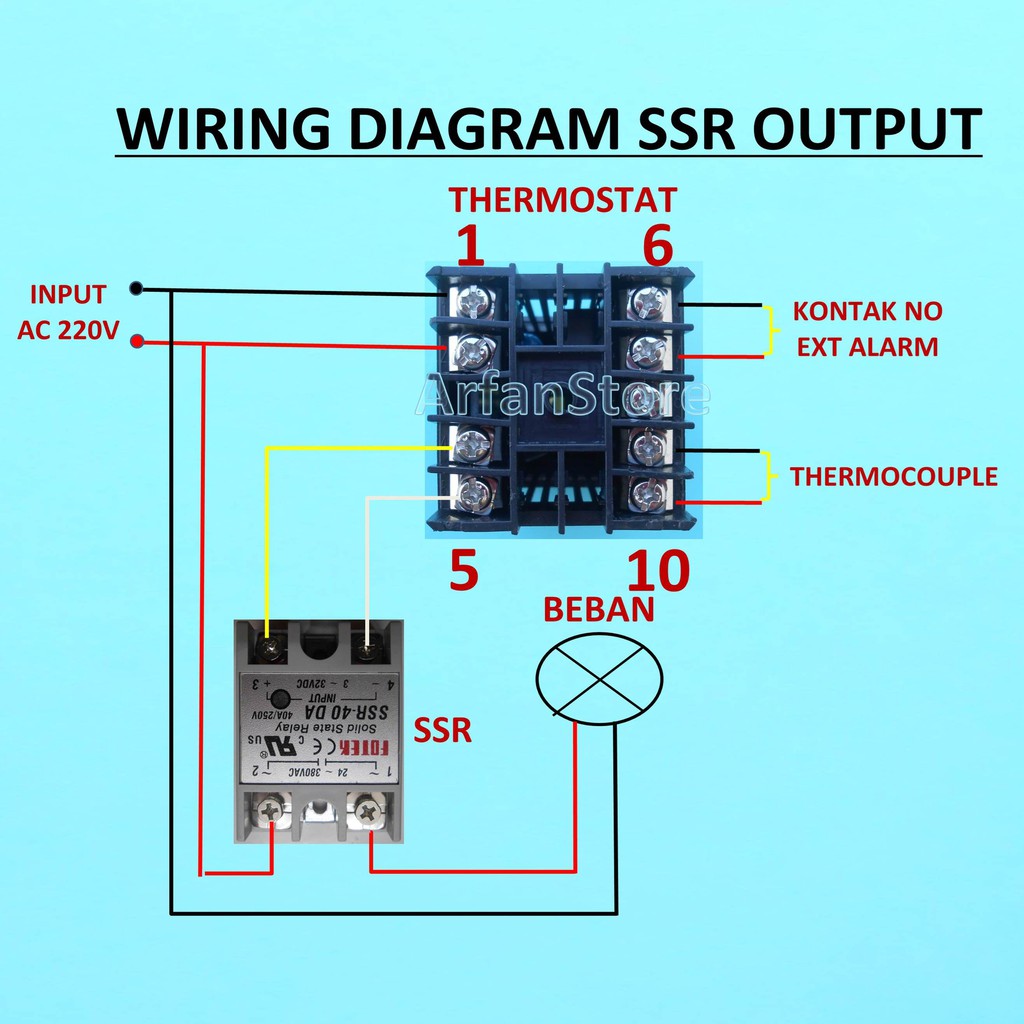

- Pastikan koneksi terminal belakang sesuai dengan wiring di samping
- Input dan Output harus sesuai dengan spesifikasi
- Produk sudah di test sebelum dikirim dan berfungsi normal

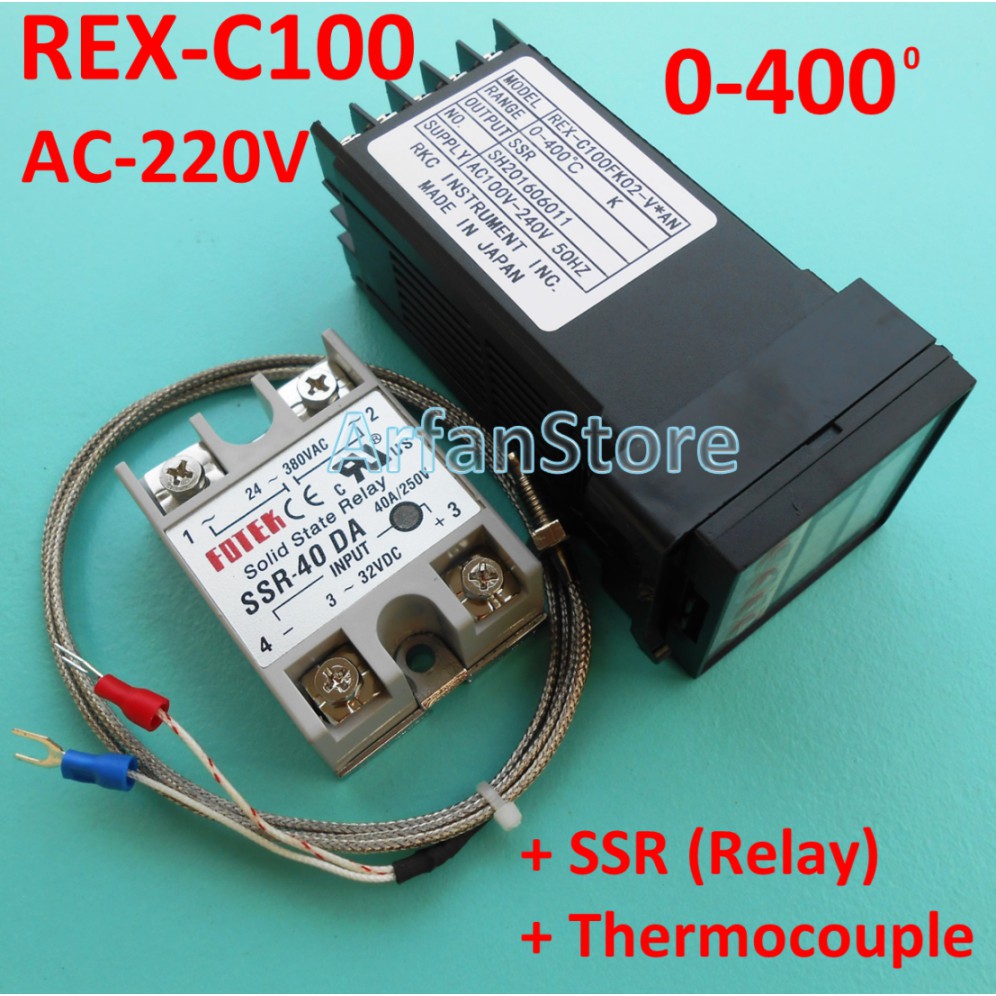

Paket:
1 buah REX-C100 Digital Controller
1 buah K Thermocouple Probe Sensor
1 buah SSR 40A
1 buah manual book

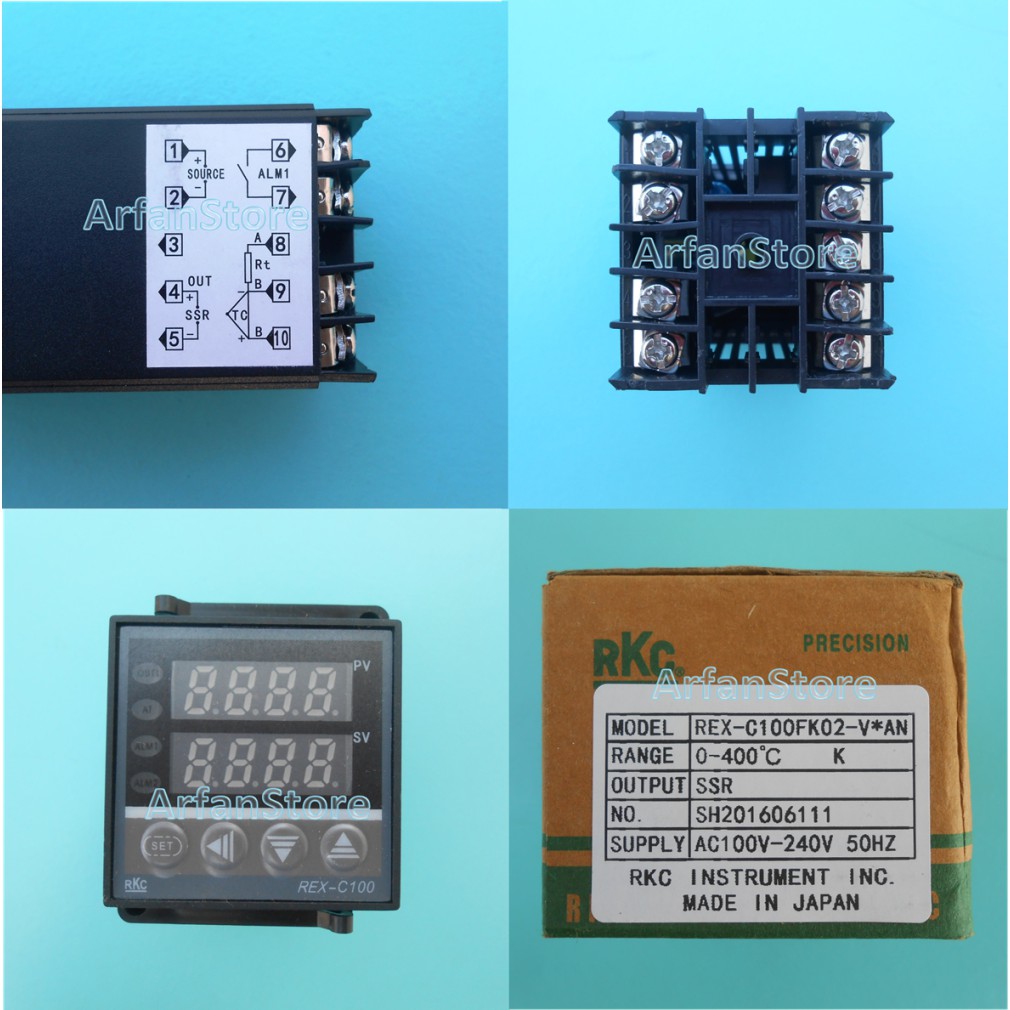

Gambar produk
