Konektor DB9 DB 9 Connector Male Female Socket Adapter RS232 Serial

Elektronik > Elektronik Lainnya > Konektor DB9 DB 9 Connector Male Female Socket Adapter RS232 Serial
  • Pengiriman Ekspres
  • Barang yang diperiksa
  • Bayar di tempat berlaku
  • Kualitas, Prestise
  • Pengembalian produk
  • Dukung pembuatan faktur

Detail Konektor DB9 DB 9 Connector Male Female Socket Adapter RS232 Serial

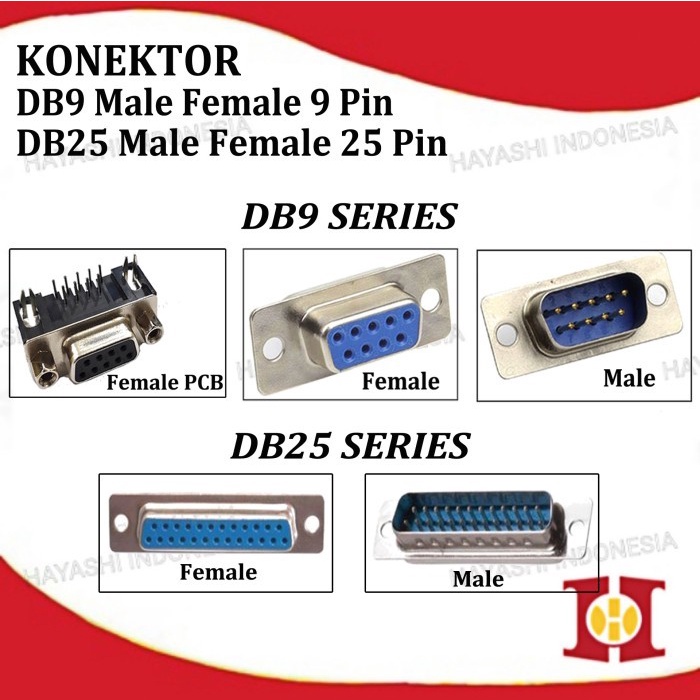

Tersedia Varian Type :
- DB25 Male
- DB25 Female
- DB9 Female PCB
- DB9 Male / Cowok Lurus
- DB9 Female / Cewek Lurus
- DB9 Cover Kits
(Silahkan untuk memilih varian terlebih dahulu)

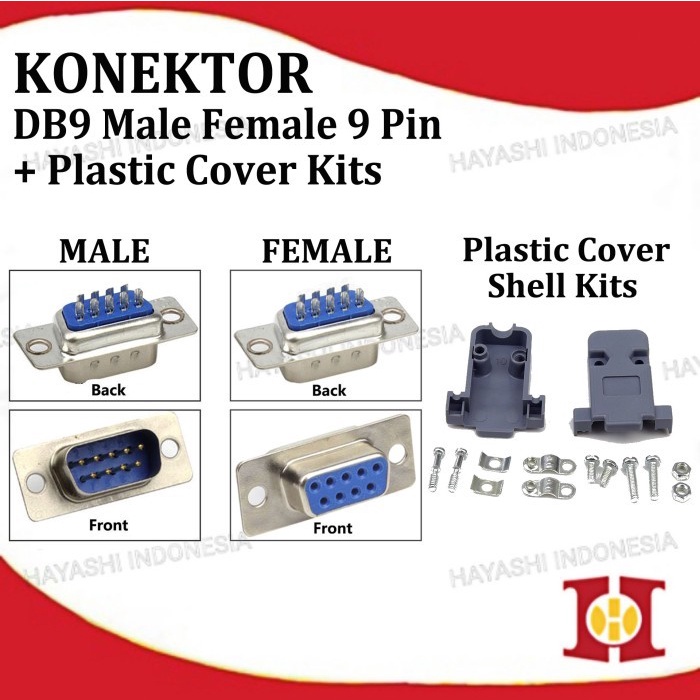

Konektor DB9 pin Male Female dan Cover Plastik berwarna Abu-abu dan baut.
Berfungsi untuk membuat kabel serial data buat PC komputer ke PC komputer atau ke Mesin printing.
Bisa juga untuk mengantikan kabel serial data yang rusak.
umumnya connector DB9 pin ini dipakai untuk dijadikan kabel buat transfer data".

* Specifications:

- Product Name: DB9 / RS232 serial connector
- Shell Type: Plastic Shell
- Material: Plastic
- Plug Type: Puching needles
- Rated Current: 3A
- Rated Voltage: 300V (AC)
- Insulation Resistance (DC 500V): Above 1000Mohm
- Contact Resistance: Less than 50mohm
- Working Temperature: -40 to 100 degrees
- Application: For RS232 / 485 / 422 / COM and other serial communication interface, for PLC touch screen communication converters / Compilers / LED / Access control and other communication connectors.

** INFO PRODUK **

1. DB25 Connector D-Sub Serial Port Male - Female

- 25 Pin D-Sub Connector
- Used to terminate multi-conductor data and video cables
- Sold in time saving, cost saving multi pack trays
- Solder and Crimp versions are available
- Perfect for high volume cable production
- Use For :
* Serial data transmission
* Data networks
* Instrument control
* Device management

2. DB9 FEMALE PCB Mount Connector D-Sub Serial Port

- Model Number : DB9 9 Pin
- Right Angle Pins
- RS232 Serial Port Connection
- Used On PCB
- Application : Audio & Video, Lighting
- Gender : Female
- Type:VGA

3. DB9 MALE LURUS
Type: Solder Type
Body Orientation: Lurus
Gender: Male
Pins: 9 Pin
Rows: 2 Rows

4. DB9 FEMALE LURUS
Type: Solder Type
Body Orientation: Lurus
Gender: Female
Pins: 9 Pin
Rows: 2 Rows

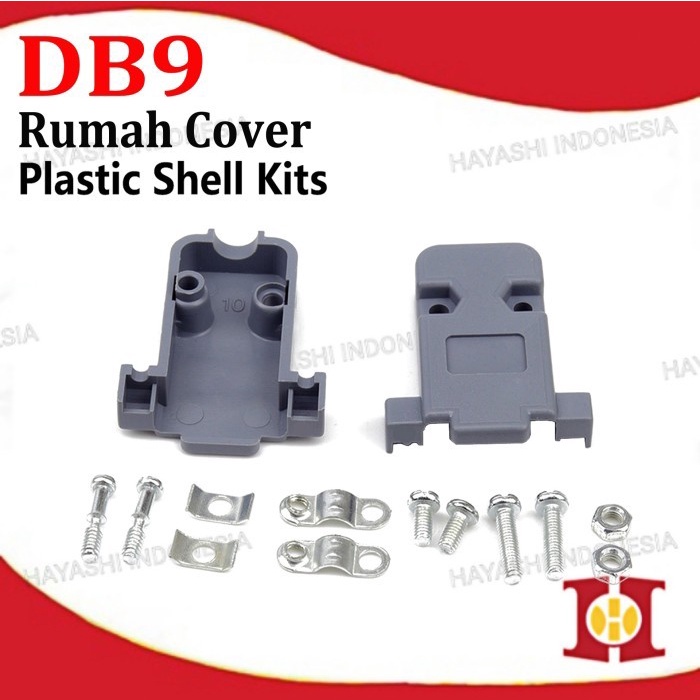

5. DB9 Cover Kits
Kelengkapan:
2 plastik cover
2 mur dan baut untuk cover
2 penjepit kabel
2 mur dan baut untuk penjepit kabel
2 mur untuk DB9 holder nya.
