1. 16 BIT GPIO: Industrial come with 2 x 18PIN phoenix terminal GPIO interfaces, supporting 16 inputs and 16 outputs
2. OPTOCOUPLER ISOLATION FUNCTION: Optocoupler isolation circuit, so that there is no direct electrical connection between the two isolated circuits, preventing interference caused by electrical connections, especially between low voltage control circuits and external high voltage circuits
3. SUPPORT 4 WAY POE: 5 x for Intel Gigabit Ethernet ports, support 4 way 802.3af standard POE network ports. POE (Power Over Ethernet) refers to the transmission of data signals for some IP based terminals (such as IP telephones, LAN access points AP, network cameras, etc.) without making any changes to the existing Ethernet .5 cabling infrastructure. At the same time, can also provide DC power supply technology for such equipment
4. SAFE AND EFFICIENT: POE technology can ensure the normal operation of the existing network while ensuring the safety of the existing structured cabling, providing efficiency and cost saving

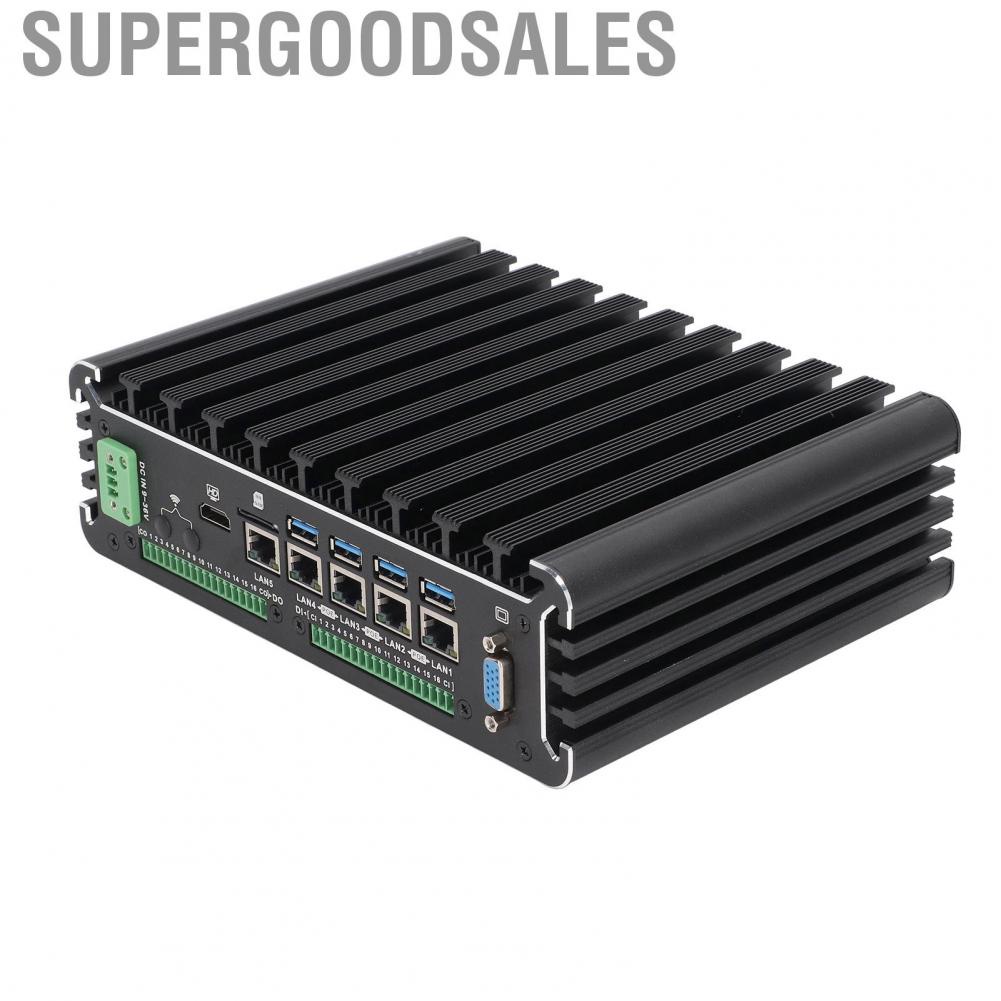

5. NO FAN, NO NOISE: The whole machine has no fan design, all aluminum chassis and heat dissipation dissipate heat, the heat dissipation effect is more outstanding, and also dustproof, shockproof, electromagnetic and interference resistant
6. QUALITY ASSURANCE: Before leaving the factory, each machine will undergo a strict high temperature aging test for more than 24 hours to ensure that each machine is qualified

Specification:
Item Type: Industrial
Processor: Onboard for Intel Celeron 3855U (dual core, dual thread, clocked at 1.6 GHz)
Storage: 4G
Memory: 64G
CPU Architecture: For Skylake U
BIOS: AMI EFI BIOS
Display : Integrated for Intel HD Graphics 510 520 core graphics card
Display Interface: 1 x VGA display interface, 1 x High Definition Multimedia Interface high definition display interface

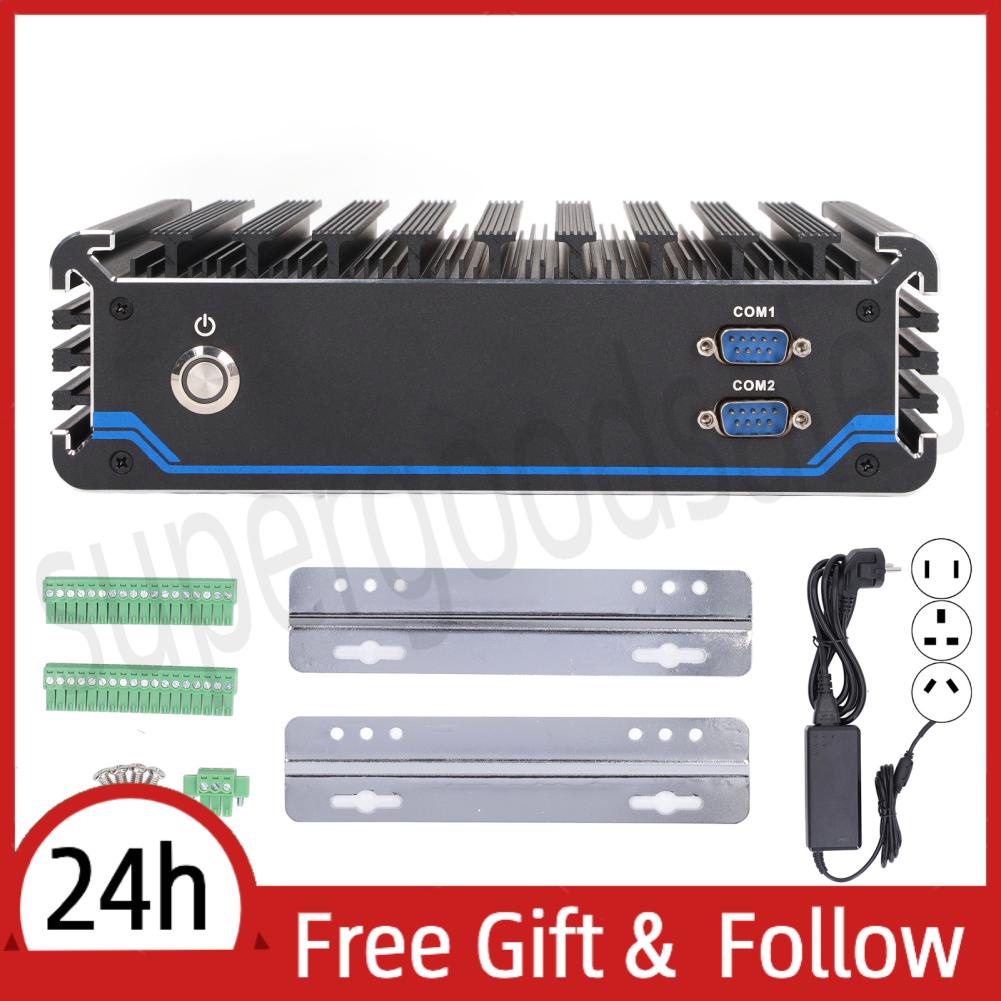

Front Panel I O Ports: 2 x COM ports, 1 x power switch

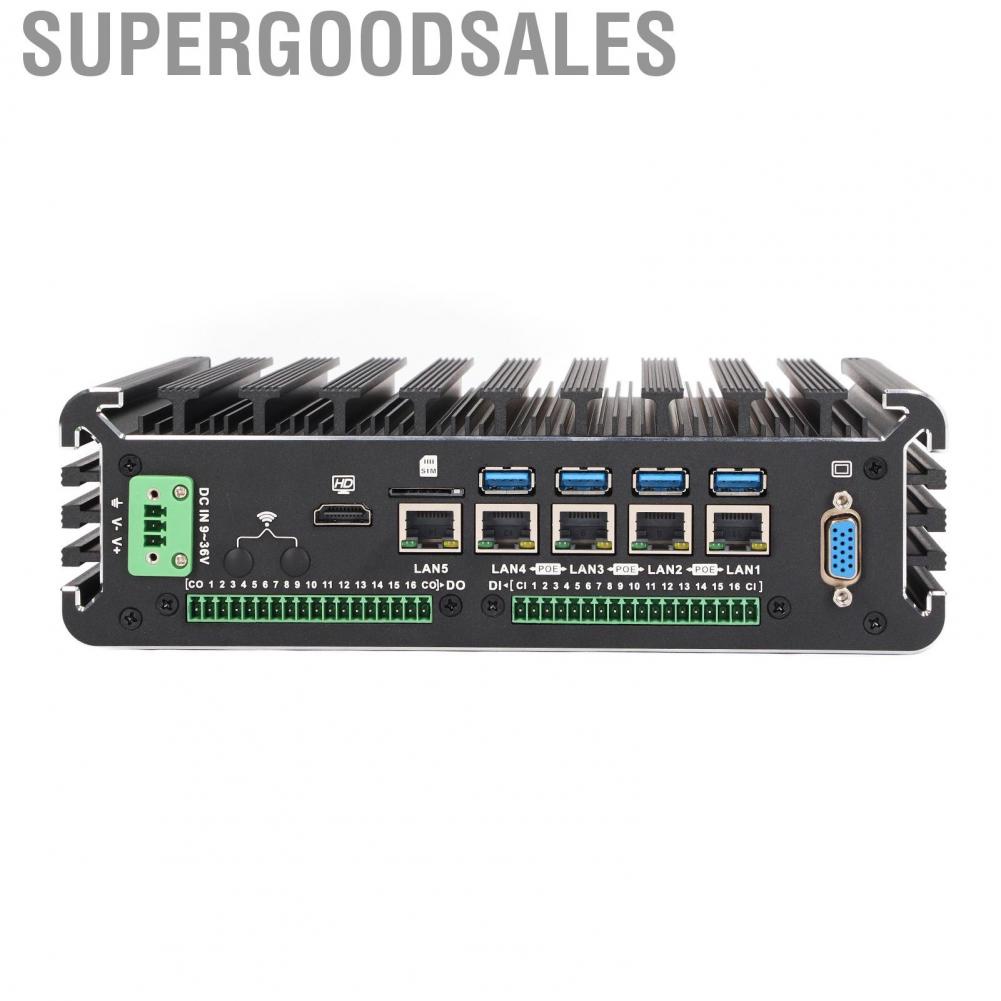

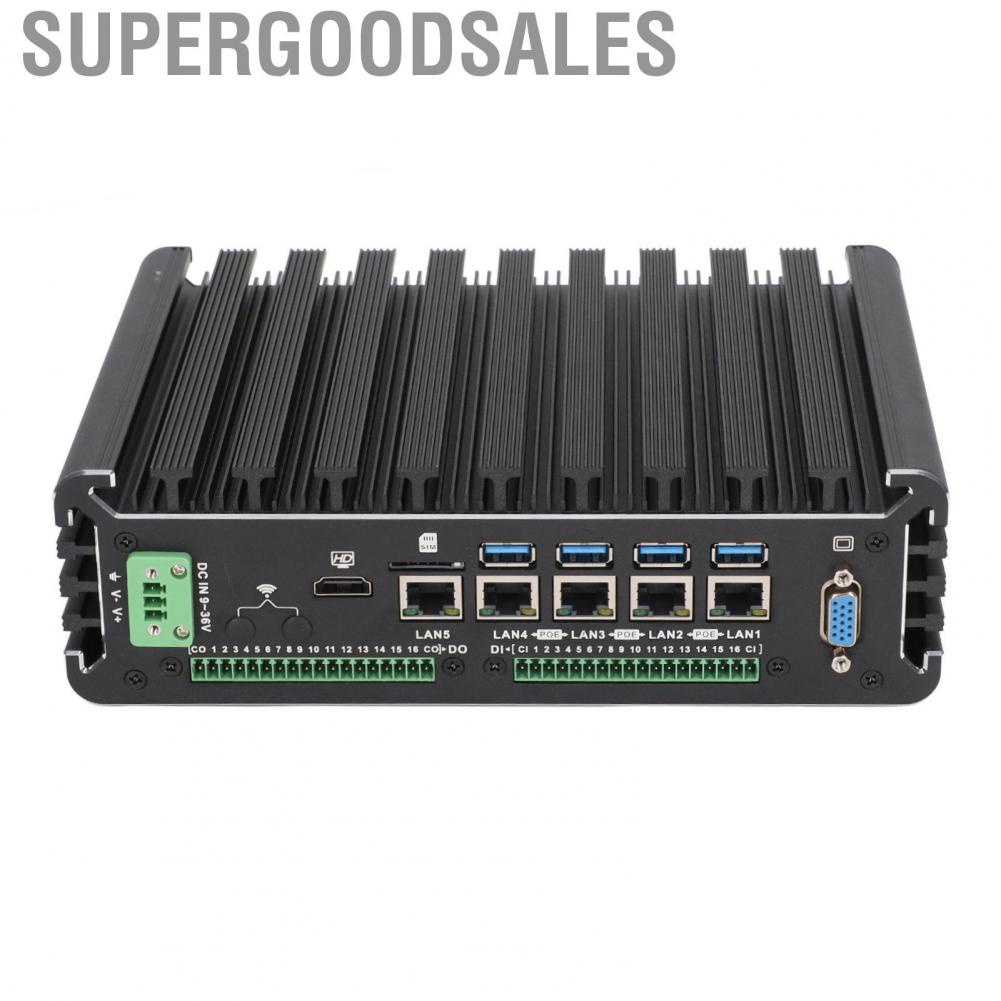

Rear Panel I O Ports: 4 x USB3.0 ports, 1 x VGA port, 1 x High Definition Multimedia Interface port, 1 x 2 PIN power supply Phoenix terminal, 5 x for Intel Gigabit Ethernet ports, 2 x 18 PIN Phoenix terminal GPIO ports (with optocoupler isolation, support 9~36V wide voltage)
Expansion Interface: Support 1 x MINI PCIE slot (optional WIFI, 3G, 4G), with SIM card holder, support 1 x MINI PCIE slot (support for MSATA)
Network Interface: 5 x for Intel i211 AT Gigabit Ethernet interfaces (support 4 way 802.3af standard POE network ports)
Storage Interface: 1 x for MSATA slot, 1 x 2.5in hard disk slot
Product Input Voltage: Support DC 9~36V wide voltage input
Other Functions: Power on, timed boot, LAN wake up, PXE boot, watchdog (level 0~255)
Operating Temperature: -20℃ ~ +60℃ (industrial SSD), air
