HT DUALBAND VOXTER UV B5 MURAH / HANDY TALKY DUALBAND UV B5 VOXTER

Detail HT DUALBAND VOXTER UV B5 MURAH / HANDY TALKY DUALBAND UV B5 VOXTER

SPESIFIKASI :

Features:
Upto 99 Channel
Emergency Call/Alarm function
Commercial FM Radio
Dual Display/ Dualband/ Dual Standby
DTMF encoding
Incorporates 104 codes "DCS" and 50 privacy codes "CTCSS" programmable
CTCSS and DCS setting in different MENUs
Transmitter transmission (TOT)
Frequency step (kHz)
Battery saving function
VOX (Voice operated transmission)
BCL (Busy channel lockout)
Low battery warning
Channel mode display (Name, Frequency, Channel)
DTMF tone of transmitting code
Scan resume method (TO/CO/SE)
PTT-ID (Press or release the PTT to transmit code; Press and release the PTT to transmit code)
Reverse function
PC Programming

Spesifications:
General
Frequency range
65MHz-108MHz (Only commercial FM radio reception)
VHF: 136MHz-174MHz (Rx/Tx)
UHF: 400MHz-470MHz (Rx/Tx)
Memory Channels Up to 99 channel
Frequency stability 2.5ppm
Frequency step 5kHz/6.25kHz/12.5kHz/20kHz/25kHz
Antenna impedance 50
Operating temperature -20C to +60C
Supply voltage Rechargeable Lithium-Ion 7.4V/2000 mAh
Mode of operation Simplex or semi-duplex
Duty cycle 03/03/54 min. (Rx/Tx/Standby)

Transmitter
RF power 5W/1W
Type of modulation F3E
Maximum deviation +5 kHz/+2.5 kHz (W/N)
Spuirious emissions 7.5uW
Ajacent channel power -65dB/-60dB
Receiver
Receiver sensitivity 0,2 V(at 12 dB SINAD)
Intermodulation 65dB
Audio output 1 W
Ajacent channel selectivity 65dB
Spuirious response 65dB
Receiving current 380mA

Garansi 1 Tahun

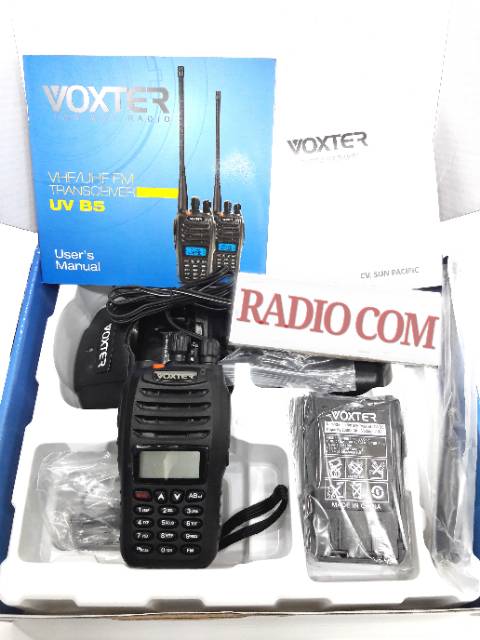

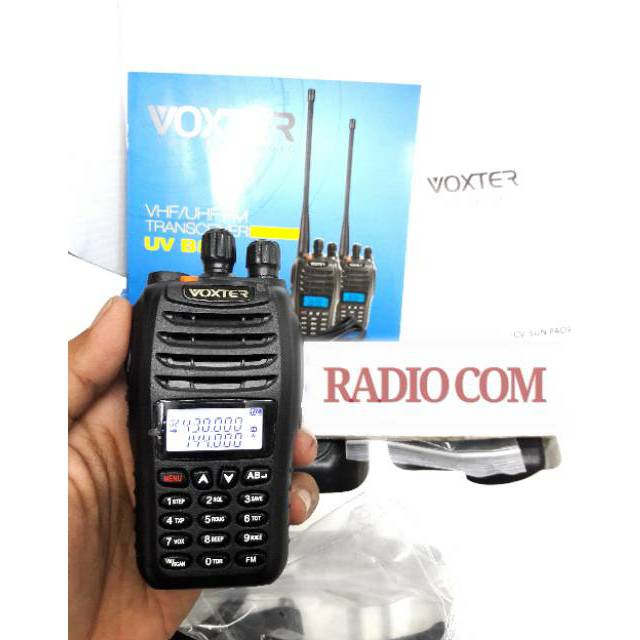

Gambar produk
