HSGQ X111W 300Mbps XPON ONU with VOIP

Detail HSGQ X111W 300Mbps XPON ONU with VOIP

VIDEO PRODUK :
youtube.com/watch?v=QciSaOdTjok

Module Parameters
User interface 1 *10/100M+1*10/100/1000M RJ45 port; 1*POTS, 2.4G WiFi
PON Transmission speed :
GPON: upstream 1.25Gbps /downstream 2.5Gbps
EPON: upstream 1.25Gbps /downstream 1.25Gbps
Network coverage radius: 20KM
Optical receive sensitivity:-28dBm
Continuous light power: 0.5dBm~+5dBm
Security: ONU authentication mechanism
Ethernet 1*10/100/1000Mauto-negotiation
Full/half duplex mode
RJ45 connector
Auto MDI/MDI-X
100m distance
Capability Support NAT
Support PPPOE/DHCP/Static IP/Bridge WAN
QOS Backpressure flow control(half-duplex)
IEEE 802.3x flow control(full-duplex)
Prevent Head Of Line
IEEE 802.1p, CoS
WR,SP and FIFO queue scheduling algorithm
Port rate limit
Safety IEEE 802.1x, access control based upon Port; support local and remote RADIUS.
CHAP,EAP certification;
Storm control, port protection,
Management Various management modes such as Web, TELNET
Debug function.
Size 107mm(L) 85mm(W) 25mm(H)
Environment Operating temperature:0?~60?
Operating humidity:10%~85% non-condensing
Storage temperature:-40?~80?
Storage humidity:5%~95% non-condensing
Power supply 110~240VAC 12V/0.5A DC
power interface size:2.1mm/5.5mm
Power ~2W
Consumption

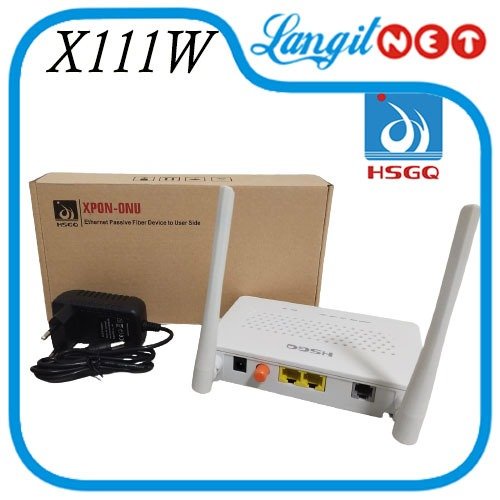

Gambar produk
