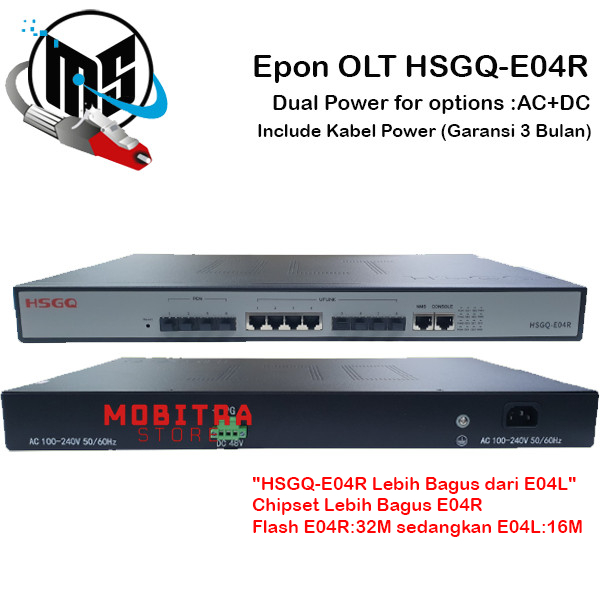

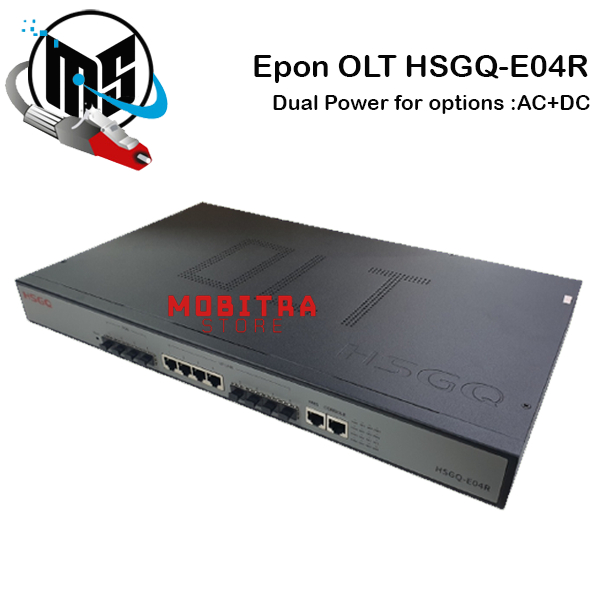

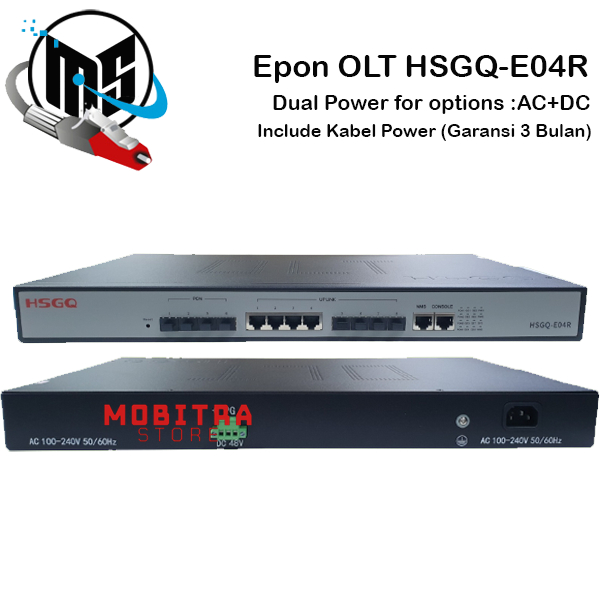

HSGQ-E04R | OLT EPON 4 PON 1G Uplink AC + DC

Detail HSGQ-E04R | OLT EPON 4 PON 1G Uplink AC + DC

Deskripsi : HSGQ-E04R | OLT EPON 4 PON 1G Uplink AC + DC Realtek Chipset
"Tanpa Video Unboxing yang Real, Kami TIDAK Menerima Komplain"

- GARANSI 3 BULAN

Varian :
SFP Epon 7 dBi & 9 dBi
Tanpa SFP = tidak dapat SFP ( walaupun pilih 7/9 dB ) tetep tidak dapat SFP

Model HSGQ-E04R
DDR 512M
FLASH 32M
Size (L*W*H)
Product size:442mm×260mm×44mm
Package size:520mm×372mm×87mm
Weight <5kg
Uplink
QTY: 8
Copper: 4*10/100/1000M auto-negotiable, RJ45
SFP: 4 Uplike SFP slots
PON
QTY: 4
PhysicalInterface: 4 PON SFP slots
Optical module Type: 1000BASE-PX20+/PX20++/PX20+++
Max splitting ratio: 1:64
Management Ports CONSOLE port/NMS port
Power Input AC: 100V～240V 47/63Hz
PON function
Support auto register
Blacklist and whitelist onu
DBA configure
P2P
ONU authorization
Temperature -10℃~60℃
Humidity 5%~95%
Maintenance
Telnet remote maintenance
Layer 2/3 function
VLAN,QinQ,link aggregation, broadcast strom control
Support 4094 VLAN;performance statistic
16K MAC address;mac address management
Port mirror
Support RSTP and MSTP
Support IGMP Snooping/proxy
Support 512 router hosts
Support 64 router subnets
User management
Port isolation
ACL access control based on data stream
QoS based on port, VID, TOS and MAC address;
Encrytion of PON port transmitting data
Support 802.1X authentication
Configuration and Management
CLI,WEB,SNMP/NMS
SSHv1/v2
Software and bootrom upgrade by TFTP and FTP
Record and download log
Chinese/English command prompt
Ping
Debug diagnosis
User management;
Alarm management.
Support standard IEEE 802.3ah EPON
IEEE802.3(10Base-T)
IEEE802.3u(100Base-TX)
IEEE802.3z (1000BASE-X)
IEEE802.3ab (1000Base-T)
IEEE802.1Q(VLAN)
IEEEE802.1d(STP)
IEEEE802.1W(RSTP)
IEEE802.1p(COS)
IEEE802.1x(Port Control)
IEEE802.3x (flow-control)

Gambar produk
