FO - HSGQ-E04R EPON OLT 4 PON 1G FTTH EPON OLT 4 PON

Komputer & Aksesoris > Komponen Network > Modem & Router Wireless > FO - HSGQ-E04R EPON OLT 4 PON 1G FTTH EPON OLT 4 PON

Tersedia

Periksa harganya...

Lihat tempat menjual

Toko:TokoNetworking Official StoreLihat semua produk Komputer & Aksesoris oleh TokoNetworking Official Store

Pengiriman Ekspres
Barang yang diperiksa
Bayar di tempat berlaku
Kualitas, Prestise
Pengembalian produk
Dukung pembuatan faktur

Deskripsi Produk Spesifikasi

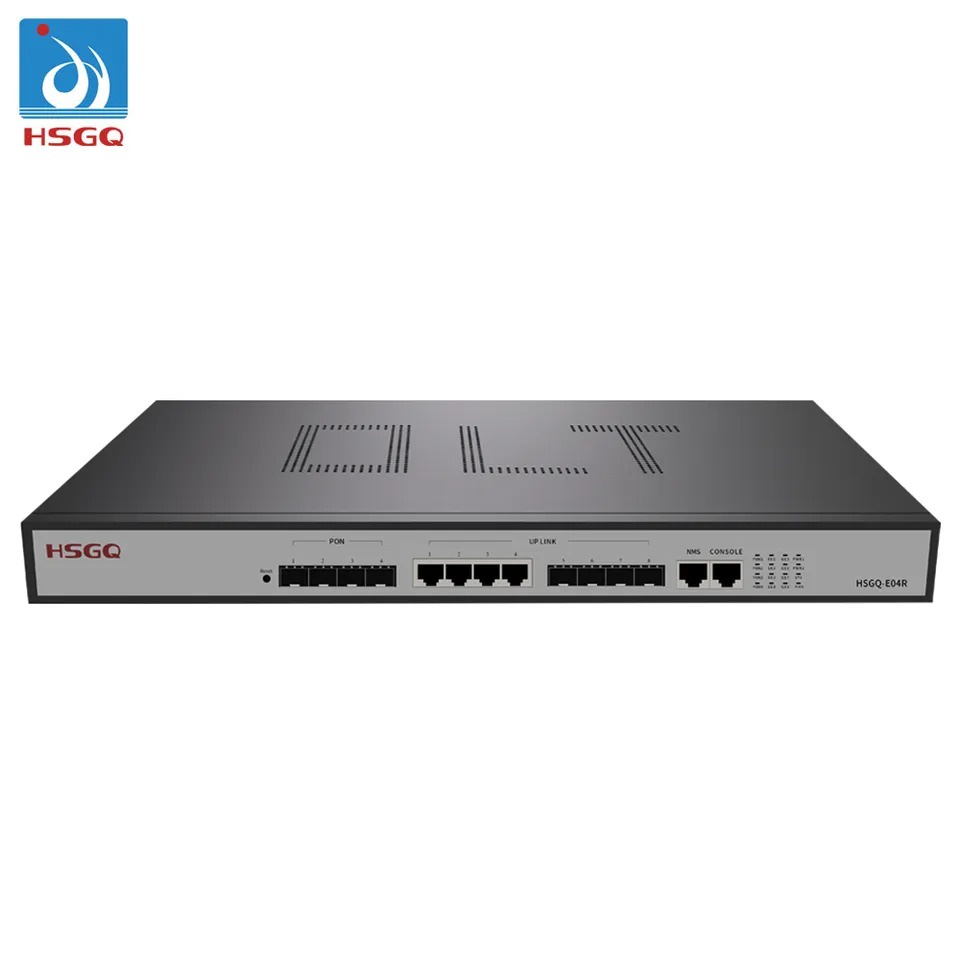

Detail FO - HSGQ-E04R EPON OLT 4 PON 1G FTTH EPON OLT 4 PON

Model HSGQ-E04R
DDR 512M
FLASH 16M
Size (L*W*H)
Product size:440mm×185mm×44mm
Package size:520mm×372mm×87mm
Weight ;5kg
Uplink QTY 8
Copper
4*10/100/1000M auto-negotiable,RJ45
SFP
4 SFP slots
PON QTY 4
PhysicalInterface
4 SFP slots
Connector Type
1000BASE-PX20+/PX20++/PX20+++
Max splitting ratio 1:64
Management Ports
CONSOLE port/NMS PORT
Power Input
AC: 100V～240V AC 47/63Hz
Support standard
IEEE 802.3ah EPON
IEEE802.3(10Base-T)
IEEE802.3u(100Base-TX)
IEEE802.3z（1000BASE-X）
IEEE802.3ab（1000Base-T）
IEEE802.1Q(VLAN)
IEEEE802.1d(STP)
IEEEE802.1W(RSTP)
IEEE802.1p(COS)
IEEE802.1x(Port Control)
IEEE802.3x（flow-control）
Each OLT interface supports at most 64 ONU；
Transmission distance of each OLT is at most 20Km
PON fuction

Isi paket
HSGQ-E04R
Kabel Power
Kabel USB to LAN
Bracket dan skrup
