FO - Mini OTDR GT4000 Optical Fiber Tester

Detail FO - Mini OTDR GT4000 Optical Fiber Tester

GT4000 MINI Handhold touch screen OTDR

Distance range: Up 100KM

Sampling resolution: 0.2m minimum

Sampling point: 64,000 points

Linearity: =0.05dB/dB

Loss threshold: 0.01dB

Loss resolution: 0.001dB

Range resolution: 0.01m

Distance accuracy: +(0.5+testdistanceX3X
10+samplingesolution)edudingrefractiveinderor)

data storage: More than 80,000 test curves

Red light source: 10mW, CW/2Hz

Data interface: 2 USB ports (Type AX 1, Micro usbX 1), SD card

monitor: 4.3 inch TFT-LCD (standard capacitive touch screen)

battery: 3.7V/5200mAh

temperature: Working temperature: -10°C~+55°C, storage temperature: -20°C~ +80°C

humidity: =95% (no condensation)

size: 175X 105X 45mm .

weight: 0.56kg (including battery)

Optical power meter: Type A: -10dBm-~-70dBm, Type B: +26dBm~- 50dBm

Network cable test terminal: Support network cable sequence test




Fungsi:

1. OTDR

2. OPM

3. VFL

4. LS

5. NETWORK CABLE TEST

6. FIBER INSPECTION

7. Event map

8. Loss test

9. Flashlight




Kelengkapan :

Unit

Bag

Adaptor charger

Kabel micro usb

Remote lan tester

Adapter SC/FC

Kartu garansi

Sertifikat kalibrasi

User manual

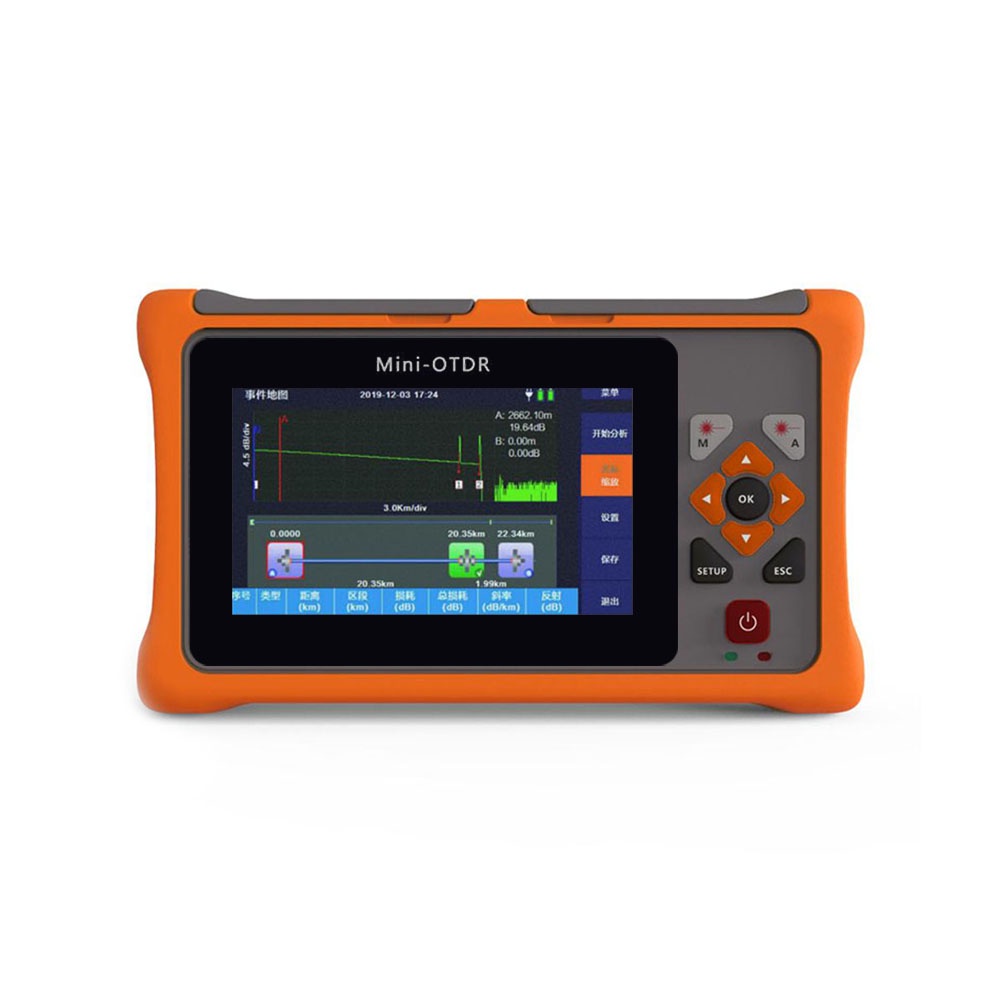

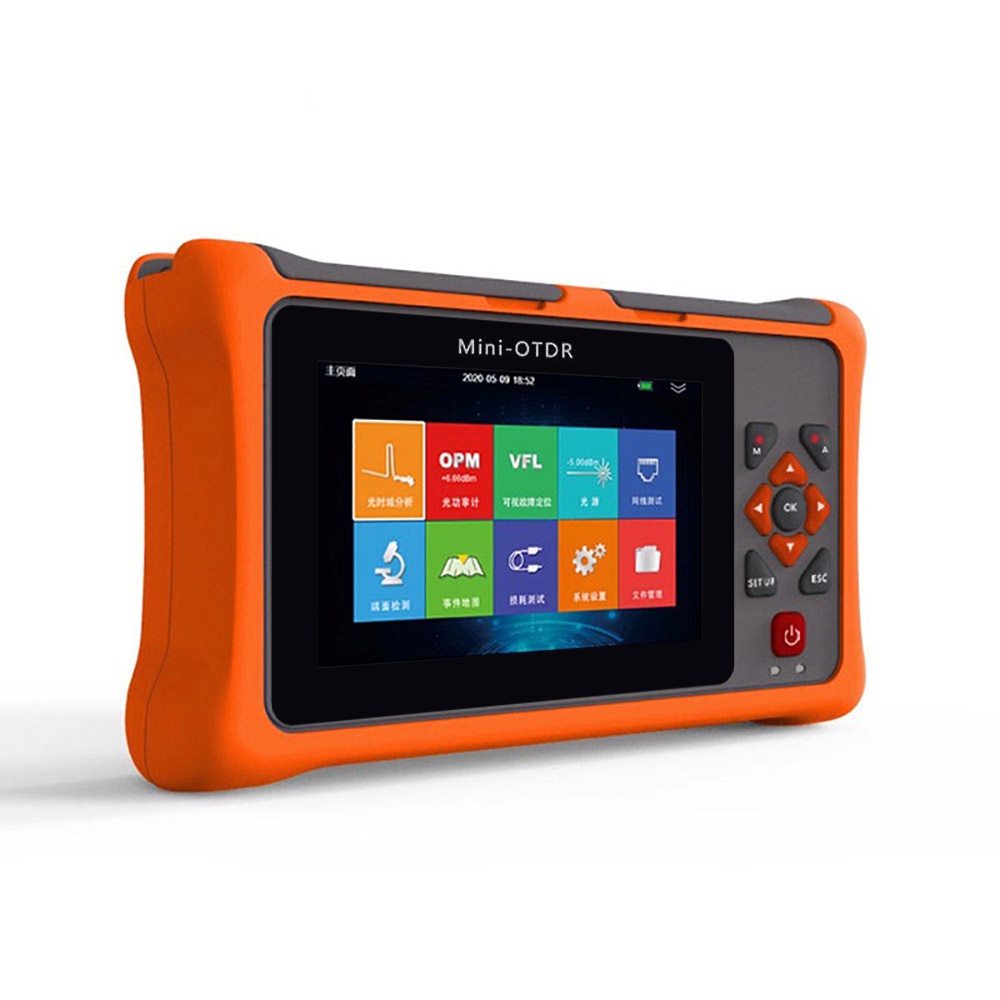

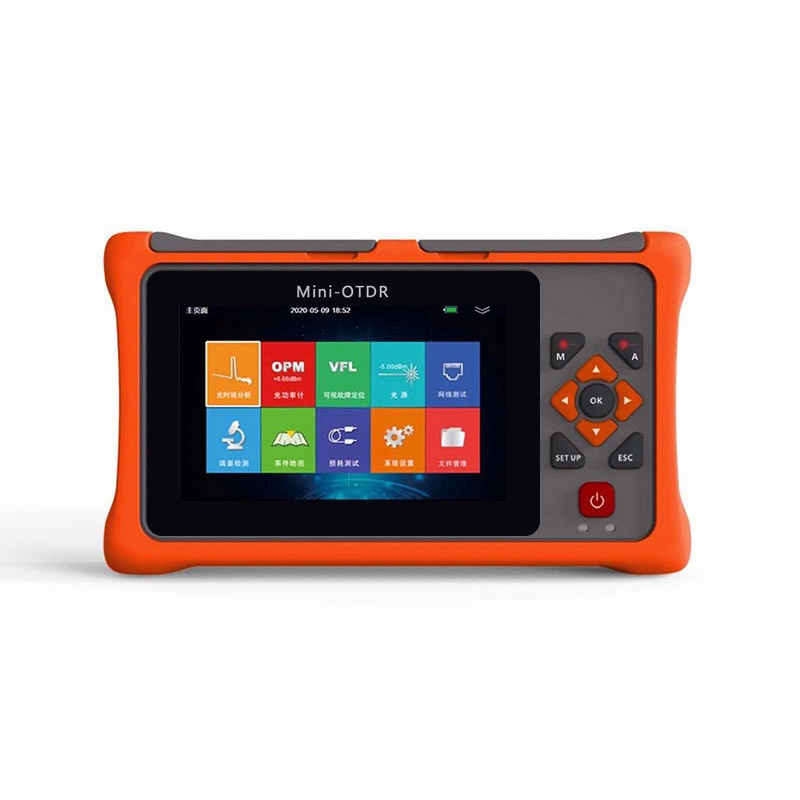

Gambar produk
