HSGQ E04ID atau E04R 4Port EPON AC/DC 12V OLT 4SFP PX20+++
Merek: HSGQ | Lihat selengkapnya produk Komputer & Aksesoris dari HSGQDeskripsi singkat
Komputer & Aksesoris > Komponen Network > Switch Internet & PoE > HSGQ E04R 4Port EPON AC/DC OLT 4SFP PX20+++
Toko:Future Computer & NetworkingLihat semua produk Komputer & Aksesoris oleh Future Computer & Networking
- Pengiriman Ekspres
- Barang yang diperiksa
- Bayar di tempat berlaku
- Kualitas, Prestise
- Pengembalian produk
- Dukung pembuatan faktur
Produk Terkait
Detail HSGQ E04ID atau E04R 4Port EPON AC/DC 12V OLT 4SFP PX20+++
Seri Terbaru HSGQ OLT Epon, Sudah Support AC dan DCHarga khusus pembelian ditempat pasti berbeda
HSGQ-E04R:
1U 19 inch
1+1 power redundancy
4* fixed EPON port
4* GE RJ45, 4*GE SFP port
1* console port,1*NMS port
Dual Power for options: AC+DC
Feature :
● Support Full Wier-Speed Forwarding
● 16K MAC address table.
● Complete network management functions
● Support flexible DBA, up and down traffic speedcontrol.
● Support lP ToS,IEEE802.1Q
● Support port aggregation
● Port-based traffic control, traffic shaping.
● Support ONU auto-discovery, and auto-registration.
● Support the automatic loop-back test function.
● VLAN powerful features, including VLAN Stacking, Trunk,Translation.
● Support lGMP Function
● Support ACL/QoS
Advantage :
● EPON: OLT follows the technical standard of lEEE802.3ah and China telecom.(YD/T 1475-2006)
● Opticallink diagnosis: complete warning mechanism
● High reliability: supports dual power supply(Default single power supply).
● Dimension: 1U cassette save space, low power consumption
● Uplink: support electrical and optical modules, can be flexibly configured according to different networking.
● Capacity: Each PON supports up to 64 terminals, the whole device supports up to 256 ONUs under full configuration

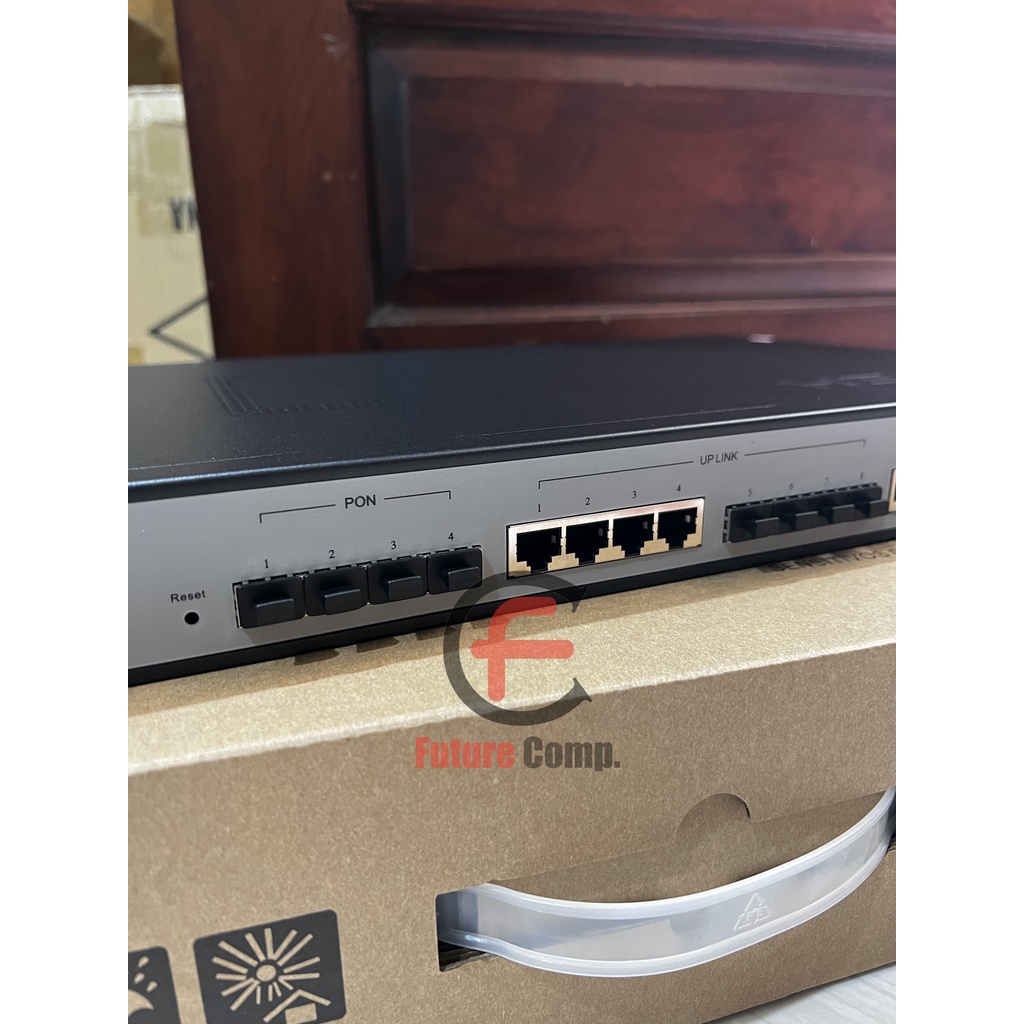

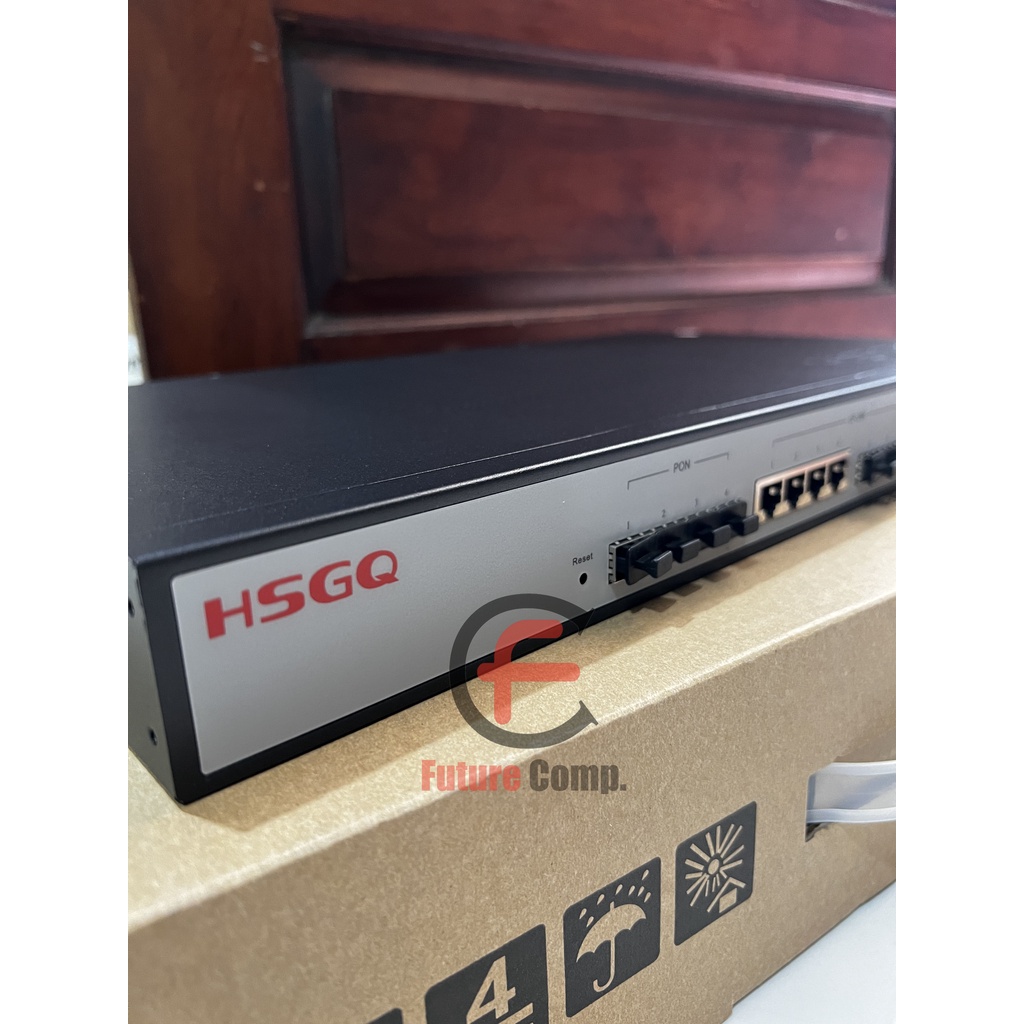

Gambar produk
