HQ 1 relay module 5v with opto isolation supports HIGH & LOW trigger

Detail HQ 1 relay module 5v with opto isolation supports HIGH & LOW trigger

hai kak. Mohon maaf untuk minimal order 20 ribu ya kak baru bisa kita proses, diluar ongkirstock = 5 pcs

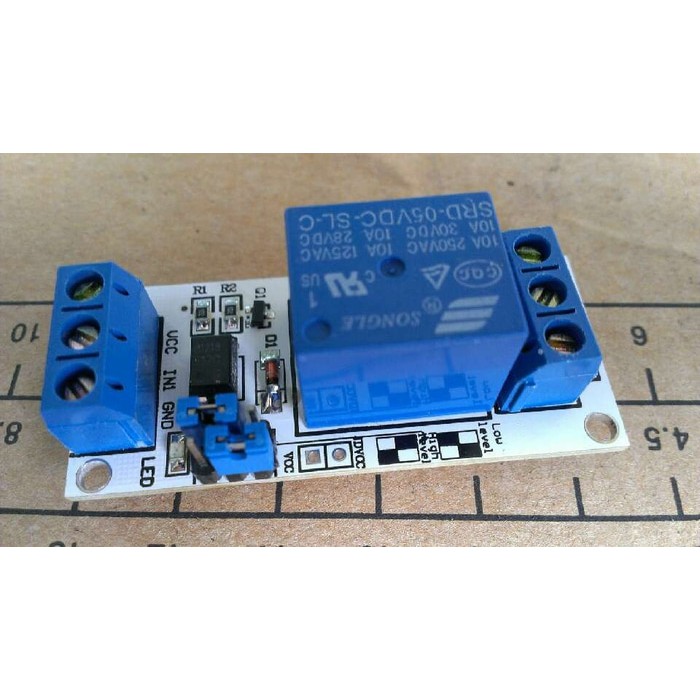

A module Description:
1, the module uses genuine quality relay, normally open interfaces Maximum load:
AC 250V / 10A, DC 30V /. 10A;
2, using SMD optocoupler isolation, driving ability, stable performance; trigger
current 5mA;
3, module voltage 5V, 9,12V, 24V to choose from;
4, the module can be set to a high level or low-level triggered by jumper
5, fault-tolerant design, even if the control line is broken, the relay will not
operate
6, power indicator (green), relay state indicator (red)
7, user-friendly interface design, all interfaces are available through the
wiring terminal direct connection leads, very convenient
8, module size: 50mm * 26mm * 18.5mm (L * W * high)
9 with four mounting bolts holes, hole 3.1mm, 44.5mm * 20.5mm pitch
two module interface:
1, the DC +: positive power supply (voltage relay according to requirements,
5V.9V.12V and 24V selection)
2, DC-: negative one
3, IN: can be high or low level control relay

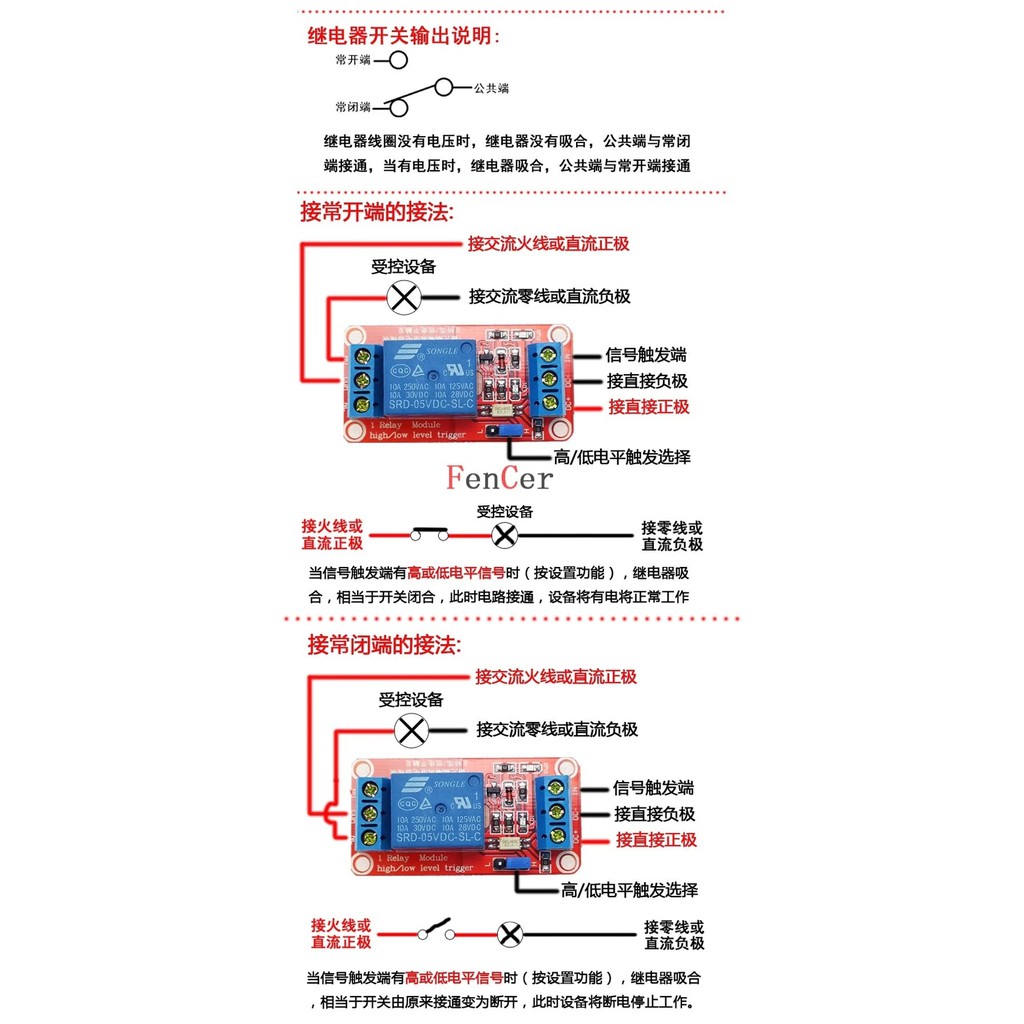

relay output:
1, NO: normally open relay interfaces, relay before hanging, pull back with COM
2, COM: Common Interface relay
3, NC: normally closed relay interfaces, relay before with COM, pull vacant post

High and low end of the trigger selection:

1. jumper LOW LOW trigger short-circuited;

2. When the trigger is high with high short jumper.

Gambar produk
