sensor arus AC 35A WCS1800 WCS 1800 hall current sensor

Detail sensor arus AC 35A WCS1800 WCS 1800 hall current sensor

Deskripsi Produk
A25 WCS1800 Hall Current Sensor 35A Short / Over-Current Protection Module FZ0954



Description

Dimensions: Length 37mmX high 16.5mm wide 31mmX

The main chip: LM393 op amp, WCS1800

Operating voltage: DC DC5V

Features:

1, with the signal output indicator;

2, the current detection range DC 35A AC: 25A;

3, the current detection resolution of 60mV / A;

4, output overcurrent signal indication;

5, the critical point set overcurrent signal is adjustable, set the resolution 1.5A;

6, with mounting holes for easy firmware installation;

7, sample current conversion analog signal output, which can be accessed ADC, TTL level signal output, which can be accessed microcontroller IO port control.

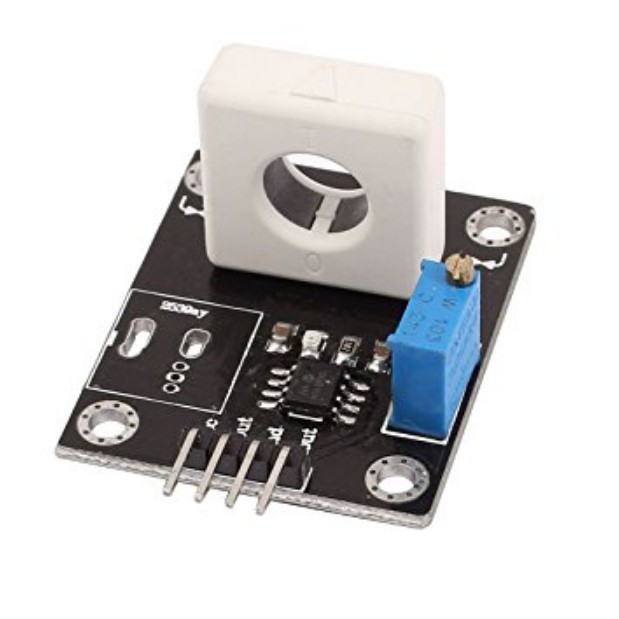

Gambar produk
