New product HA7302CS Standalone Type 2-PON OLT

Overview
HA7302CS is a standalone 2-PON
[http://www.hiosotech.com/EPON-OLT/Hot-sell-HA7304C-1U-Rack-4PON.html]
OLT,working with HA7200 series ONU and ODN, to establish a passive optic
network. It supports 2-PON, 64 ONUs access. It supports 10～20km transmission
distance at the base of high bandwidth, full line speed L2/L3 transition
capacity. It supports SNMP management

Feature
Supply 2 SFP PON ports, 2 Combo uplink ports, 1 10/100M RJ45 management port
Support SNMP management and WEB management
Each PON port support 1.32 split ratio, total 64 ONUs access,maximum 128
Distance can reach 20km under 1:32 split ratio,maximum 1:64
Support to work with HA400/HA7200 series ONUs to establish passive network
1U rack design, inside fan,better for heat dissipating and reliability operating
Apply for town,village fiber network and surveillance, apply for FTTX network,
to transmit IP phone, data,IPTV and other IP services access

Application
1000M point to multi-point optic passive network

Technical Specification
Operating wavelength: 1310（RX）/1490（TX）
Optical power: +0 ~ +7dBm
Receiving sensitivity: -27dBm
Max distance: 20km
Max splitter ratio: 1:32
Capacity: 2 PON, standard: 64 ONUs  maximum:128 ONUs
MAC: 8K
Uplink port: 2 10/100/1000 Ethernet RJ45 ports / 2 Gigabit SFP ports optional
PON port: 2 SC fiber ports
Control port: RJ45 console port, to debug the device
MTBF: 100,000 hours
EPON traits:
- Support IEEE802.3ah
- Support DBA with minimum1Kbps granularity adjustable
- Support 1Gbps up link and down link symmetrical bandwidth
- Support AES-128 encryption to each Logical Link Identifier
- Support powerful OAM function, implement telnet management, maintenance and
upgrade
- Support auto discovery and auto register of ONU (real-time operation)
Protocols supported:
- Support IEEE802.3, IEEE802.3u, IEEE802.3ab
- Support IEEE802.1Q VLAN
- Support IEEE 802.1P QoS
Management: CLI and GUI, SNMP, WEB
Support DHCP Snooping
Support Ipv4 address learning based at DHCP Snooping
Support ARP Snooping, QoS etc
Working Environment
Power supply: AC220V
Power consumption: 11W
Operating temperature: -10～55℃
Storage temperature: -40～70℃
Humidity: 5%～90% non-condensing
Dimension: 276mm(length) ×200mm(width) ×44mm(height)

Package contents:
1 x HA7302CS
2 x SFP PX20+++ 7db
1 x Kabel power

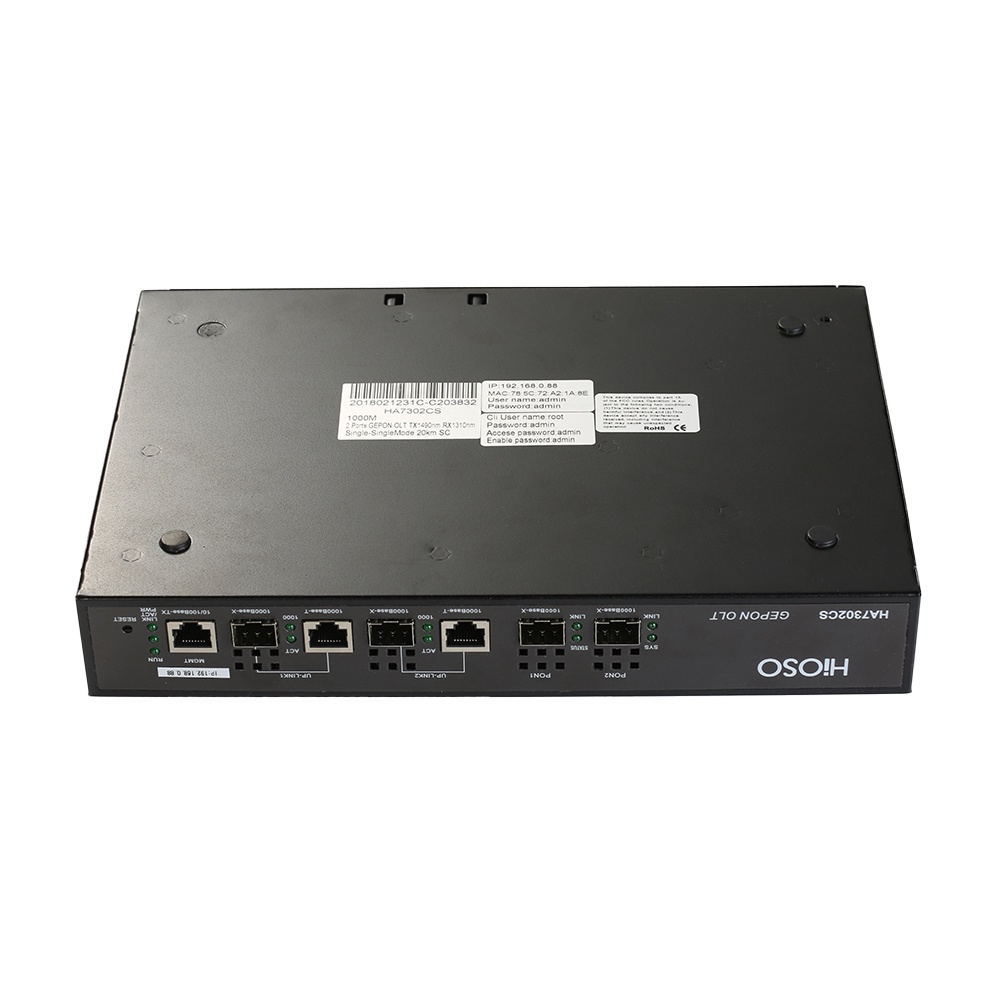

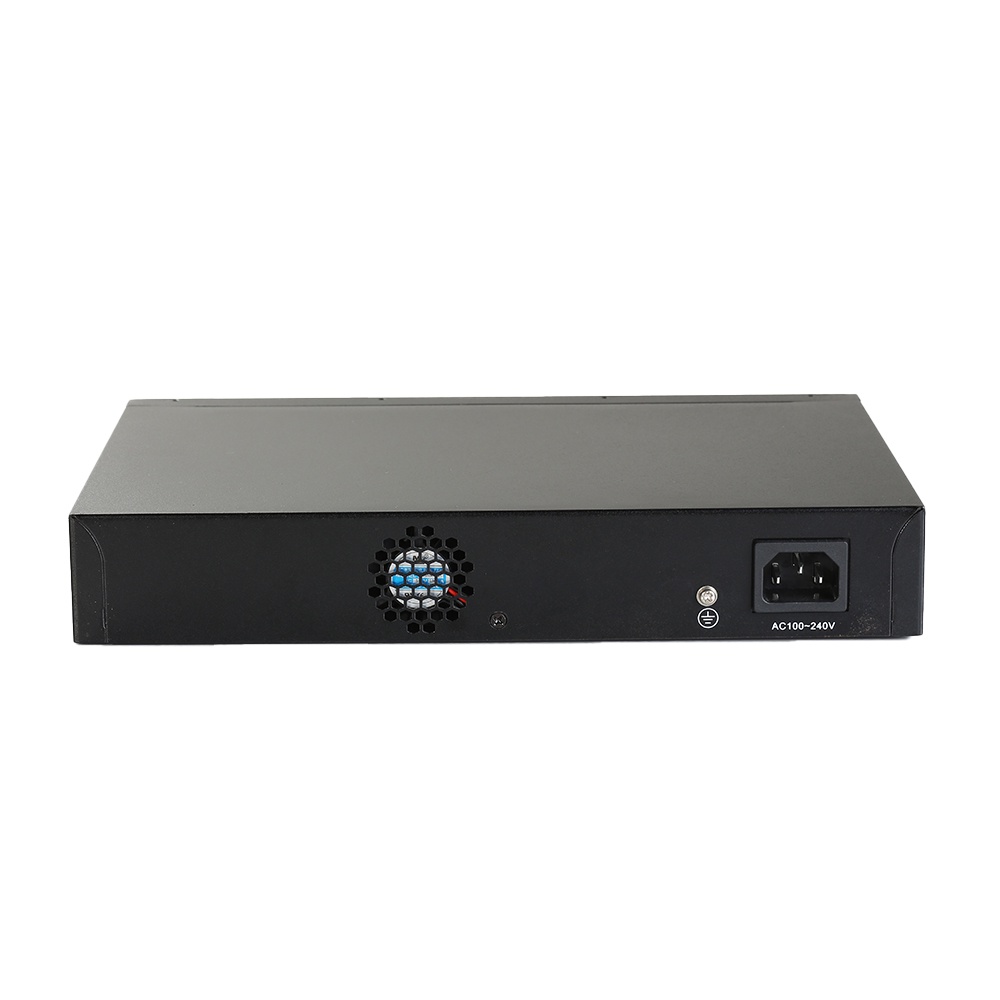

Gambar produk
