OLT HIOSO 4 PON HA7304C EPON NEW

Detail OLT HIOSO 4 PON HA7304C EPON NEW

Isi dalam dus :
1 Unit OLT EPON MODEL HA7304C
1 Unit Kabel Power
1 Set Kuping Bracket Rackmount
1 Unit Manual Book

.
Overview is a standalone 4-PON OLT,working with HA7304c series ONU and ODN, to establish a passive optic network. It supports
4-PON, 128ONUs access (maximum 256). It supports 10~20km transmission distance at the base of high bandwidth, full line speed
L2/L3 transition capacity. It supports WEB/SNMP/CLI management.

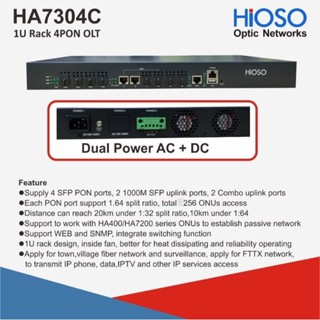

Feature

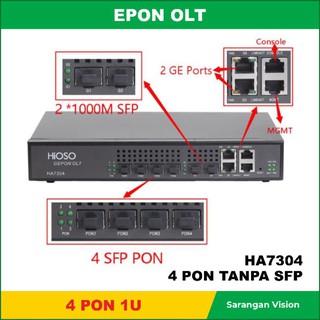

l Supply 4 SFP PON ports, 4 1000M RJ45 uplink ports, 1 10/100M RJ45 management port
l Support SNMP management and WEB management
l Each PON port support 1.32 split ratio, total 128 ONUs access,maximum 256
l Distance can reach 20km under 1:32 split ratio,maximum 1:64
l Support to work with HA400/HA7200 series ONUs to establish passive network
l 1U rack design, inside fan,better for heat dissipating and reliability operating
l Apply for town,village fiber network and surveillance, apply for FTTX network, to transmit IP phone, data,IPTV and other IP
services access

Specification
Parameter Specifications
Operating wavelength : 1310(RX)/1490(TX)
Optical power : +0 ~ +7dBm
Receiving sensitivity : -27dBm
Max distance : 20km
Max splitter ratio : 1:64
Capacity : 4 PON, standard: 64 ONUs
MAC : 8K
Uplink port : 4 1000M Ethernet RJ45 ports
PON port : 4 SFP fiber ports
Control port : RJ45 console port, to debug the device
MTBF : 100,000 hours

Gambar produk
