Head Unit Double Din 7 Inch Bluetooth Audio Car MP5 Player In Touch Screen Radio Dan Kamera Mundur Mobil LED

Detail Head Unit Double Din 7 Inch Bluetooth Audio Car MP5 Player In Touch Screen Radio Dan Kamera Mundur Mobil LED

Video perkenalan produk Head Unit Double Din 7 Inch Bluetooth Audio Car MP5 Player In Touch Screen Radio Dan Kamera Mundur Mobil LED. Sumber: Shopee.

Fitur:
💕 Radio
💕Sports membaca USB flash drive (audio/video/gambar)
💕 Fungsi aux

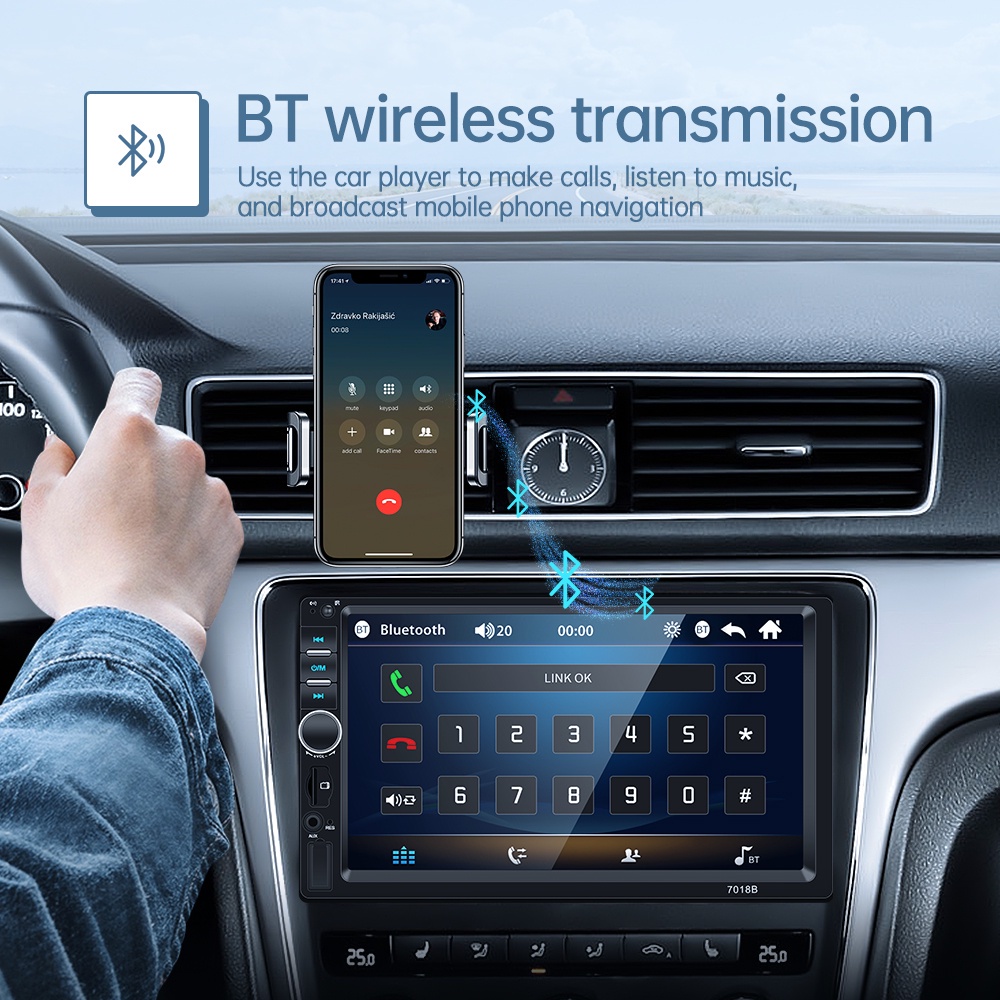

💕 Fungsi Bluetooth
💕 Output audio RCA dapat dihubungkan ke subwoofer

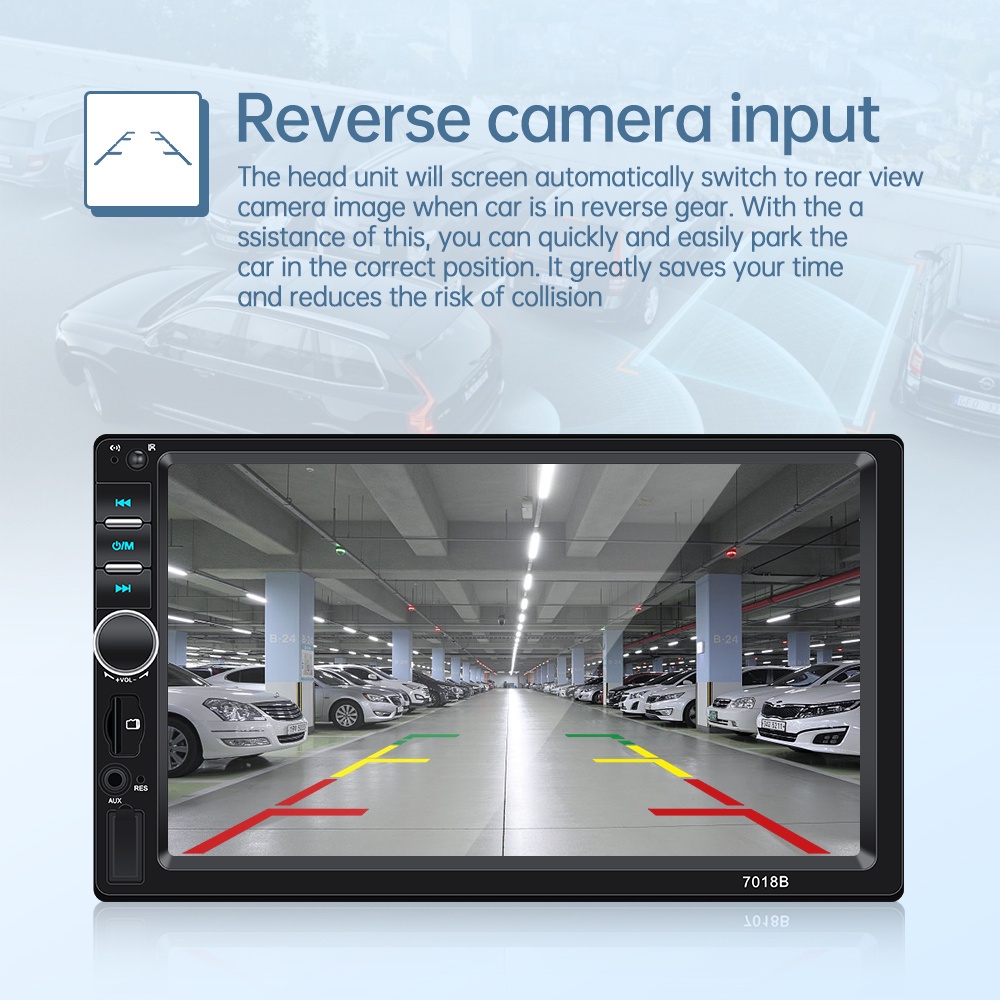

💕 Membalikkan fungsi input kamera tampilan belakang (kamera tidak termasuk)
Input Video, output video

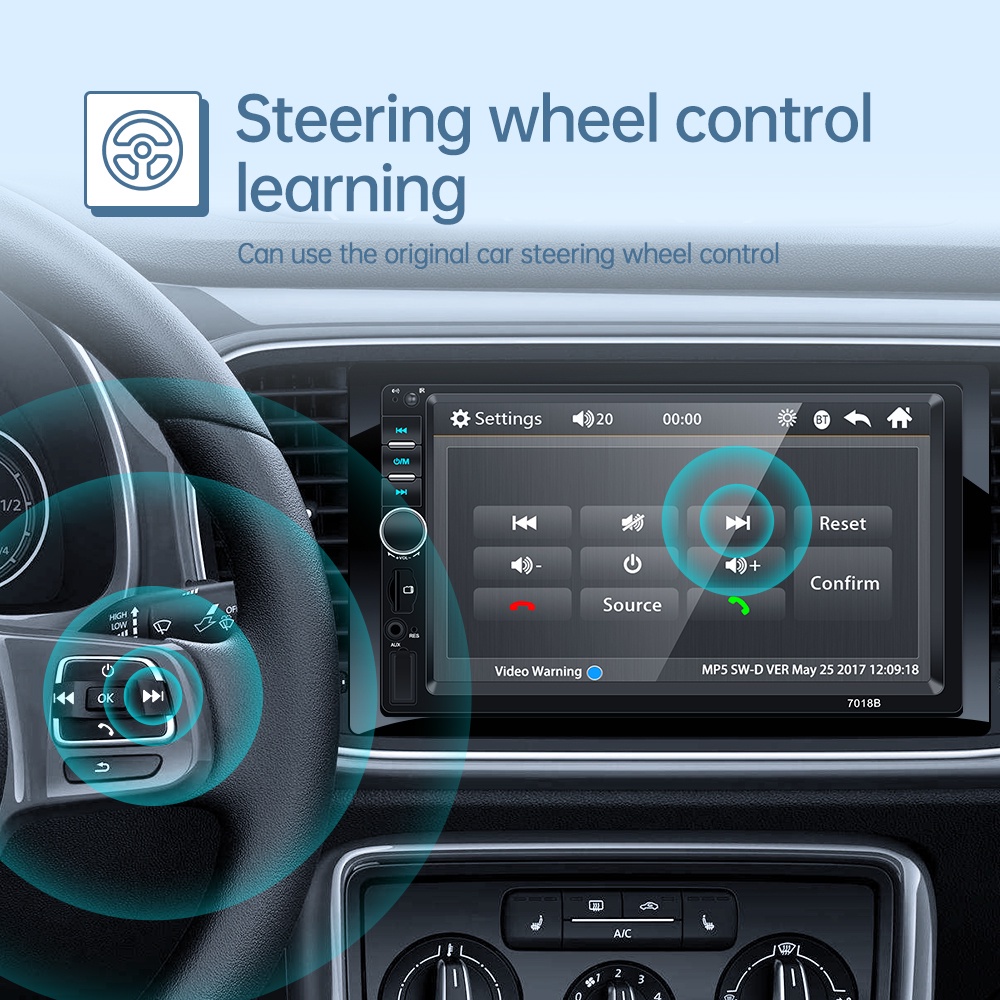

💕 Fungsi Pembelajaran Roda Kemudi Mobil Asli

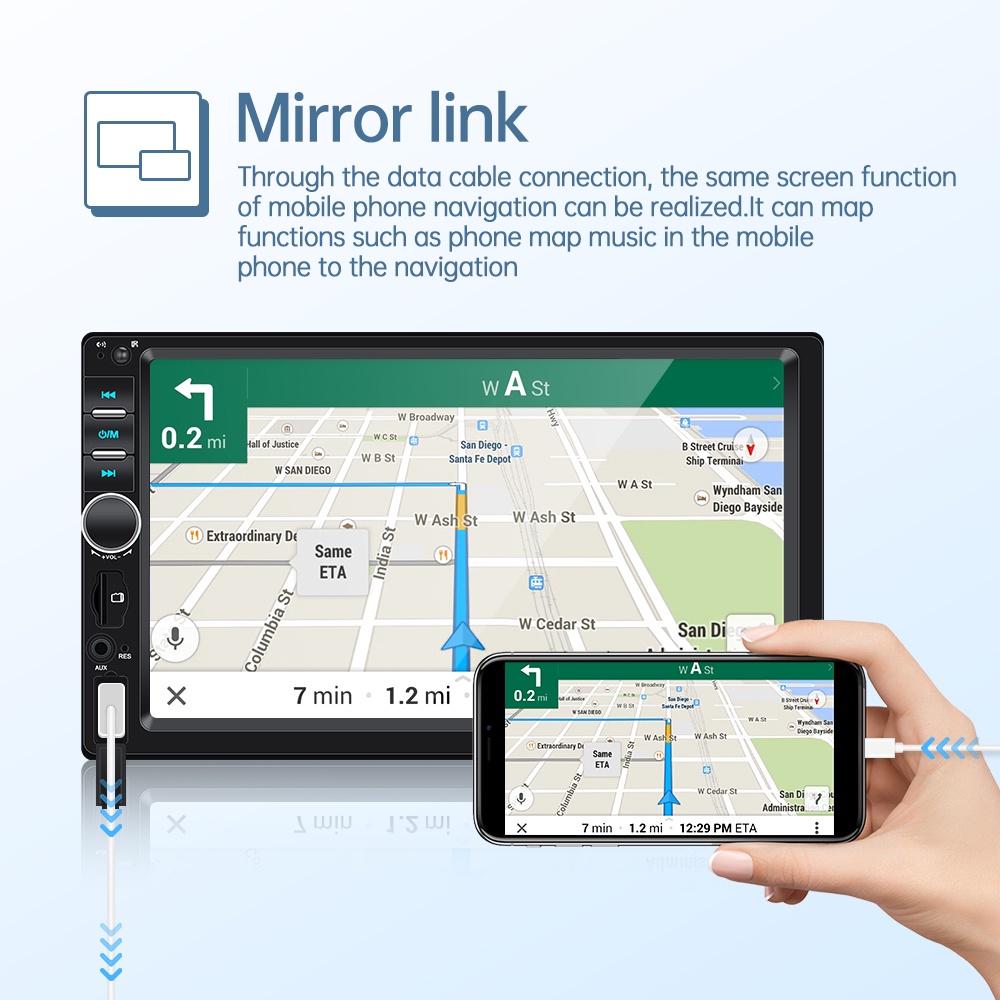

💕 Mendukung Layar Telepon Mirroring ke Radio Mobil (untuk iPhone/Android)
💕 Lampu berwarna -warni
💕USB Port pengisian daya untuk perangkat elektronik Anda
💕 Temukan mobil saya melalui aplikasi gratis (hanya tersedia dengan opsi '' bt temukan radio ''). (Setelah parkir, ponsel Anda dapat mengingat lokasi parkir dan dapat menavigasi ke lokasi parkir itu nanti)

⭐⭐⭐Important notice before installation:
Yellow line (for memory wire) connected to the battery constant current positive, the machine will have memory function.
Red line pick the key to the ACC line, this line is also positive, control power switch. Black wire connected to the negative power supply.
Blue line connected lift the antenna or subwoofer REM control line, if not have do not connected, wrapped up with rubberized fabric.
The remaining eight wires(gray white green purple) are speaker line, a group of colors corresponding to a pair of speaker lines (positive and negative).
Please pay attention to check whether the original car speaker cable if contact iron (the original car speaker wire welding to the metal, or a speaker only a line thow out, called contact iron). contact iron will cause our high-power machine without sound, please test it with a multimeter before install, if contact iron, please disconnect and then install.

TF USB Port
Specification:
Model: 7010B
System: wince
Decoding chip: Quanzhi C500
Screen size: 7 inches
Screen resolution: 1024*600
Panel size: 178mm*100mm
Color box size: 208mm*115mm*152mm
Depth: 50mm
Gross weight: 0.663kg
Net weight: 0.46kg
Mobile phone interconnection: Support (up to for Android 10.0, for iPhone 11/XR/8P or older)
GPS navigation: Not supported
Radio band: FM single band
Radio chip: QN8035
Languages: English, Chinese, French, Portuguese, Spanish
Reversing video input: Support
Reversing detection method: Tail line detection
Brake reminder function: Yes
Steering wheel control function: Yes
Bluetooth: Support
Power amplifier chip: TDA7388
Radio frequency: 87.5M-108M
Memory card slot: supports TF cards
GPS card slot: No GPS function
Remote control: Yes, 21-key remote control
USB interface: Yes
Reset button: Yes, RST
Plug type: ISO plug

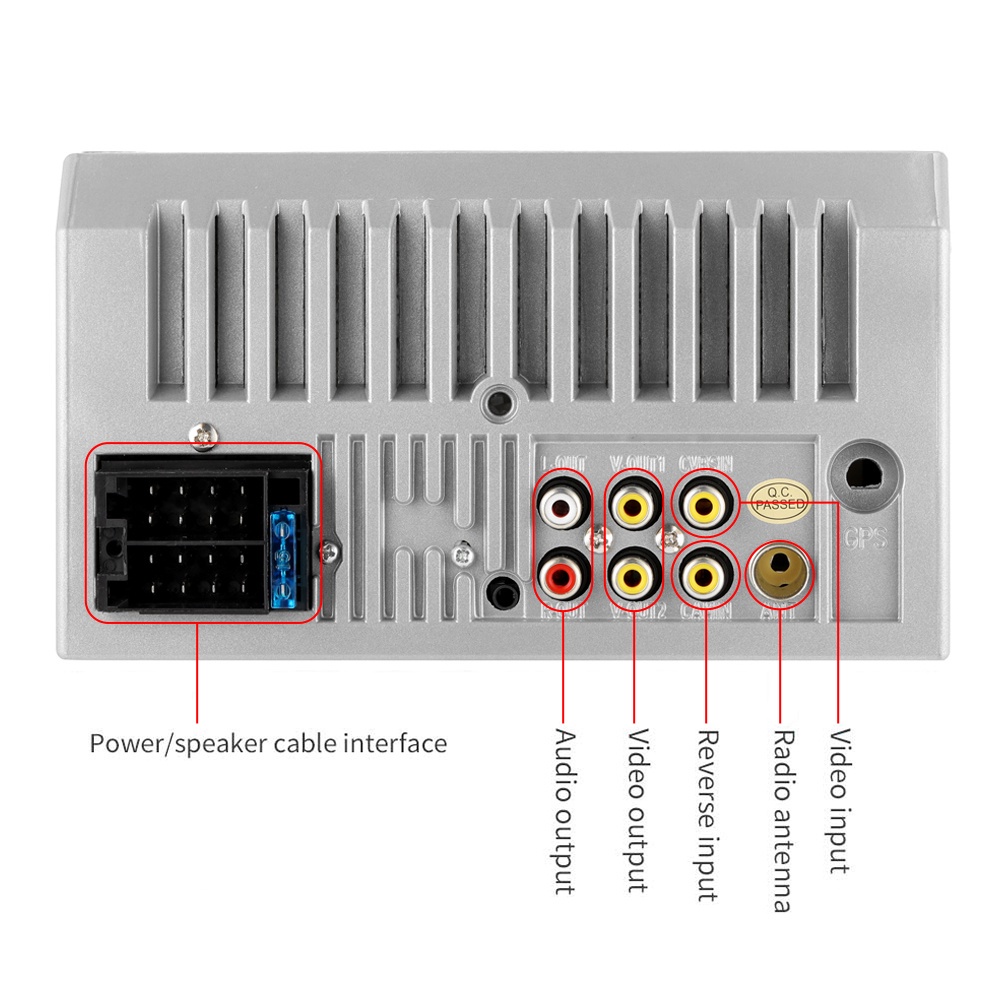

RCA jack: 2 video outputs, 1 reversing input, 2 audio outputs, and 1 video input Front AUX audio input: Yes
Volume knob: Yes
Supported audio formats: MP3/WMA/WAV/OGG/FLAC/APE
Supported video formats: RM/RMVB/MP4/FLV/MKV/3GP/AVI/ASF/SWFMP1/MP2
Supported image format: JPG

1 X Car Radio
1 Set X Harness
1 X Remote Control
1 X Manual

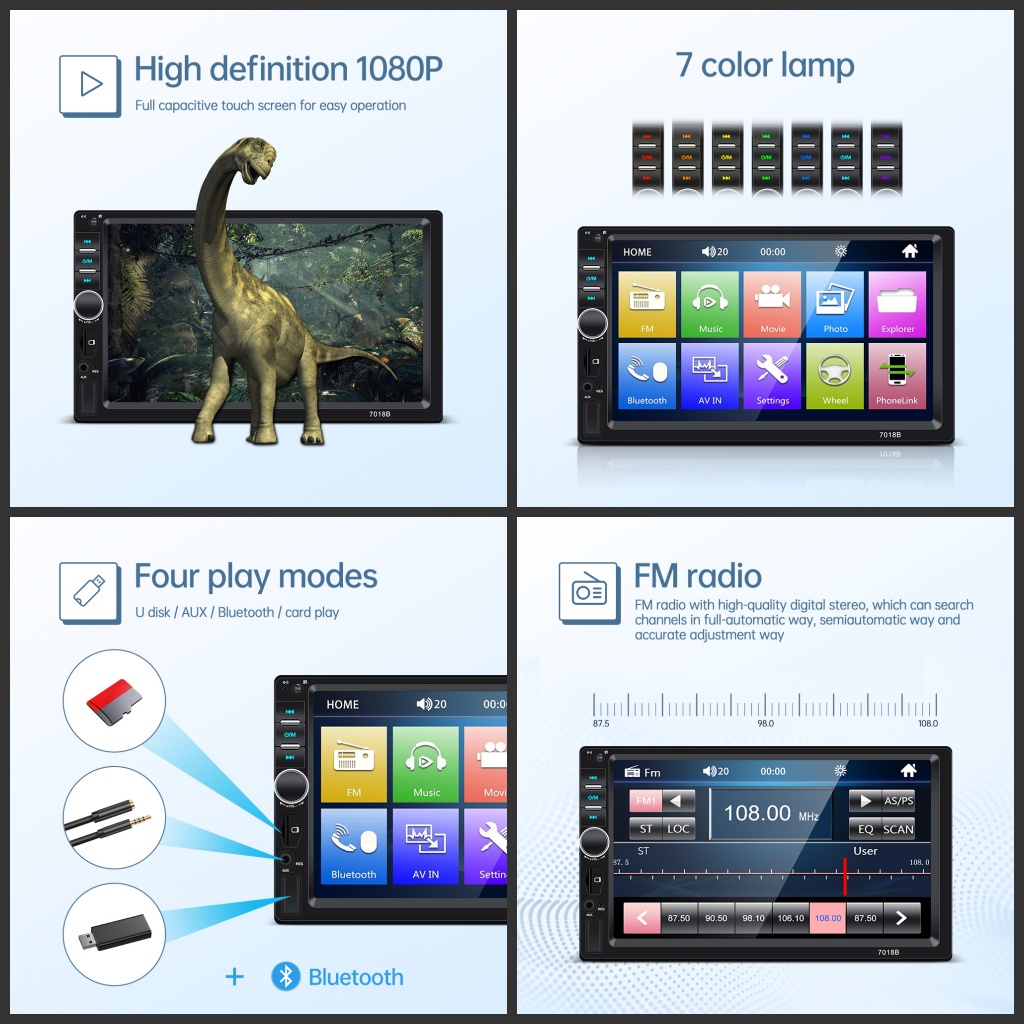

Gambar produk
