HDMI Video Wall Controller 2x2

Detail HDMI Video Wall Controller 2x2

HDMI Video Wall Controller 2x2
This video wall controller is a perfect solution for 2x2 large video wall, supports 1xHDMI source input and 4xHDMI outputs to four monitors. It supports HDCP-compliant HDMI signal source up to full HD 1080p@60Hz. It's ideal for video wall display applications in clubs, exhibitions, building lobbies and other similar venues.

Features :

1. With 4 HDMI outputs,divides the input video into four parts and extend to four same size displays.
2. Resolution supported is up to 1080p@60Hz.
3. Support video wall screen mode and clone screen mode.
4. With 3.5mm audio output port, access to audio equipment easily.
5. Wall-mountable design, easy for installation.
6. Switch output modes with mode button.
7. Plug and play.

Specifications :
- Brand : Wiretek
- HDMI signal : HDMI1.3, Full compatible with HDCP1.2
- Input port : 1 × HDMI
- Output HDMI : 4 × HDMI
- Audio format : PCM
- HDMI resolution : 480i@60Hz, 480p@60Hz，576i@50Hz，576p@50Hz，720P@50/60Hz, 1080p@50/60Hz
- Working temperature : 0 - 60℃
- Power supply : 12V / 2A
- Power consumption : <10W
- Product dimension : 214 x 108.6 x 25.5 mm
- Weight : 610g
- Color : Black

Package Content :
1x HDMI Video Wall Controller 2x2
1x Power Adaptor
1x Kabel Audio

Wiretek Quality Product For You ( 1 Year Warranty )

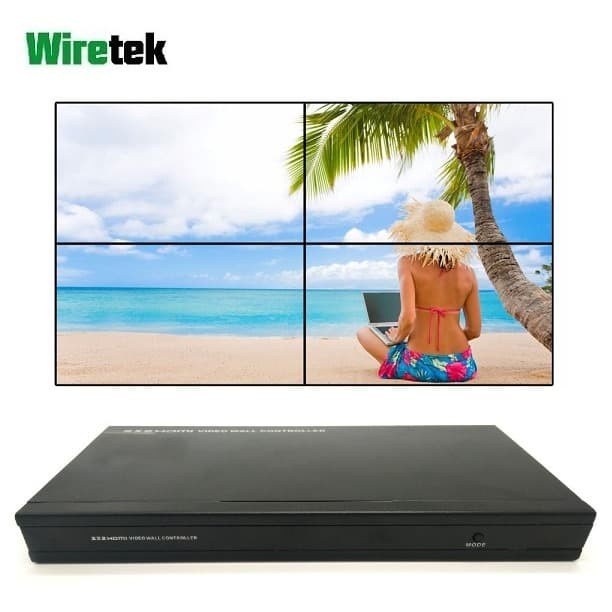

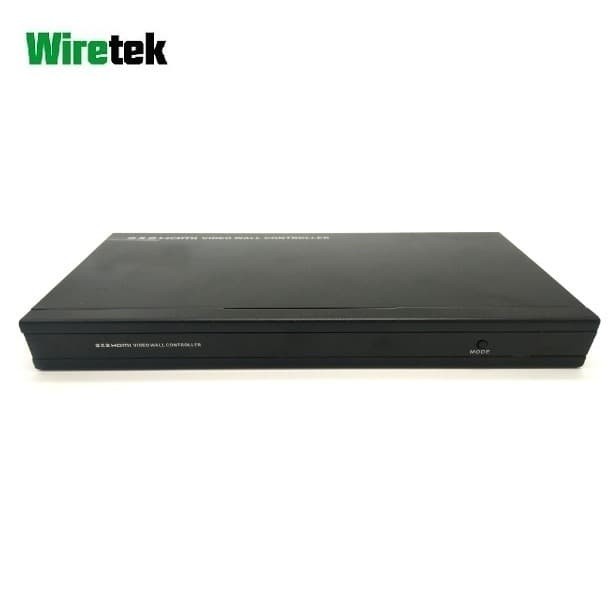

Gambar produk
