HDMI Splitter Bafo 8port / Hdmi splitter 1-8 bafo

Detail HDMI Splitter Bafo 8port / Hdmi splitter 1-8 bafo

One HDMI 1.4a input signal split to eight HDMI 1.4a sink devices
Support Full HD, Full 3D
Support 4K x 2K UHD resolution
Support CEC
Support deep color 30bit, 36bit, 48bit
Support Blue-Ray 24/50/60fs/HD-DVD/xvYCC
Digital audio format, as DTS-HD/Dolby- true HD/LPCM7.1/DTS/Dolby-AC3 o/DSD/HD(HBR)
Support signal retiming
Support input up to 12metres AWG26 HDMI standard cable length,
Output up to 12metres AWG26 cable length
No loss of quality Installs in minutes
Need DC 5V/3A power supply


SPECIFICATIONS:

BAFO P/N : A5-0004B2-001
HDMI version : HDMI 1.4a
HDMI resolution : 24/50/60fs/1080p/1080i/720p/ 576p/576i / 480p / 480i
Support video color format 24bit/deep color 30bit, 36bit, 48bit
Support audio format : DTS-HD/Dolby- true HD / LPCM7.1/ DTS / Dolby - AC3 / DSD HD (HBR) .
340MHz Max bandwidth
Max baud rate : 10.2Gbps
Input/Output TMDS signal : 0.5-1.5volts p-p(TTL)
Input/Output DDC signal : 5Volts p-p(TTL)
Input cable distance : 12m HDMI AWG26
Output cable distance : 12m AWG26 HDMI standard cable
Max working current Power adapter format.
Input: AC(50Hz, 60Hz) 100V-240V: Output: DC5V/3A
Operating Temperature range(-15 to +55 C)
operating Humidity range 5 to 90%RH (No Condensation)
Dimension(L x W x H) : 280 x 138 x 26 (mm)
871g Weight

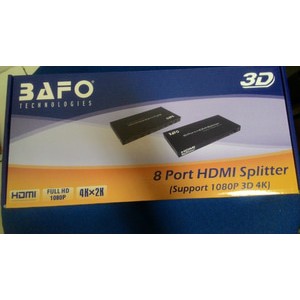

Gambar produk
