Bafo BF-373 HDMI Extender Cat6 120M

Detail Bafo BF-373 HDMI Extender Cat6 120M

HDMI extender is a pair of converter tools to make UTP LAN cat 5e / 6 cable instead of HDMI Cable function. This pair of converters consists of Sender (Sender) and Receiver (Receiver)



Features :

· Use only one CAT-5/6 cable to substitute HDMI cable to achieve long distance transmission.
· Follow the standard of IEEE-568B.
· Transmission distance more than 40m, Cat6 support up to 60 meters.
· Auto-adjustment of feedback, equalization and amplify, the user does not need to care about the length of the cable.
· Signaling rates up to 2.25Gbits in support of 1080p display.
· HDCP Compliant.

Specifications :

· Brand : Bafo
· Input video signal: 0.5 to 1.0 v p-p
· Output DDC signal: 5V p-p (TTL)
· Support : 480i / 480p @60Hz, 576p / 576i @50Hz, 720p, 1080i, 1080p @50/60Hz
· Sender unit :

o Weight : 70 g
o Size : 66 x 56 x 22 mm
o Case : Plastic
o Input :
Gold plated HDMI A type female ( IN )
Power port : DC 5V

o Output :
1 x shielded RJ45 female (Tx)
Reset Button
LINK - LED to show work status

· Receiver Unit :
o Weight : 70 g
o Size : 66 x 56 x 22 mm
o Case : Plastic
o Input :
1 x shielded RJ45 female ( Rx )
LINK - 2 x LED to show work status
Length Button (network cable length adjust button)

o Output :
Gold plated HDMI A type female (OUT)
Power Port : DC 5V

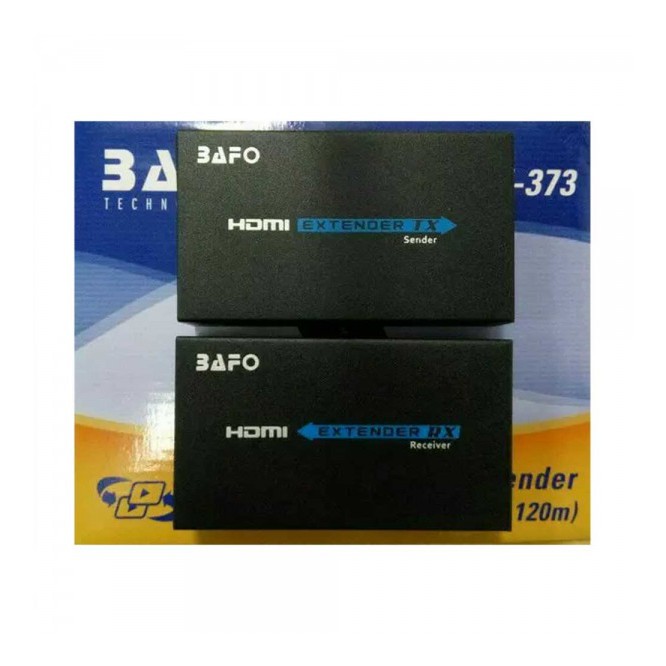

Gambar produk
