HDMI Extender Over Cat6 LAN UTP Cable 200M BAFO BF-374B Full HD 1080P

Detail HDMI Extender Over Cat6 LAN UTP Cable 200M BAFO BF-374B Full HD 1080P

JUAL : HDMI EXTENDER CAT6 120M BAFO BF-373A

HDMI extender adalah alat yang berupa sepasang konverter dengan fungsi membuat kabel LAN UTP cat 6 sebagai pengganti fungsi Kabel HDMI. Sepasang konverter ini terdiri dari Sender Transmiiter (pengirim) dan Receiver (Penerima).

Features :

Extends HDMI up to 200 meters for 1080p over one CAT6.
Follow the standard of IEEE-568B
HDCP 1.2 compliant
Extends by Router connection or LAN connection
Support video input res : 60fps/1080p/720p/576p/480p
Support video output res : 60fps/1080p/720p/576p/480p
Support CEC
Support 20~60KHz IR working
TCP/IP protocol compliant, one transmitter and multiple receivers with a maximum of 253 receivers
Audio format support : DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD
Install in minutes

Spec :

Brand : BAFO
Model : BF-374B
Support : 60fps/1080p/720p/576p/480p

Transmitter unit :
Size : 80 x 75 x 23 mm
Case : Metal
Input :
Gold plated HDMI A type female ( IN )
LINK - LED to show work status
Power port : DC 5V
Output :
1 x Shielded RJ45 female (Tx)
1 x Audio out
1 x IR ext port
Reset Button

Receiver Unit :
Size : 80 x 75 x 23 mm
Case : Metal
Input :
1 x shielded RJ45 female ( Rx )
Power Port : DC 5V
Output :
Gold plated HDMI A type female (OUT)
LINK -1x LED to show work status
1 x Audio out
1 x IR ext port

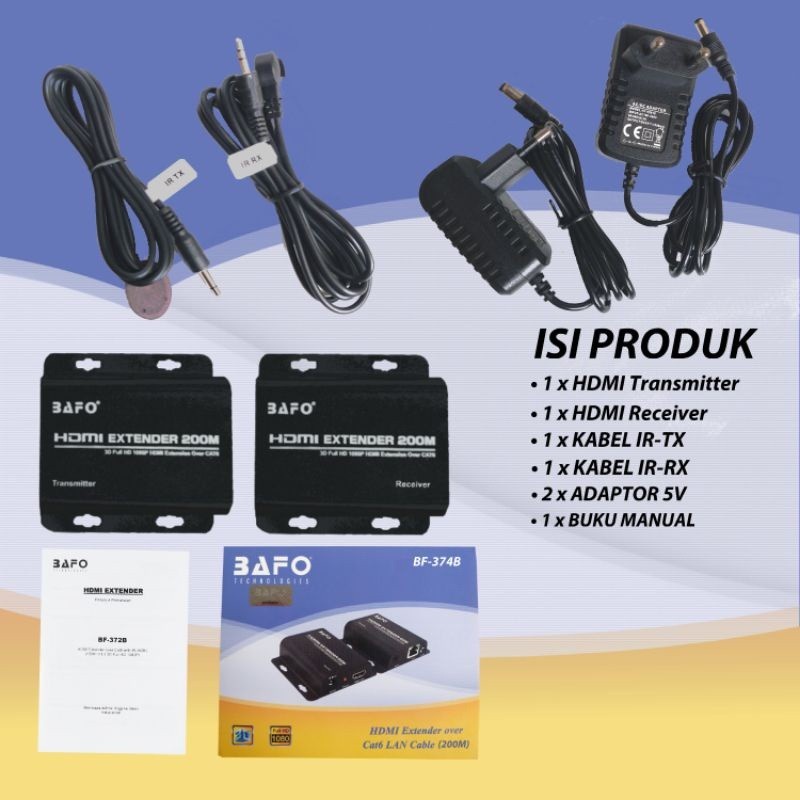

ISI paket :

1 x Sender unit HDMI Extender
1 x Receiver Unit HDMI Extender
2 x Kabel 3.5mm IR TX/RX
2 x Power Adaptor dc 5v ( Bentuk fisik Adaptor bisa berbeda dengan di Foto )
1 x Manual


=====

Note :

WAJIB VIDEO UNBOXING !!
Tanpa Video Unboxing Paket, Komplain Kerusakan/Kekurangan Tidak di terima !!

Gambar produk
