Detail Hdmi extender bafo 60 meter cat6 with ir Bf-372a - Hdtv extension 60m cat 6 bf372a
HDMI extender adalah alat yang berupa sepasang konverter dengan fungsi membuat kabel LAN UTP cat 5e/6 sebagai pengganti fungsi Kabel HDMI. Sepasang konverter ini terdiri dari Sender (pengirim) dan Receiver (Penerima).
Features :
Extends HDMI up to 60 meters for 1080p over one CAT6. Support : Cat 5e, Cat6 or Cat7 Follow the standard of IEEE-568B Supports resolutions up to 1080p Full HD Supports Ethernet bandwidth: 60M HDCP compliant
Specifications :

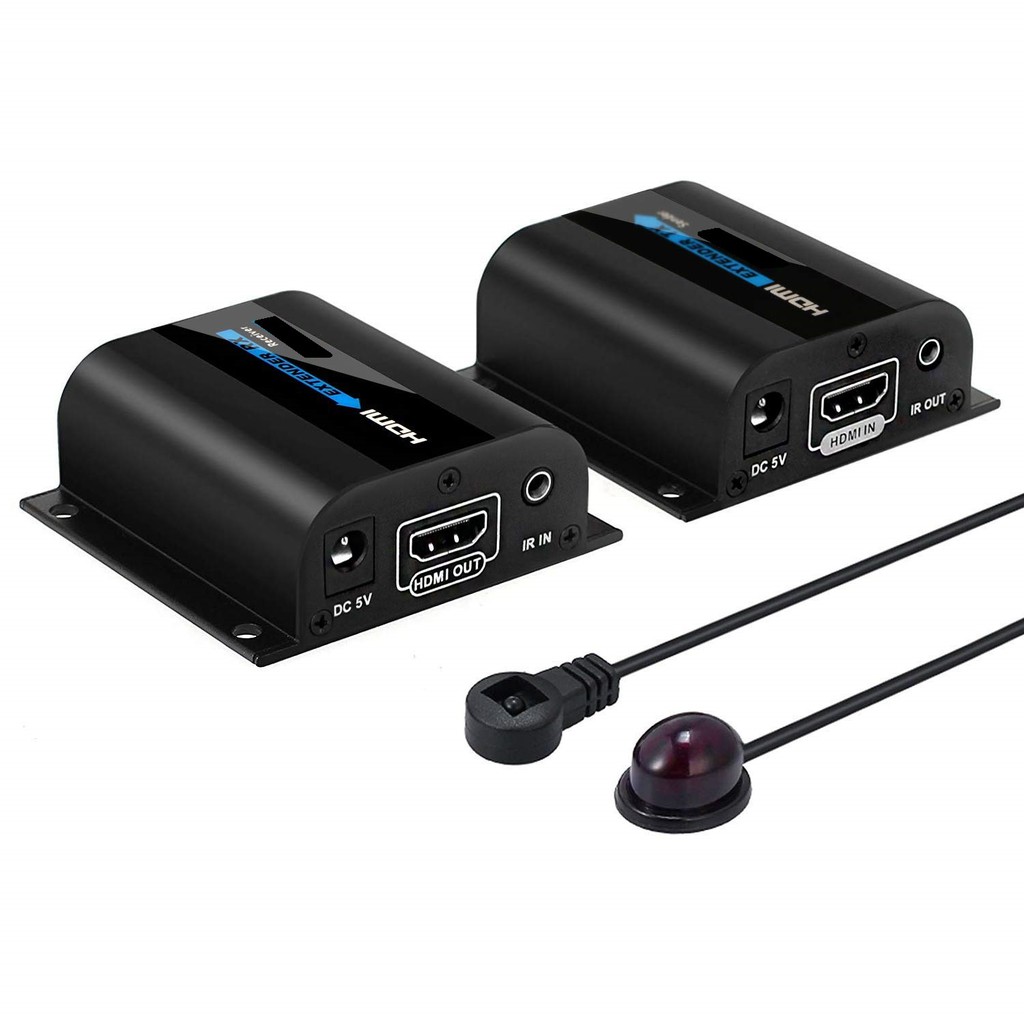

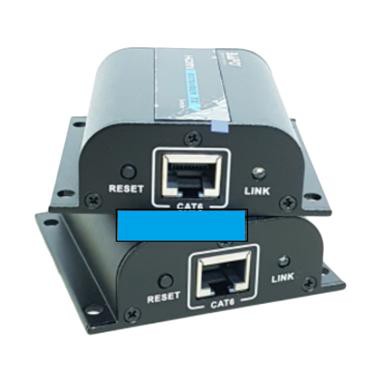

Brand : Bafo Support : 480i / 480p @60Hz, 576p / 576i @50Hz, 720p, 1080i, 1080p @50/60Hz Sender unit : Weight : 110 g Size : 72 x 66 x 25 mm Case : Metal (aluminum) Input : Gold plated HDMI A type female ( IN ) Power port : DC 5V Output : 1 x IR out : 3.5mm 1 x shielded RJ45 female (Tx) Reset Button LINK - LED to show work status Receiver Unit : Weight : 110 g Size : 72 x 66 x 25 mm Case : Metal (aluminum) Input : 1 x shielded RJ45 female ( Rx ) LINK - 1 x LED to show work status Reset Button 1 x IR in : 3.5mm Output : Gold plated HDMI A type female (OUT) Power Port : DC 5V
Package Contents :
1 x Sender unit HDMI Extender 1 x Receiver Unit HDMI Extender 2 x Power Adapters dc 5v 2 x 3.5mm IR Cable 1 x User Instructions
