Detail GY-511 LSM303DLHC Compass Module 3 Axis Magnetometer + Accelerometer

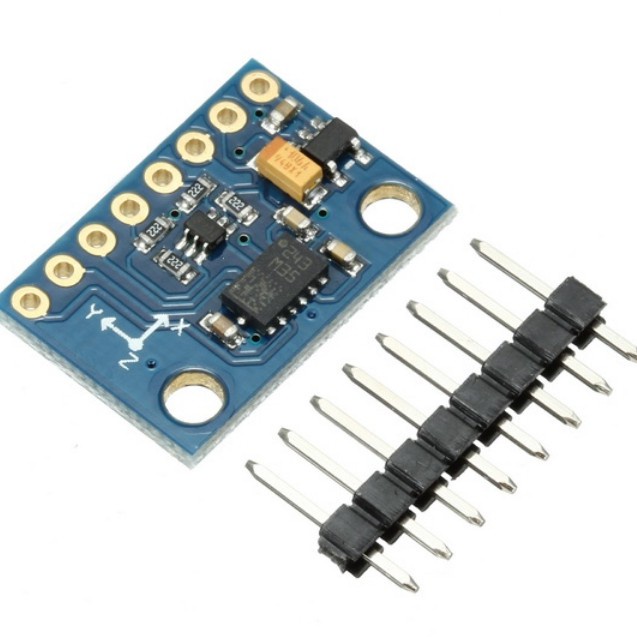

GY-511 LSM303DLHC Compass Module 3 Axis Magnetometer + Accelerometer

Model : GY-511

Dimensions : 14.5mm * 20.5mm

Name : LSM303DLHC module( Three-axis magnetic field + triaxial accelerometer )

Chip built-in 12bit AD converter ,16-bit data output

High quality Immersion Gold PCB,Welding machine quality assurance

Using chips : LSM303DLHC

Power supply :3-5v ( internal low dropout regulator )

Communication: IIC communication protocol standard

Magnetic field range :

± 1.3 / ± 1.9 / ± 2.5 / ± 4.0 / ± 4.7 / ± 5.6 / ± 8.1 gauss

Acceleration range : ± 2 g / ± 4 g / ± 8 g

Gambar produk

GY-511 LSM303DLHC Compass Module 3 Axis Magnetometer + Accelerometer
GY-511 LSM303DLHC Compass Module 3 Axis Magnetometer + Accelerometer
