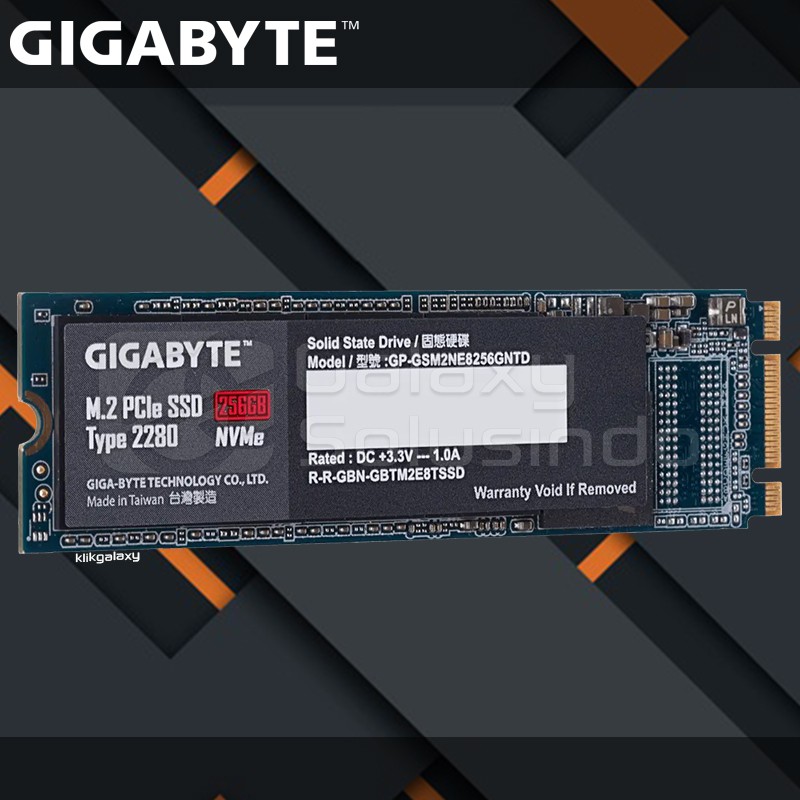

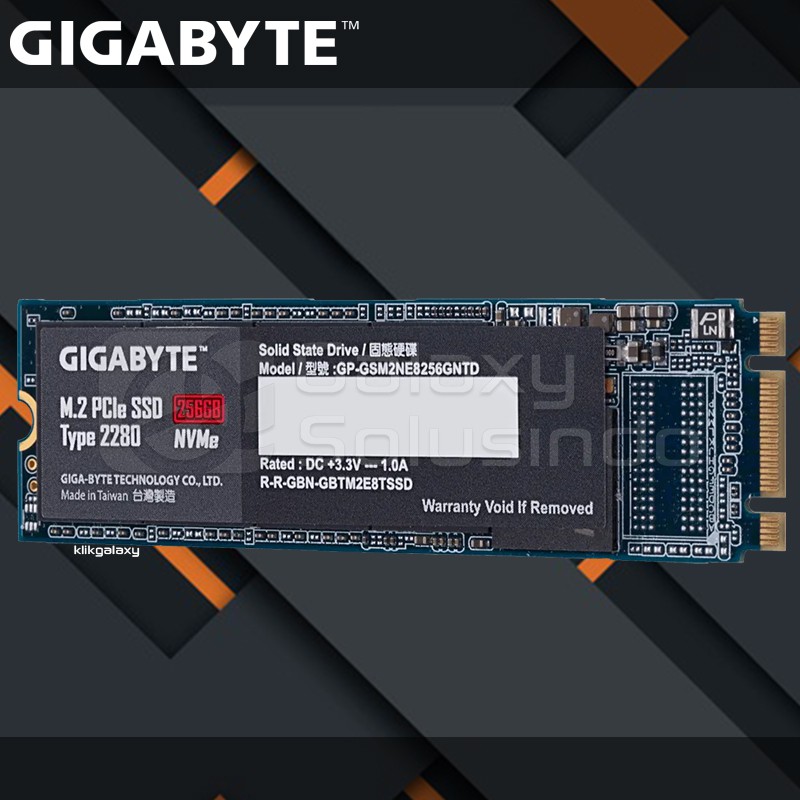

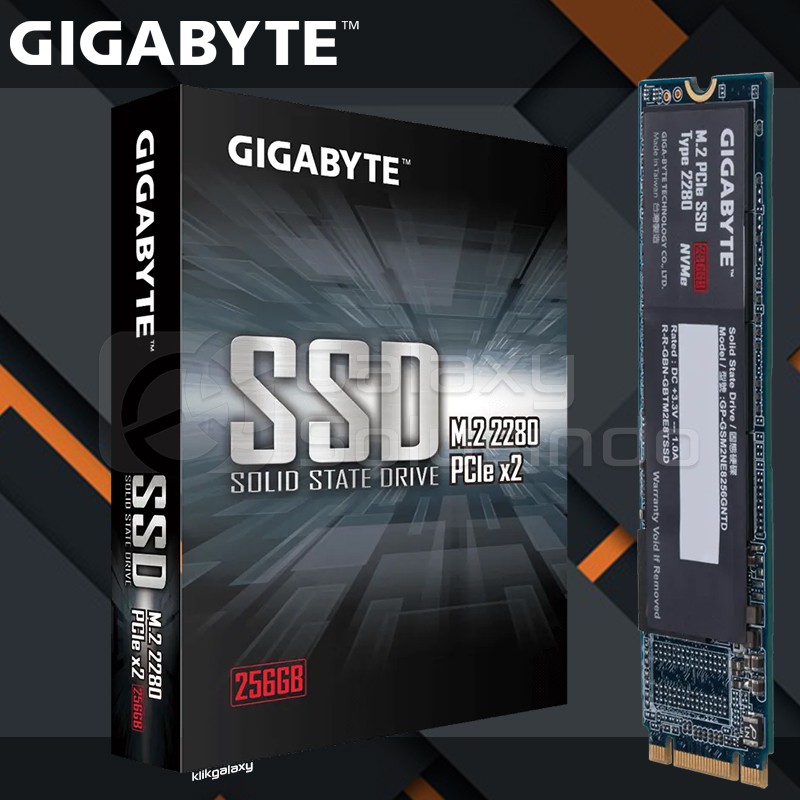

GIGABYTE 256GB M.2 NVMe SSD

Detail GIGABYTE 256GB M.2 NVMe SSD

GIGABYTE M.2 PCIe SSD 256GB

Form Factor: M.2 2280
Interface: PCI-Express 3.0 x2, NVMe 1.3
Total Capacity: 256GB*
Warranty: Limited 3-years
Sequential Read Speed : up to 1200 MB/s**
Sequential Write speed : up to 800 MB/s**
HMB (Host Memory Buffer) supported
TRIM & S.M.A.R.T supported

Specification :

Interface
PCI-Express 3.0 x2, NVMe 1.3
Form Factor
M.2 2280
Total Capacity
256GB
Warranty
Limited 3-year or 200TBW
NAND
NAND Flash
External DDR Cache
N/A
Sequential Read speed
Up to 1200 MB/s
Sequential Write speed
Up to 800 MB/s
Random Read IOPS
Up to 80K
Random Write IOPS
Up to 150K
Dimension
80 x 22 x 2.3 mm
Mean time between failure (MTBF)
1.5M hours
Power Consumption (Active)
Average : R : 2200mW ; W : 2100mW
Power Consumption (Idle)
50mW
Temperature (Operating)
0°C to 70°C
Temperature (Storage)
-40°C to 85°C
Note
* Test system configuration: configuration may vary by models, we will choose the latest platform for verification.
* Performance may vary based on SSD's firmware version and system hardware & configuration. Sequential performance measurements based on CrystalDiskMark v.5.1.2 and I0meter 1.1.0.
* Speeds based on internal testing. Actual performance may vary.
* TBW (Terabyte Written):Terabytes Written" is the total amount of data that can be written into an SSD before it is likely to fail.
* 1GB = 1 billion bytes. Actual useable capacity may vary.
* 3 years or 200 TBW, whichever comes first.
