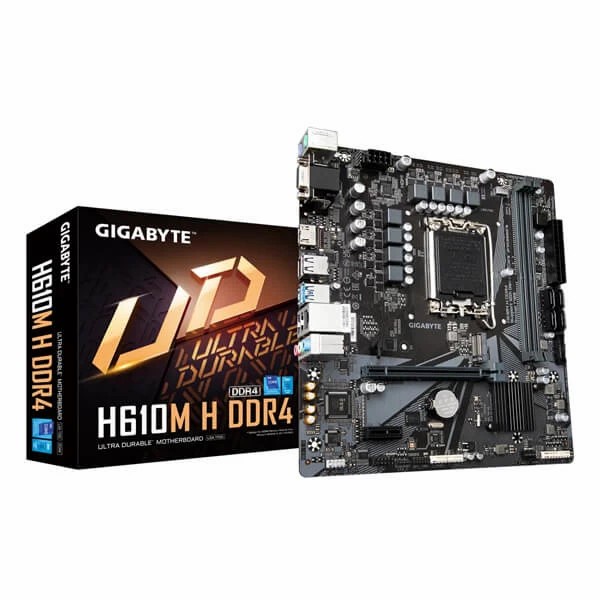

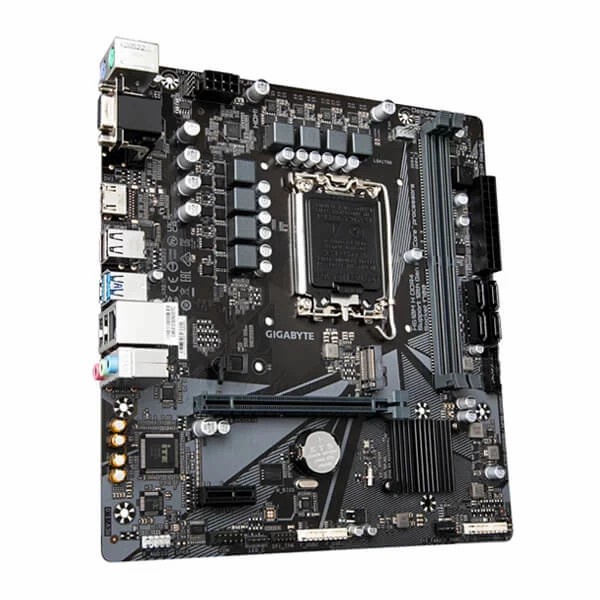

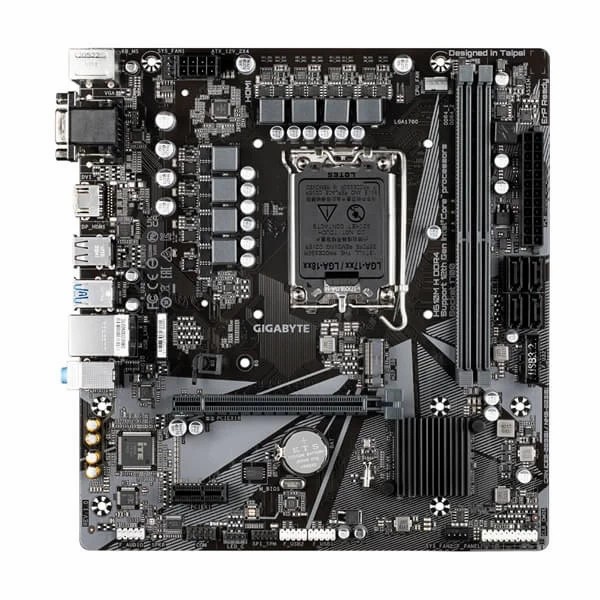

Gigabyte H610M H DDR4 Motherboard LGA 1700 H610 USB 3.2 SATA3 Resmi

Detail Gigabyte H610M H DDR4 Motherboard LGA 1700 H610 USB 3.2 SATA3 Resmi

Gigabyte H610M H DDR4 Motherboard LGA 1700 H610 USB 3.2 SATA3 Resmi

Specification:
CPU :
- LGA1700 socket: Support for 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors
- L3 cache varies with CPU

Chipset : Intel® H610 Express Chipset

Memory :
- Support for DDR4 3200/3000/2933/2666/2400/2133 MHz memory modules
- 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
- Dual channel memory architecture
- Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
- Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
- Support for Extreme Memory Profile (XMP) memory modules

Onboard Graphics :
- 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

Audio :
- Realtek® Audio CODEC
- High Definition Audio
- 2/4/5.1/7.1-channel

LAN : Intel® GbE LAN chip (1 Gbps/100 Mbps)

Expansion Slots :
- 1 x PCI Express x16 slot, running at x16
(The PCI Express x16 slot conforms to PCI Express 4.0 standard.)
- 1 x PCI Express x1 slot
(The PCI Express x1 slot conforms to PCI Express 3.0 standard.)

Storage Interface :
- 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 3.0 x4/x2 SSD support)
- 4 x SATA 6Gb/s connectors

USB
Chipset:
4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
4 x USB 2.0/1.1 ports on the back panel
Chipset+USB 2.0 Hub:
4 x USB 2.0/1.1 ports available through the internal USB headers

Form Factor : Micro ATX Form Factor; 23.0cm x 21.5cm

Garansi Resmi 3 Tahun

Gambar produk
