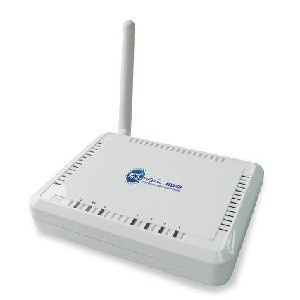

Engenius ESR1221N Router Wireless 1 Antena M

Detail Engenius ESR1221N Router Wireless 1 Antena M

RF Specification
Frequency Band 2.4002.484 GHz
Modulation Technology OFDM: BPSK, QPSK, 16-QAM, 64-QAM
DBPSK, DQPSK, CCK
Operation Channels 11 for North America, 14 for Japan, 13 for Europe
Wireless Mode 11b/11g/11n
Channel Selection (Setting varies by Country)
Channel Bandwidth (Auto, 20Mhz, 40Mhz)
Transmission Rate 11g: Best. 54, 48, 36, 24, 18, 12, 11, 9, 6, 5.5, 2, 1 in Mbps
Receive Sensitivity
IEEE 802.11n up to -85dBm
IEEE 802.11g up to -88dBm
IEEE 802.11b up to -90dBm
Available Transmit Power
IEEE 802.11n up to18dBm
IEEE 802.11g up to 18dBm
IEEE 802.11b up to 19dBm

Software Features
Topology Infrastructure
Operation Mode AP/Router
LAN
DHCP Server
Static Routing Table
UPNP
WAN PPTP PPPoE Static IP DHCP Client Clone MAC address
Router
NAT/ NAPT
Static Routing
Dynamic Route
Virtual server mapping
IP address mapping
Port Forwarding
Port Triggering
Special application
DNS Relay
DDNS
Time Zone(NTP client)
Firewall
Block ICMP Ping
DoS(Block ICMP Ping, Port scan, Sync Flood)
MAC/IP Filtering
ICMP Blocking
SPI (Stateful Packet Inspection)
DMZ (Demilitarized Zone) Host
Policy Based Parental Controls
Port Range / Service Filtering
Internet Domain Restriction
VPN VPN pass-through (PPTP, L2TP, IPSEC)
Wireless
Power saving(Green technology)
64/128 bit WEP Encryption
WPA Personal (WPA-PSK using TKIP or AES)
WPA Enterprise (WPA-EAP using TKIP)
802.1x Authenticator
Hide SSID in beacons
Wi-Fi Protection Setup (WPS)
WDS
ACL control
Best Channel selection
Speed/Bandwidth monitor
QoS
WMM
Application base
- Priority Queue
- Bandwidth Allocation
Management
Configuration Web-based configuration (HTTP)
Firmware Upgrade Via web

Gambar produk
