Detail emerson les paul with pushpull potensio short shaft jack wiring set original

prewired kit emerson les paul short shaft potentiometer

100% jaminan authentic original emerson parts
GARANS UANG KEMBALI FULL JIKA BARANG TIDAK SESUAI IKLAN .

bisa untuk semua gitar model LES PAUL


Description

Handwired in the USA

Wired 50s style for authentic vintage sound and feel.

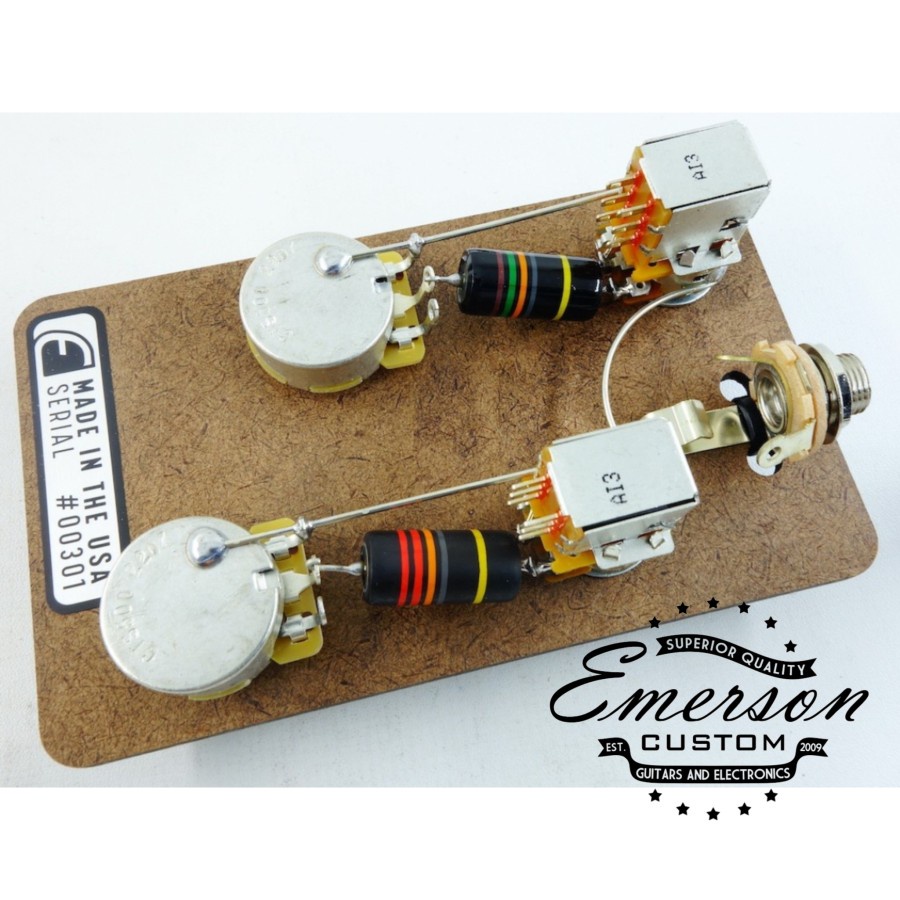

This is a prewired harness for USA Gibson Les Paul . Carefully wired “50’s Style” and grounded with vintage spec buss wire for a great vintage tone. For import guitars you may need to enlarge the holes for the higher quality US spec electronics to fit and also you may need US Spec knobs (to accept 24 teeth split shafts).

Each Tone pot has a DPDT push-pull pot with 6 lugs that are left Unsoldered so that the end user can wire it up however they like: (Ie; coil splitting, series-parallel, etc)

Includes

(2) 500K Split Shaft Potentiometers (Volume)

(2) 500K Emerson PRO Split Shaft Push-Pull Pots (Tone)

(1) Switchcraft J11 1/4 mono input jack (MADE IN USA)

(2) Emerson Bumblebee Paper in Oil Capacitors (1: 0.022uf Bridge, and 1: 0.015uf Neck)

(1) Wiring Diagram
