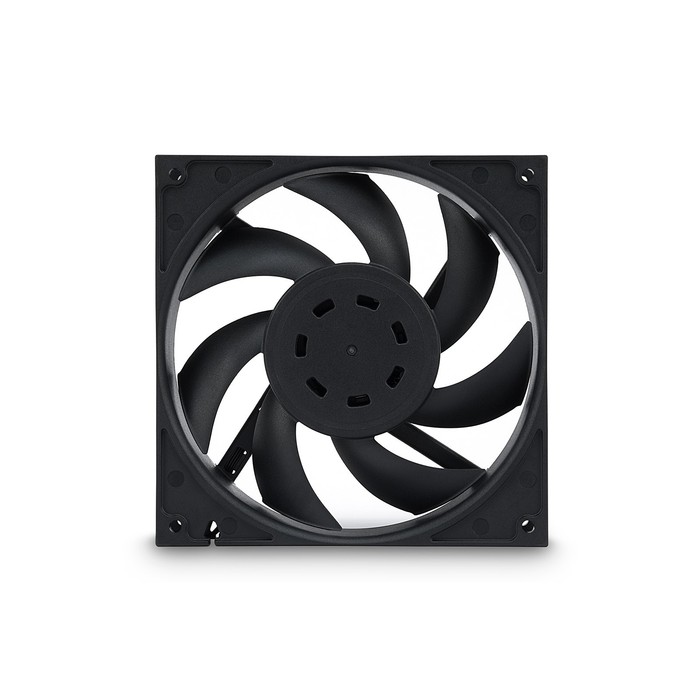

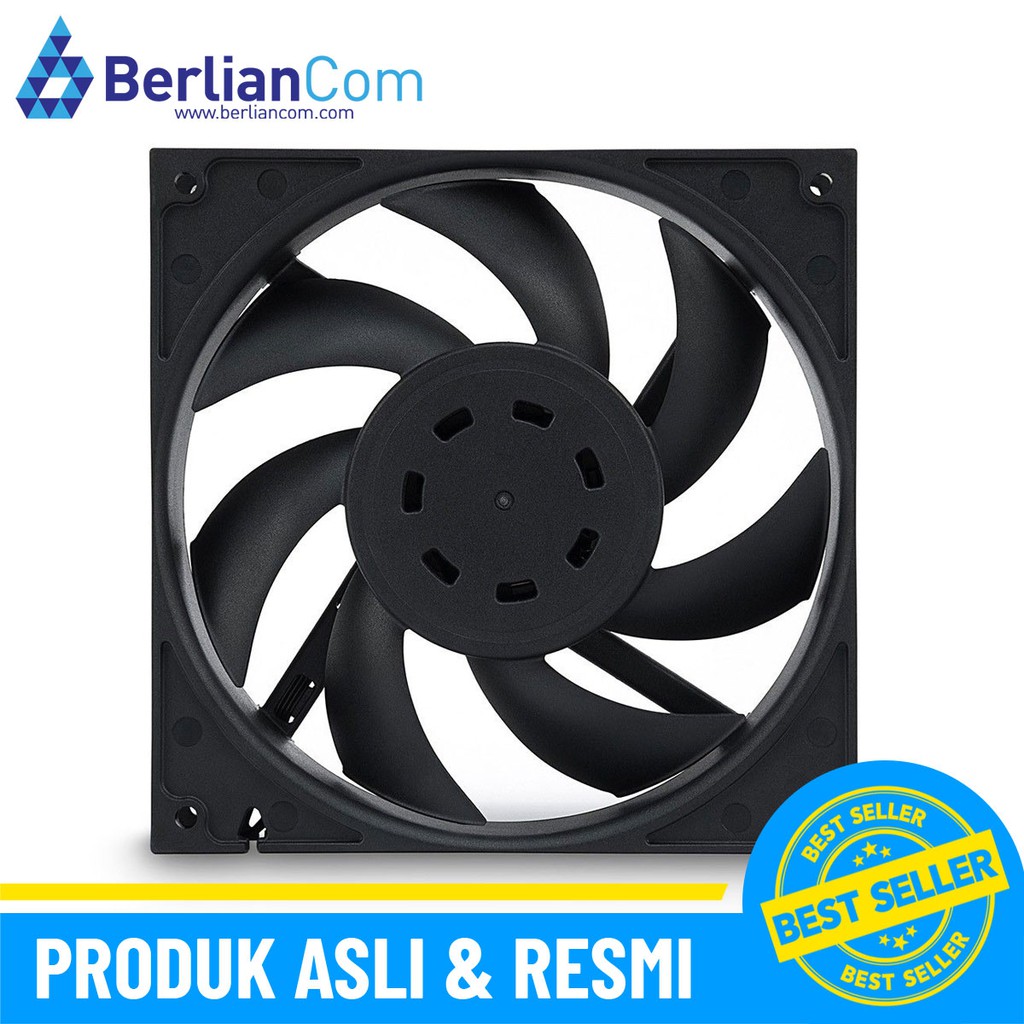

EKWB EK Vardar EVO 140ER Black BB (500-2000rpm)

Detail EKWB EK Vardar EVO 140ER Black BB (500-2000rpm)

High-static pressure / low noise profile - unlike other general-purpose computer cooling fans, the EK-Vardar family of fans is built specifically for computer liquid cooling systems, namely radiator cooling. The 7 fan blade design is optimized for high-pressure operation while maintaining the low noise profile throughout the whole operation range of the fan.

High-quality motor and bearing assembly - New electrical design, actively cooled motor windings and the Dual-Ball bearing with 50.000 hours of lifespan (MTBF) ensures uninterrupted operation for years to come.

Sealed-edge fan casing - The classic, yet the effective square shape of the fan casing provides optimal performance in either pull- (suction) or push (pressure) regime without hydraulic losses thus ensuring the optimal cooling capacity of your liquid cooling radiators.

Mechanical and electrical specifications:
- Maximum speed: 2000RPM (+/- 10%)
- Rated Voltage: 12V DC
- Power Draw: 3.86W
- PWM Duty Cycle: 25-100% - ER (Extended Range)
- Connector: 4-pin PWM header
- Shaft bearing: Dual-Ball bearing
- Bearing durability: 50.000 hrs @ 40°C (MTBF)
- Dimensions: 140 x 140 x 25 mm

Performance characteristics:
- Max Air Flow: 108CFM = 184 m³/h
- Static Pressure: 3.15mm H2O = 30.9 Pa
- Sleeved cable length: 400 mm
- Noise Level: 40.7 dBA (100% PWM)
