EKWB EK Quantum Magnitude D-RGB - AM4 Nickel + Plexi

Detail EKWB EK Quantum Magnitude D-RGB - AM4 Nickel + Plexi

Produk ini menggunakan Addressable RGB 3pin 5v

The EK-Quantum Magnitude is the new ultimate bespoke CPU water block from EK® that brings the highest cooling performance with the lowest possible flow restriction. The 115x version of the water block is using a specific combination of flow distribution insert, mounting pressure, and cold plate geometry tailored for the IHS and die layout of Intel® 115x socket processors.

Different from any mounting structure used by other water blocks that are usually black and mundane plates, the design accentuates an integrated X-shaped, three-dimensional frame with premium finishes that firmly cradles the main body in place while the screws are morphed into a sophisticated design detail.

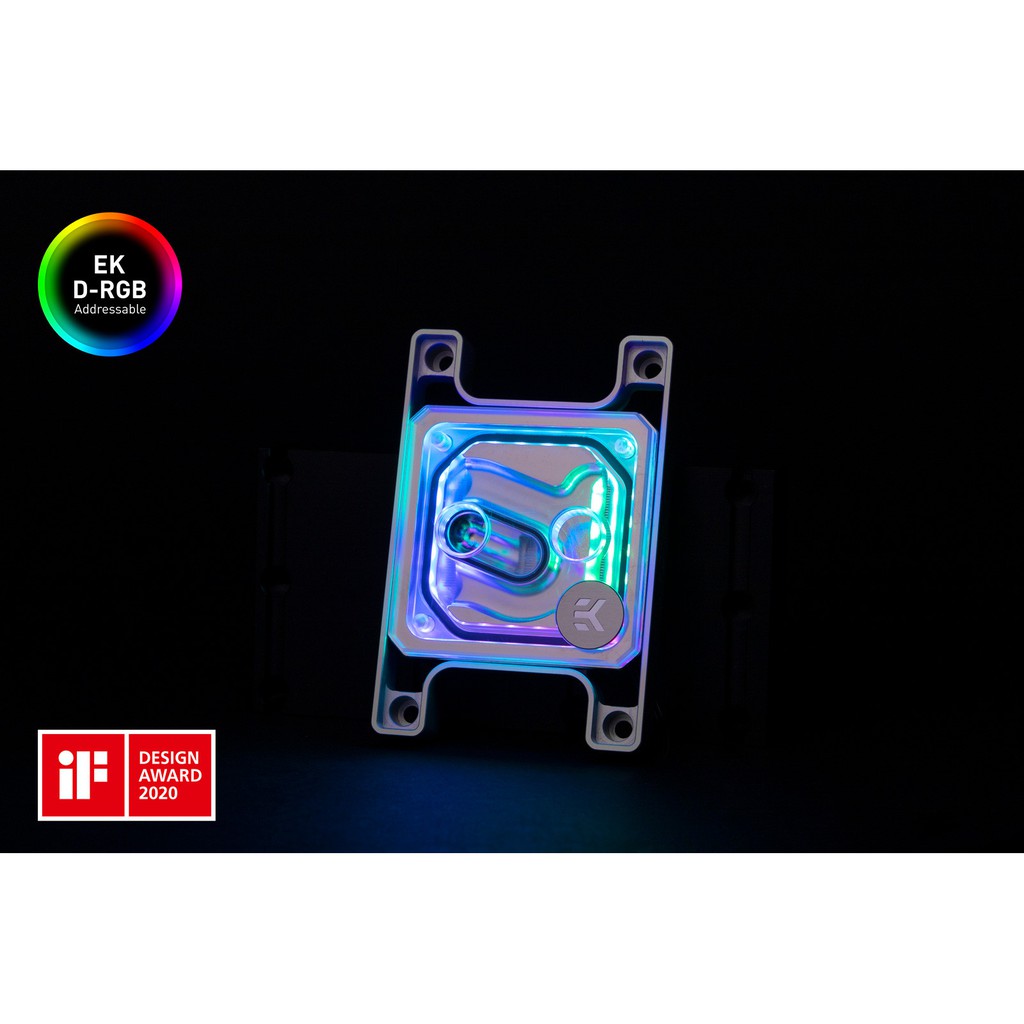

Elegantly concealed under the aesthetic inner frame is a LED strip boasting the incredible 30, individually addressable D-RGB diodes that shine inward and illuminate the translucent top. The addressable D-RGB is using an industry-standard 3-pin 5V digital LED connector (Pinout: +5V, Data, Blocked, Ground).

The Magnitude is supplied with an additional, thicker jet plate. If the user concludes that his CPU IHS is exceptionally concave (poor thermal paste spread after mounting), the curvature of the water block cold plate can be adjusted by using this secondary jet plate. It will make the center of the contact area bow by an additional 0.1mm outwards, for it to make better contact with the IHS.

Technical specifications:
- D-RGB cable length: 50cm
- D-RGB connector standard 3-pin (+5V, D, Blocked, Ground)

CPU socket compatibility:
- AMD AM4

Magnitude CPU socket compatibility AM4

Enclosed:
- EK-Quantum Magnitude Water Block
- Mounting mechanism with all necessary springs, screws, and washers
- AMD AM4 Socket compatible backplate
- Additional jet plate - 0.6P
- Thermal Grizzly Hydronaut (1.0g) Thermal Paste
- Allen (Hex) key - 2.5mm

Made in Slovenia, EU
