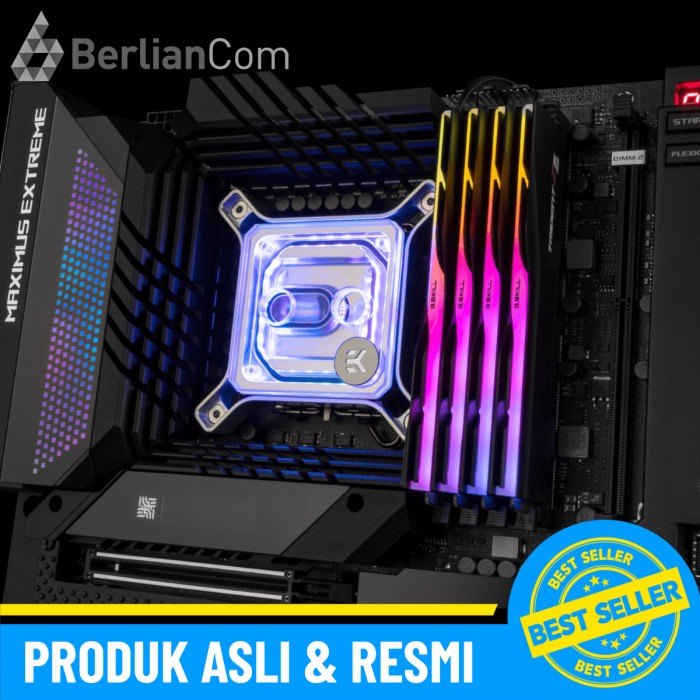

EKWB EK Quantum Magnitude D-RGB - 1700 Nickel + Plexi CPU Water Block

Detail EKWB EK Quantum Magnitude D-RGB - 1700 Nickel + Plexi CPU Water Block

EKWB EK Quantum Magnitude D-RGB - 1700 Nickel + Plexi CPU Water Block

The EK-Quantum Magnitude is the ultimate bespoke CPU water block from EK® that brings the highest cooling performance with the lowest possible flow restriction. The 1700 version of the water block is using a specific combination of flow distribution insert, mounting pressure, and cold plate geometry tailored for the IHS and die layout of Intel® 12th Generation Core CPUs.

Elegantly concealed under the aesthetic inner frame is a LED strip boasting the incredible 30, individually addressable D-RGB diodes that shine inward and illuminate the translucent top. The addressable D-RGB is using an industry-standard 3-pin 5V digital LED connector (Pinout: +5V, Data, Blocked, Ground).

The Magnitude is supplied with an additional, thicker jet plate. If the user concludes that his CPU IHS is exceptionally concave (poor thermal paste spread after mounting), the curvature of the water block cold plate can be adjusted by using this secondary jet plate. It will make the center of the contact area bow by an additional 0.1mm outwards, for it to make better contact with the IHS.

Technical specifications:
- D-RGB cable length: 50cm
- D-RGB connector standard 3-pin (+5V, D, Blocked, Ground)

CPU socket compatibility:
- Intel LGA-1700

Enclosed:
- EK-Quantum Magnitude Water Block
- Mounting mechanism with all necessary springs, screws, and washers
- Stock Jet plate (pre-installed) - 0.6C
- Thermal Grizzly Hydronaut (1.0g) Thermal Paste

Made in Slovenia, EU

CATATAN PENTING :
* Stock terbatas, silahkan konfirmasi terlebih dahulu sebelum membeli.
* Barang Baru.
* Harga belum termasuk ongkos kirim.
* Disarankan menggunakan asuransi.
* PRODUK INI TIDAK ADA GARANSI dan TIDAK BISA RETUR
* Silahkan sertakan Video Unboxing dari awal terima barang saat melakukan komplain, Tanpa video Unboxing kami tidak akan menerima komplain kekurangan dan kerusakan apapun.
* MEMBELI BERARTI ANDA SUDAH MEMBACA DAN SETUJU DENGAN ATURAN INI.
