EKWB EK Quantum Kinetic TBE 200 D5 PWM D-RGB - Acetal

Detail EKWB EK Quantum Kinetic TBE 200 D5 PWM D-RGB - Acetal

Deskripsi EKWB EK Quantum Kinetic TBE 200 D5 PWM D-RGB - Acetal
RESERVOIR INI SUDAH TERMASUK POMPA D5

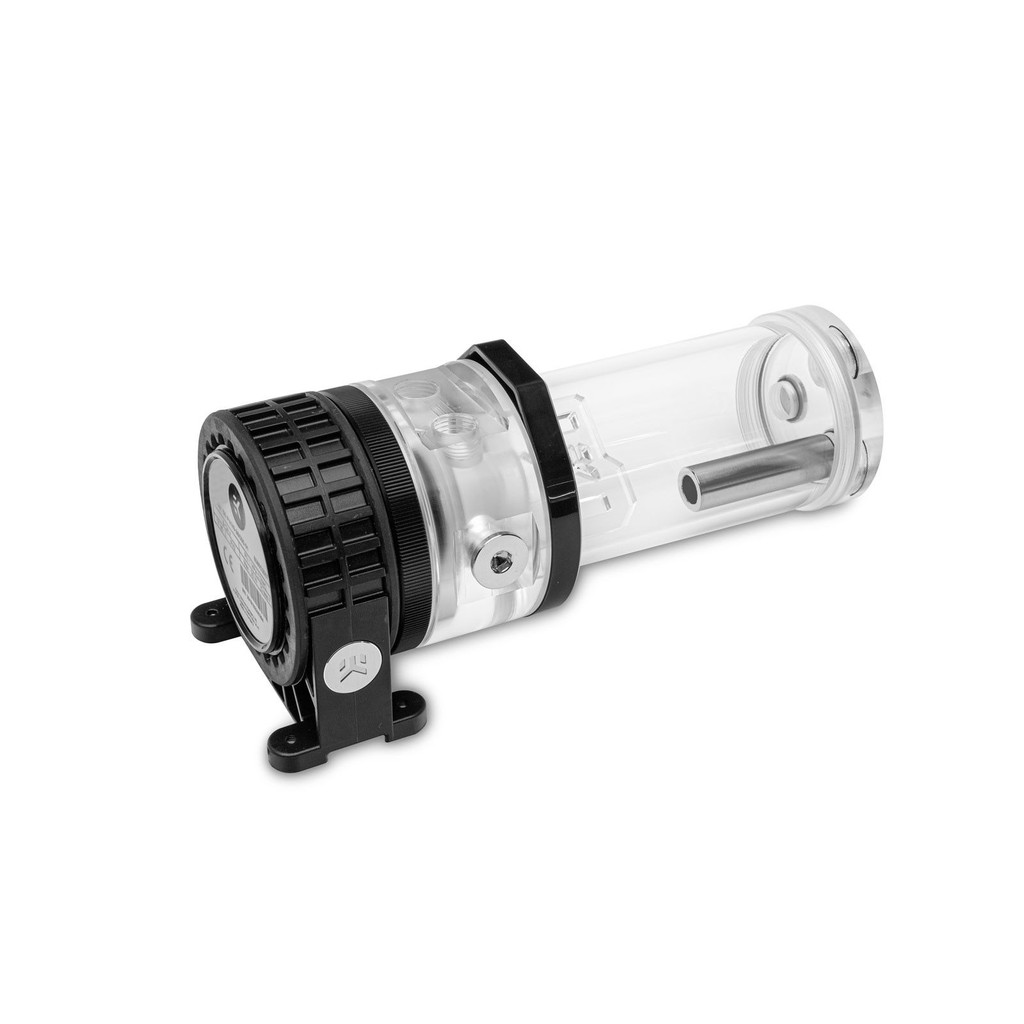

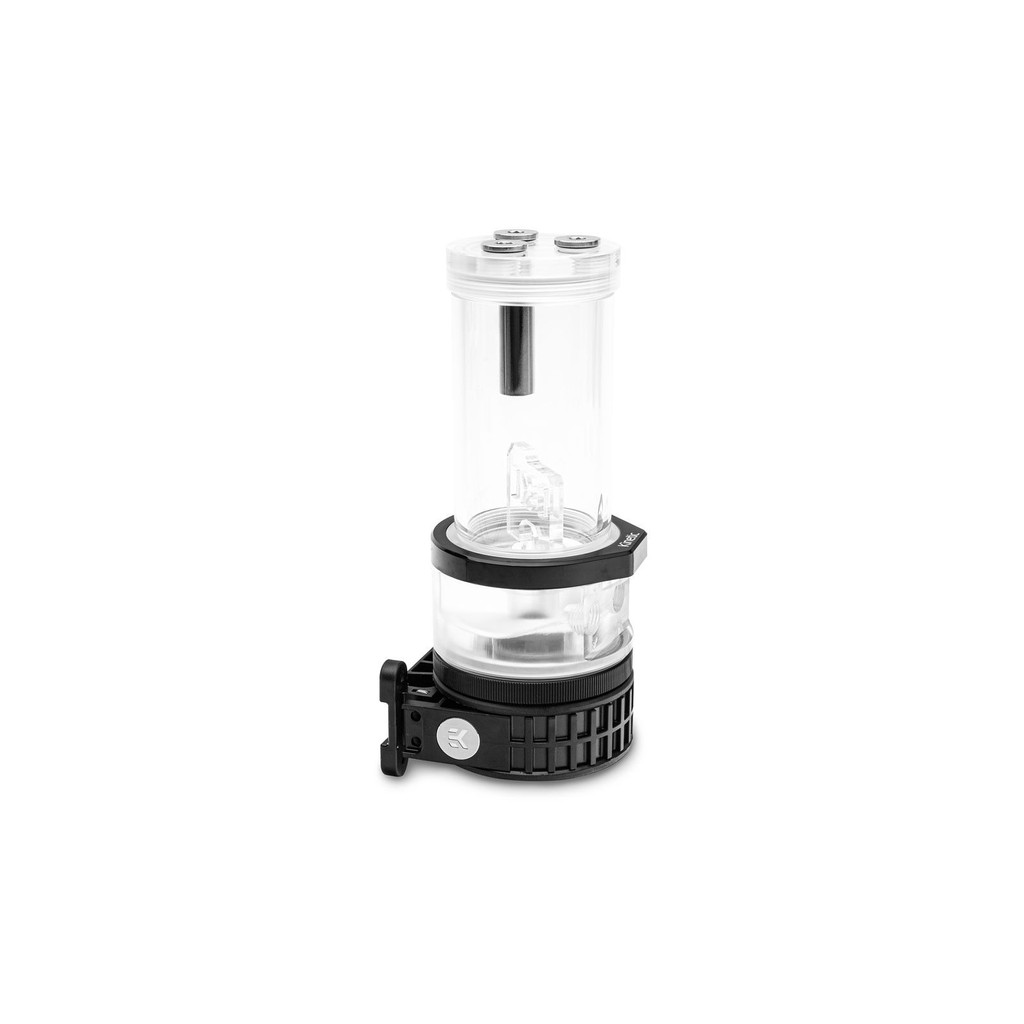

EK-Quantum Kinetic TBE D5 combo unit is the revolution of the most popular pump-reservoir assembly design on the market. The new Kinetic combo units are part of the EK Quantum Line of products and come with sophisticated addressable D-RGB lighting implementation and a genuine D5 pump! The reservoir is equipped with a total of six G1/4“ ports so that users can choose the most optimal setup for their liquid cooling loops.

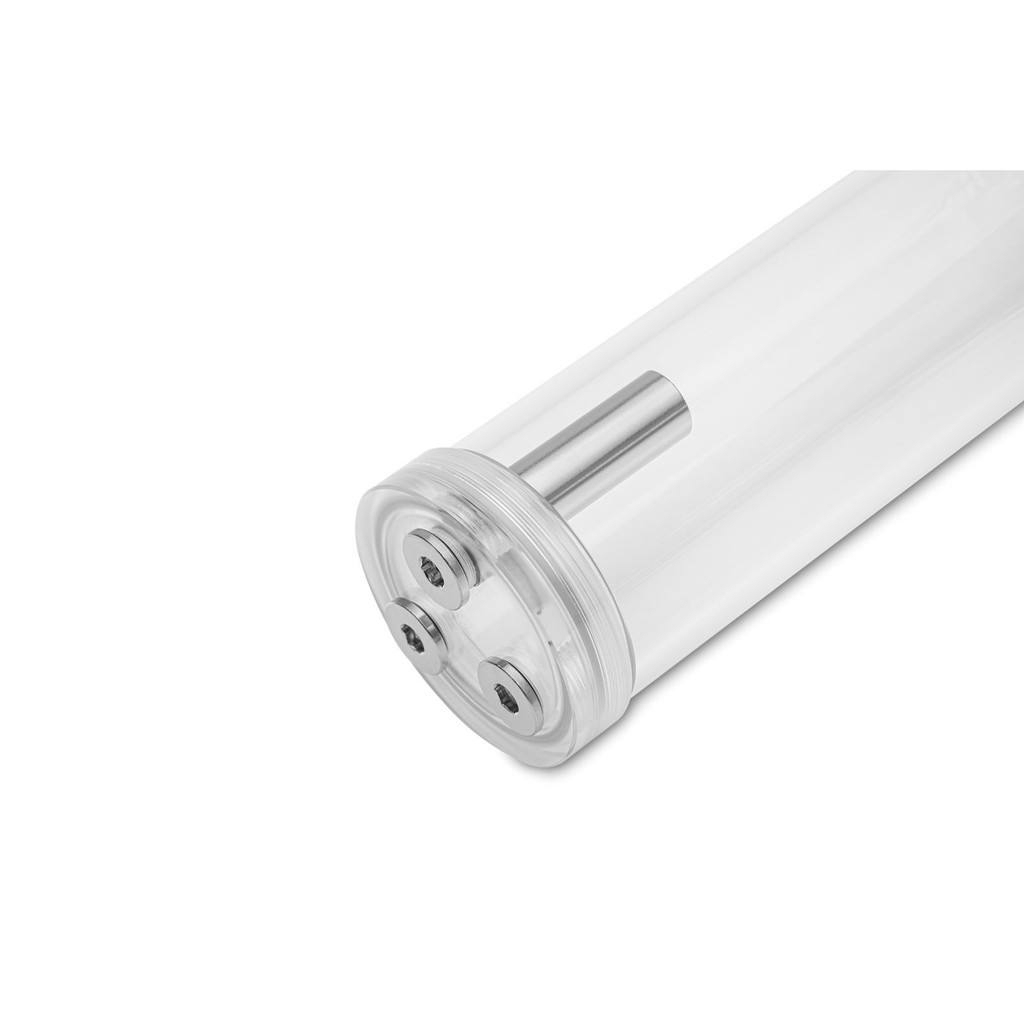

The 60mm diameter tube is made of high-quality acrylic material just like the reservoir bottom and top while the sealing is performed by a quality EPDM o-ring. Proper LED implementation is one of the main focus points of EK so that there are as few visible "LED hotspots" as possible.

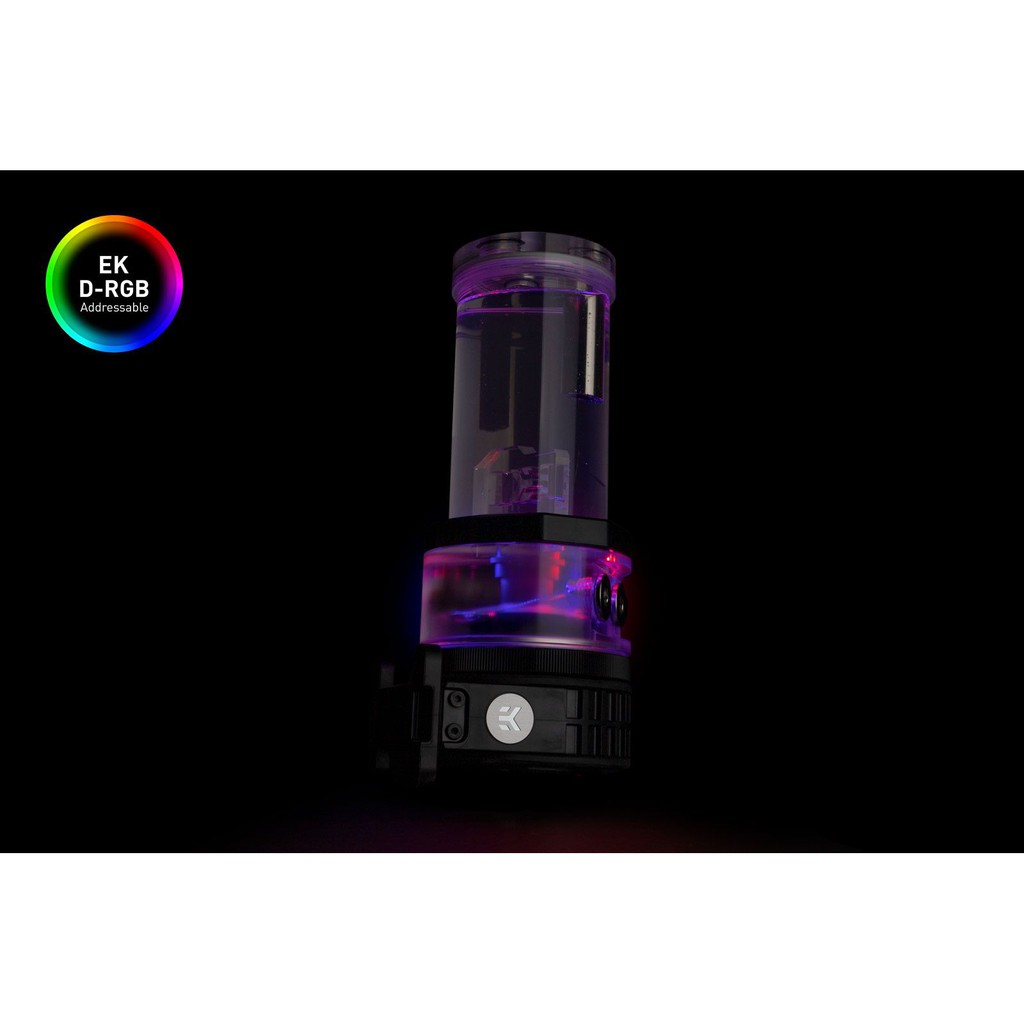

The integrated addressable D-RGB is compatible with popular RGB sync technologies from all major motherboard manufacturers. The arrow marking on the 3-pin LED connector is to be aligned with the +5V marking on the D-RGB header.

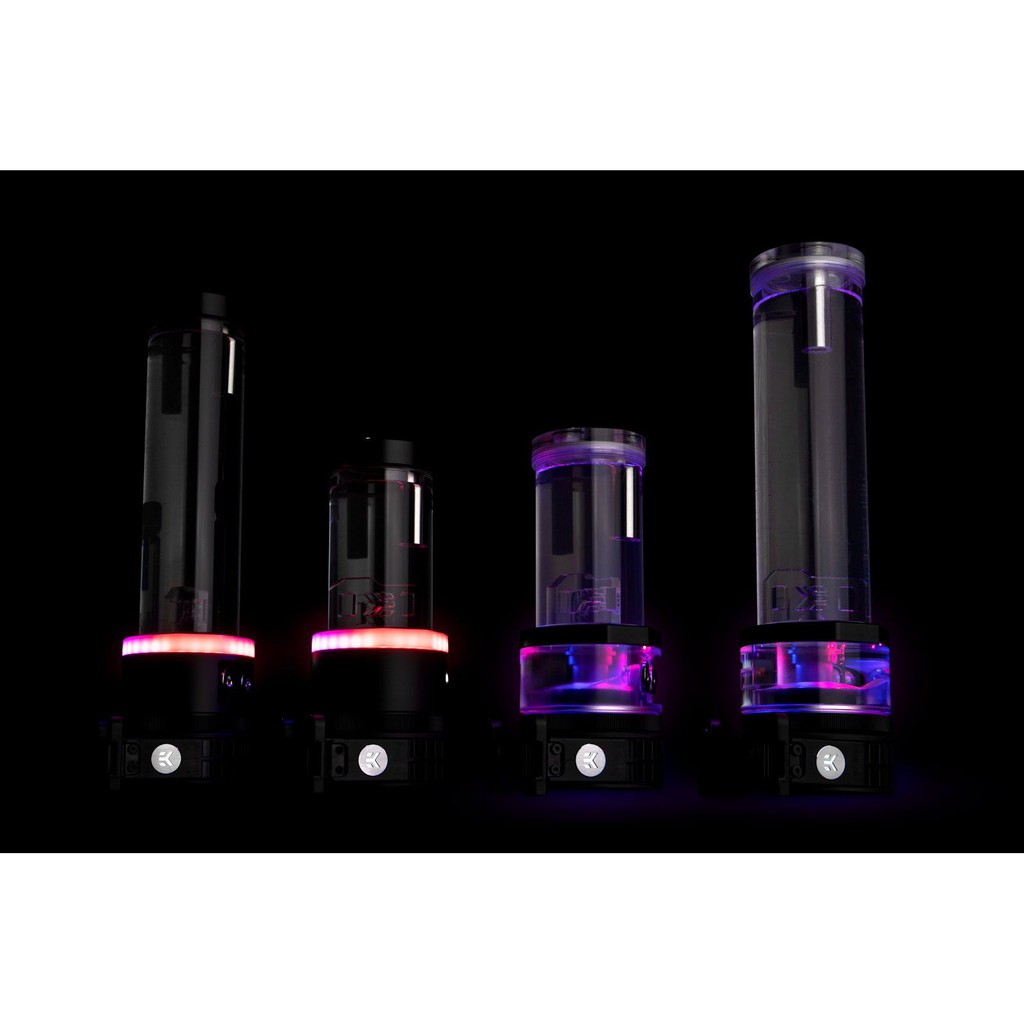

This reservoir can be easily upgraded with longer acrylic tubes used by EK-RES X3 series reservoirs.

Pump electrical and mechanical properties:
- Motor: Electronically commuted spherical motor
- Rated voltage: 12V DC
- Power consumption: 23W
- Maximum pressure head: 3.9m
- Maximum flow: 1500L/h
- Maximum system temperature: 60°C
- Materials: Stainless steel, PPS-GF40, EPDM O-rings, hard coal
- Power connector: 4-Pin Molex- and 4-Pin PWM FAN connector

Technical specifications:
- Reservoir diameter 60mm
- Reservoir free volume: 205mL
- Overall unit height: 200mm
- Mounting hole pattern: 65x34mm
- D-RGB connector standard 3-pin (5+, Digital, Blocked, Ground)

Operational regime:
- PWM duty cycle: ~ 20-100%
- Default behavior: Runs at 100% duty cycle when no PWM feedback signal is present

Enclosed:
- EK-Quantum Kinetic TBE 200 D5 PWM D-RGB
- Mounting clip with rubber insert
- Self-adhesive mounting hole pattern sticker
- Mounting mechanism (incl. required Allen keys)
- Installation manual
