EKWB EK Quantum Kinetic TBE 160 DDC PWM D-RGB - Plexi

Detail EKWB EK Quantum Kinetic TBE 160 DDC PWM D-RGB - Plexi

RESERVOIR INI SUDAH TERMASUK POMPA DDC

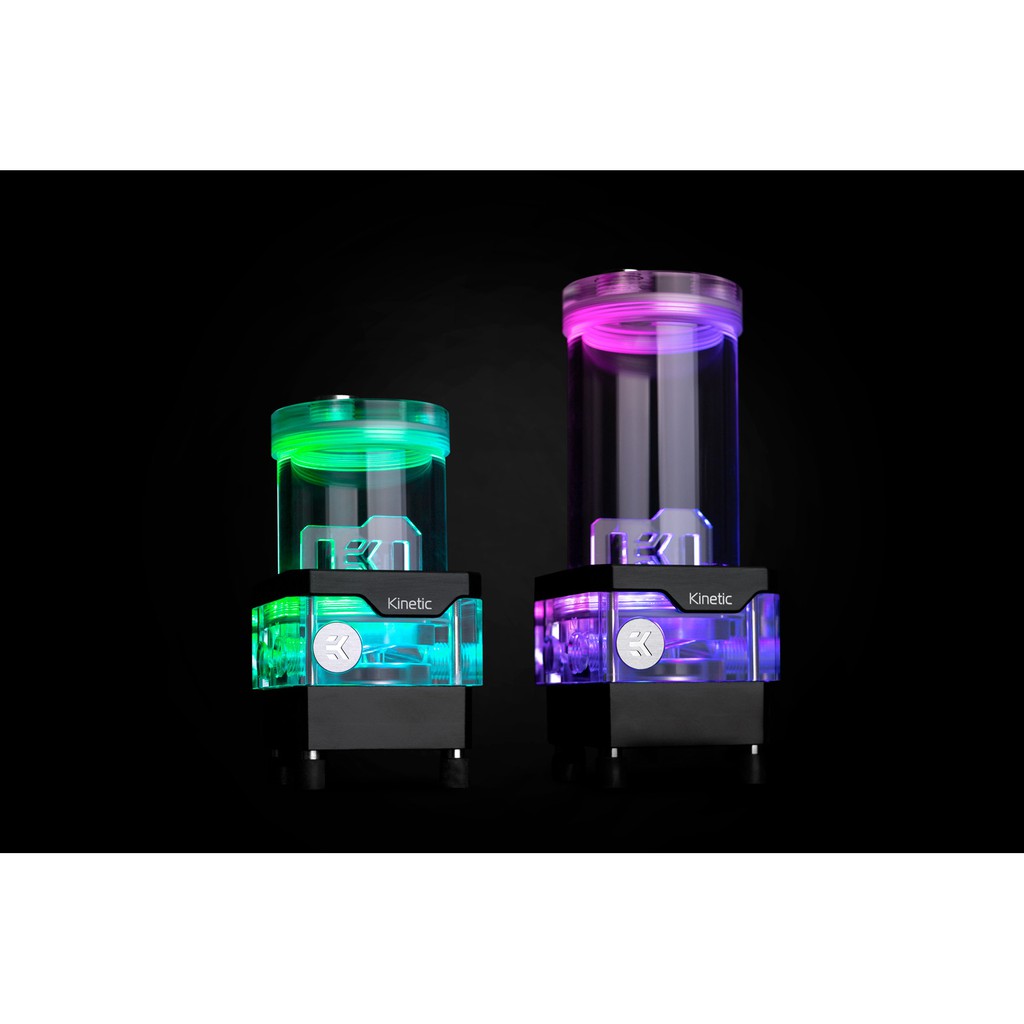

EK-Quantum Kinetic TBE 160 DDC PWM D-RGB combo unit is a pump-reservoir assembly that is based upon a market-proven DDC pump that brings the ultimate power in a small form factor. The new Kinetic combo units are part of the EK Quantum Line of products and come with sophisticated addressable D-RGB lighting implementation and a genuine DDC 3.2 pump that is a favorite among the small-form-factor PC enthusiast community! The reservoir is equipped with a total of six G1/4“ ports so that users can choose the most optimal setup for their liquid cooling loops. The DDC motor is cooled by the integrated heatsink on the bottom.

This reservoir can be easily upgraded with longer acrylic tubes used by EK-RES X3 series reservoirs.

Technical specifications:
- Reservoir diameter 60mm
- Reservoir free volume: ~205mL
- Overall unit height: 160mm
- Mounting hole pattern: 50x50mm
- D-RGB connector standard 3-pin (+5V, Digital, Blocked, Ground)

Pump electrical and mechanical properties:
- Dimensions (W x D x H): 90 x 62 x 38 mm
- Motor: Electronically commuted ball bearing motor
- Rated voltage: 12 V DC
- Power consumption: 18 W
- Maximum head pressure: up to 5.2m
- Maximum flow rate: up to 1000 L/h
- Maximum liquid temperature: 60 °C
- Materials: Stainless steel, PPS-GF40, EPDM O-rings, Aluminium oxide, hard coal
- Power connector: 4-Pin Molex- and 4-Pin PWM FAN connector

Enclosed:
- EK-Quantum Kinetic TBE 160 DDC PWM D-RGB
- Mounting mechanism
- Installation manual
Made in Slovenia - EU!
Pump motor made in Hungary - EU!

CATATAN PENTING :
* Stock terbatas, silahkan konfirmasi terlebih dahulu sebelum membeli.
* Barang Baru.
* Harga belum termasuk ongkos kirim.
* Disarankan menggunakan asuransi.
* Silahkan sertakan Video Unboxing dari awal terima barang saat melakukan komplain, Tanpa video Unboxing kami tidak akan menerima komplain kekurangan dan kerusakan apapun.
* MEMBELI BERARTI ANDA SUDAH MEMBACA DAN SETUJU DENGAN ATURAN INI.

Gambar produk
