EKWB EK Quantum Kinetic FLT 360 D5 PWM D-RGB - Plexi

Reservoir ini sudah termasuk pompa D5

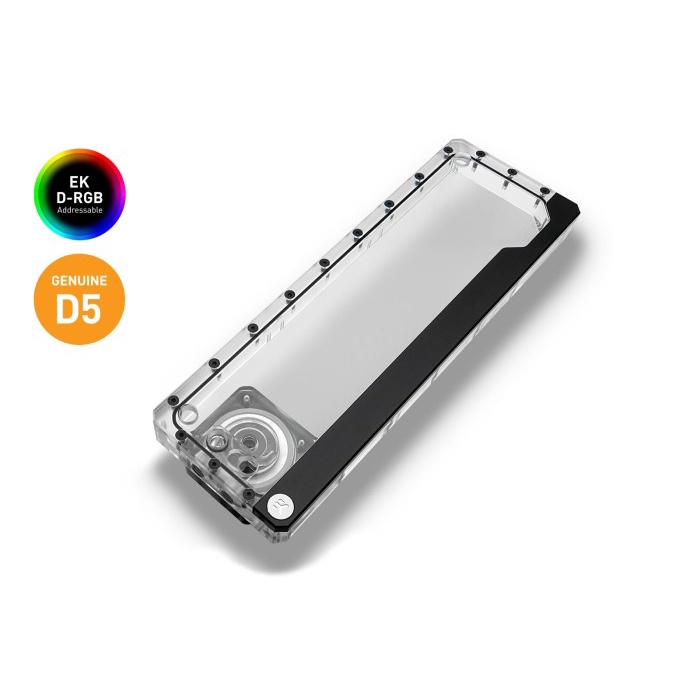

All new Flat (FLT) series EK-Quantum Kinetic FLT D5 pump-reservoir units! The new Kinetic combo units are part of the EK Quantum Line of products and come with sophisticated addressable D-RGB lighting implementation and a genuine D5 pump! Each unit is featuring standard 120mm fan mounting holes for maximum flexibility during the installation.

Technical specifications:

- Size (HxWxT): 365x120x86mm (with the mounting system)
- Capacity: ~435ml
- D-RGB connector 3-pin 5V digital LED header (Pinout: +5V, D, Blocked, Ground)

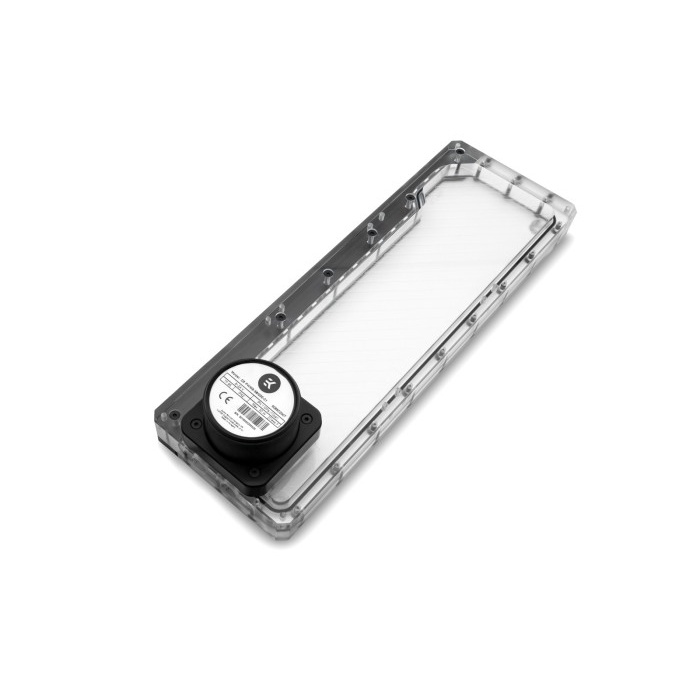

Pump electrical and mechanical properties:
- Motor: Electronically commuted spherical motor
- Rated voltage: 12V DC
- Power consumption: 23W
- Maximum pressure head: 3.9m
- Maximum flow: 1500L/h
- Maximum system temperature: 60°C
- Materials: Stainless steel, PPS-GF40, EPDM O-rings, Aluminium oxide, hard coal
- Power connector: SATA power and 4-Pin PWM FAN connector

Operational regime:

- PWM duty cycle: ~ 20-100%
- Default behavior: Runs at 100% duty cycle when no PWM feedback signal is present

Enclosed:

- EK-Quantum Kinetic FLT 360 PWM D5 D-RGB
- Mounting mechanism with all necessary screws for 120mm fan mounting
- Pair of EK reservoir holders with mounting screws
- 4 × G1/4 Plugs
- 1 × Allen key for reservoir holders

Made in Slovenia - EU!

Pump motor made in Hungary - EU!

CATATAN PENTING :
* Stock terbatas, silahkan konfirmasi terlebih dahulu sebelum membeli.
* Barang Baru.
* Harga belum termasuk ongkos kirim.
* Garansi 1 tahun berlaku untuk pompa. kerusakan fisik pecah / retak tidak tercover garansi
* Disarankan menggunakan asuransi.
* Silahkan sertakan Video Unboxing dari awal terima barang saat melakukan komplain, Tanpa video Unboxing kami tidak akan menerima komplain kekurangan dan kerusakan apapun.
* MEMBELI BERARTI ANDA SUDAH MEMBACA DAN SETUJU DENGAN ATURAN INI.
