EKWB EK Quantum Kinetic FLT 80 DDC PWM DRGB - Plexi (Include PUMP)

Detail EKWB EK Quantum Kinetic FLT 80 DDC PWM DRGB - Plexi (Include PUMP)

EKWB EK Quantum Kinetic FLT 80 DDC PWM DRGB - Plexi Include PUMP

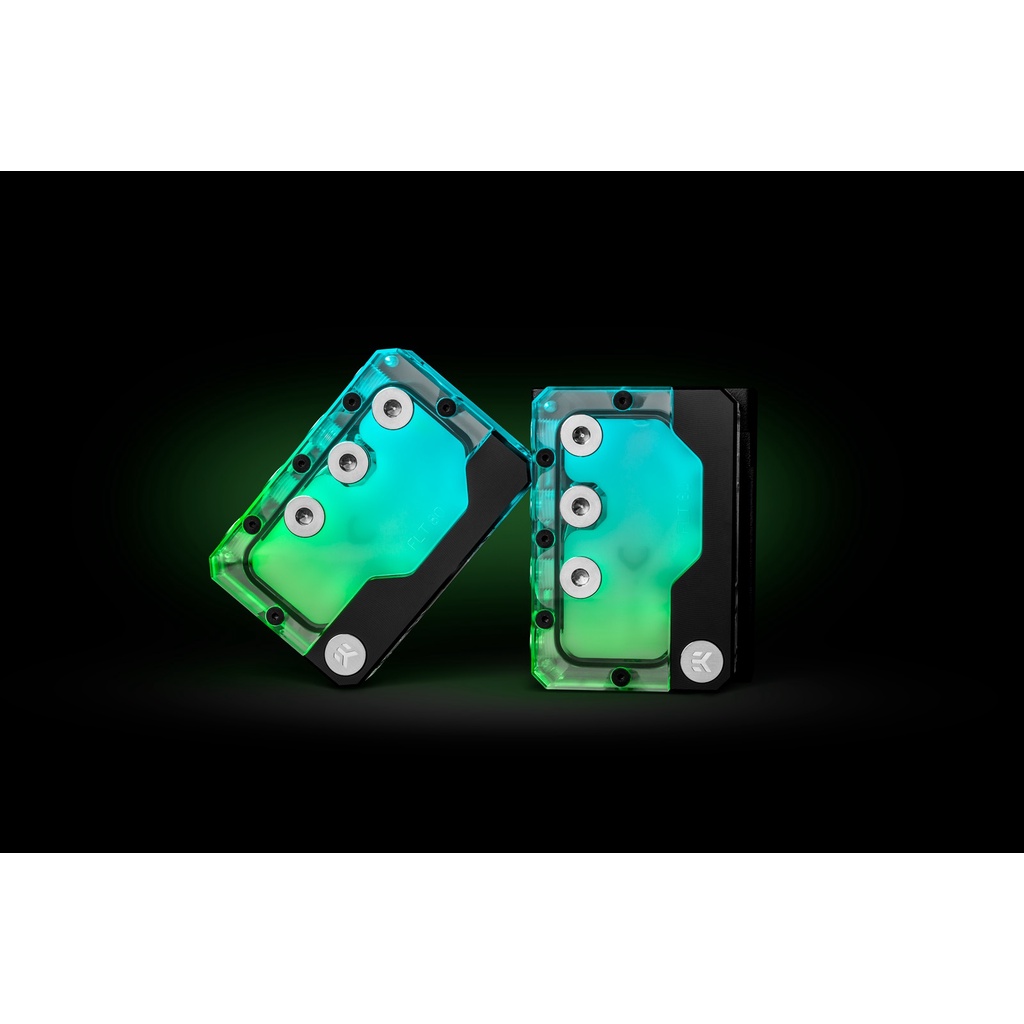

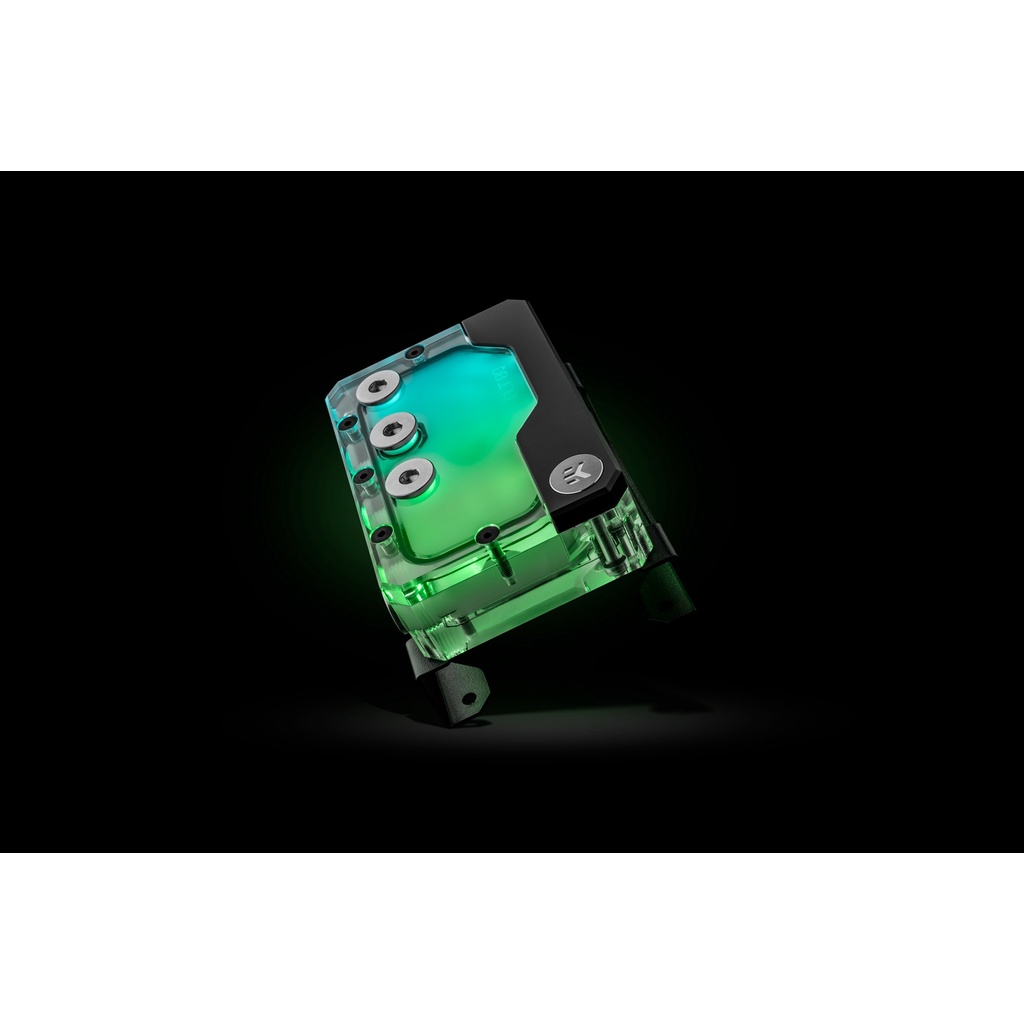

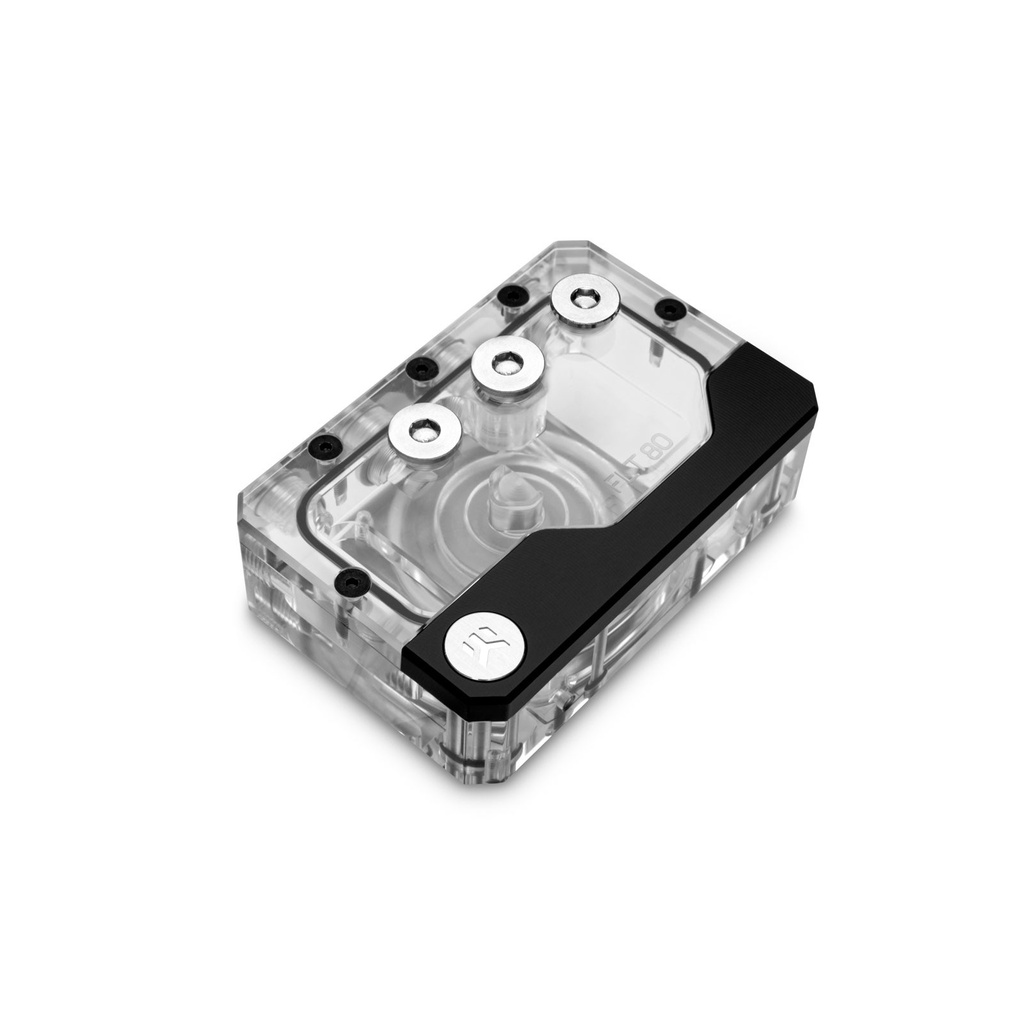

The new FLT 80 series EK-Quantum Kinetic FLT DDC pump-reservoir units! The new Kinetic combo units are part of the EK Quantum Line of products and come with sophisticated addressable D-RGB lighting implementation and a genuine DDC pump! The unit features standard 120mm and 80mm fan mounting holes for maximum flexibility during the installation. The side of the unit has two more M4 threaded screw holes, 65mm apart, that are also present on the EK-Loop Uni Pump Reservoir Brackets, which are sold separately.

Technical specifications:
- Size (HxWxT): 120x80x56mm (with the mounting system)
- D-RGB connector 3-pin 5V digital LED header (Pinout: +5V, D, Blocked, Ground)

Pump electrical and mechanical properties:
- Motor: Electronically commuted ball bearing motor
- Rated voltage: 12 V DC
- Power consumption: 18 W
- Maximum head pressure: up to 5.2m
- Maximum flow rate: up to 1000 L/h
- Maximum liquid temperature: 60 °C
- Materials: Stainless steel, PPS-GF40, EPDM O-rings, Aluminium oxide, hard coal
- Power connector: SATA power and 4-Pin PWM FAN connector

Operational regime:
- PWM duty cycle: ~ 20-100%
- Default behavior: Runs at 100% duty cycle when no PWM feedback signal is present

Enclosed:
- EK-Quantum Kinetic FLT 80 PWM DDC D-RGB
- Mounting mechanism
- 7 × G1/4 Plugs
- 1 × EK-Loop Multi Allen Key (6mm, 8mm, 9mm)

CATATAN PENTING :
* Stock terbatas, silahkan konfirmasi terlebih dahulu sebelum membeli.
* Barang Baru.
* Harga belum termasuk ongkos kirim.
* Garansi 1 tahun berlaku untuk pompa. kerusakan fisik pecah / retak tidak tercover garansi
* Disarankan menggunakan asuransi.
* Silahkan sertakan Video Unboxing dari awal terima barang saat melakukan komplain, Tanpa video Unboxing kami tidak akan menerima komplain kekurangan dan kerusakan apapun.
* MEMBELI BERARTI ANDA SUDAH MEMBACA DAN SETUJU DENGAN ATURAN INI.
