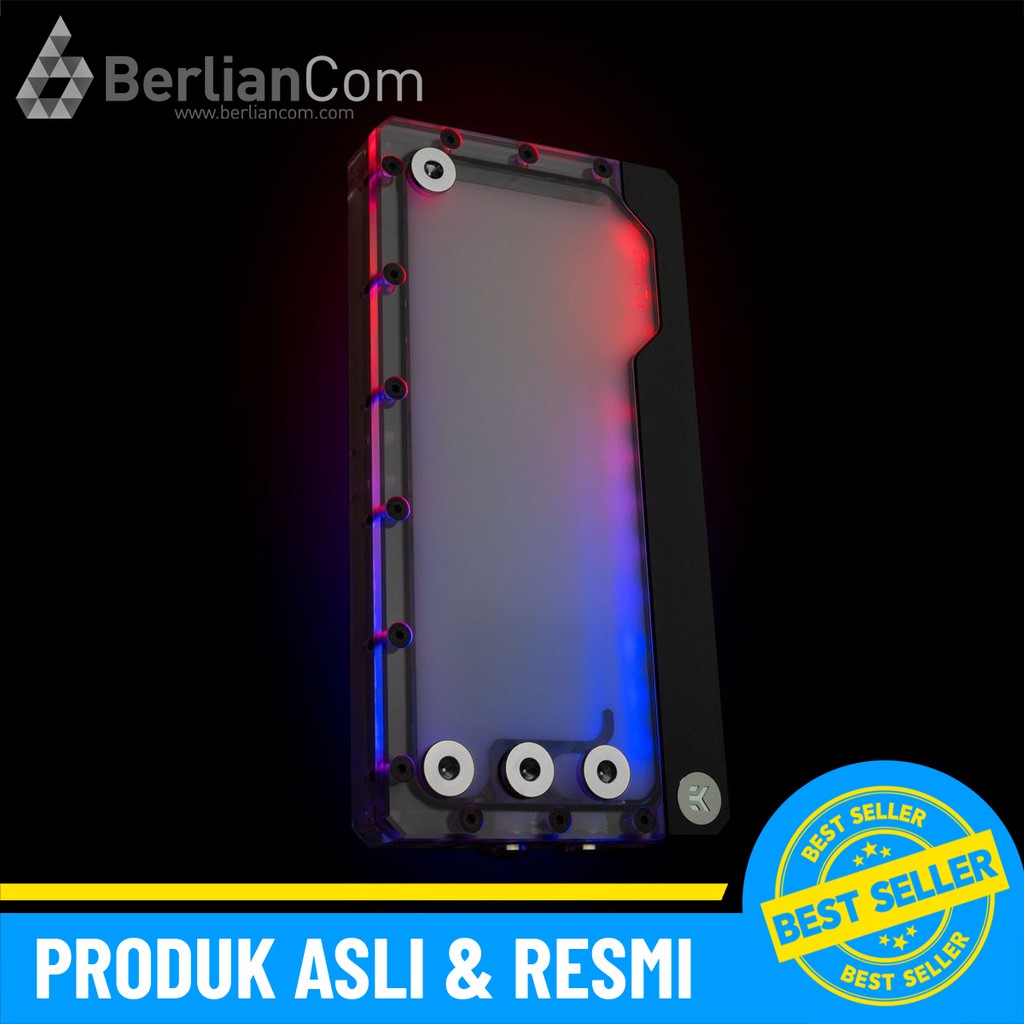

EKWB EK Quantum Kinetic FLT 240 DDC PWM DRGB - Plexi (Include PUMP)

Detail EKWB EK Quantum Kinetic FLT 240 DDC PWM DRGB - Plexi (Include PUMP)

RESERVOIR INI SUDAH TERMASUK POMPA DDC

All new Flat (FLT) series EK-Quantum Kinetic FLT DDC pump-reservoir units! The new Kinetic combo units are part of the EK Quantum Line of products and come with sophisticated addressable D-RGB lighting implementation and a genuine DDC pump! Each unit is featuring standard 120mm fan mounting holes for maximum flexibility during the installation.

These combos are paired with powerful yet compact 3.2 PWM DDC pumps but are compatible with D5 style pumps as well.

Technical specifications:
- Size (HxWxT): 245x120x58mm (with mounting system)
- Capacity: ~265ml
- D-RGB connector 3-pin 5V digital LED header (Pinout: +5V, D, Blocked, Ground)

Pump electrical and mechanical properties:
- Motor: Electronically commuted ball bearing motor
- Rated voltage: 12 V DC
- Power consumption: 18 W
- Maximum head pressure: up to 5.2m
- Maximum flow rate: up to 1000 L/h
- Maximum liquid temperature: 60 °C
- Materials: Stainless steel, PPS-GF40, EPDM O-rings, Aluminium oxide, hard coal
- Power connector: 4-Pin Molex- and 4-Pin PWM FAN connector

Operational regime:
- PWM duty cycle: ~ 20-100%
- Default behavior: Runs at 100% duty cycle when no PWM feedback signal is present

Enclosed:
- EK-Quantum Kinetic FLT 240 PWM D-RGB
- Mounting mechanism with all necessary screws for 120mm fan mounting
- Pair of EK reservoir holders with mounting screws
- 4 × G1/4 Plugs
- 1 × Allen key for reservoir holders

Made in Slovenia - EU!

CATATAN PENTING :
* Stock terbatas, silahkan konfirmasi terlebih dahulu sebelum membeli.
* Barang Baru.
* Harga belum termasuk ongkos kirim.
* Garansi 1 tahun berlaku untuk pompa. kerusakan fisik pecah / retak tidak tercover garansi
* Disarankan menggunakan asuransi.
* Silahkan sertakan Video Unboxing dari awal terima barang saat melakukan komplain, Tanpa video Unboxing kami tidak akan menerima komplain kekurangan dan kerusakan apapun.
* MEMBELI BERARTI ANDA SUDAH MEMBACA DAN SETUJU DENGAN ATURAN INI.

Gambar produk
