EKWB EK Quantum Kinetic FLT 120 D5 PWM DRGB - Plexi (Include PUMP)

Detail EKWB EK Quantum Kinetic FLT 120 D5 PWM DRGB - Plexi (Include PUMP)

Deskripsi EKWB EK Quantum Kinetic FLT 120 D5 PWM DRGB - Plexi (Include PUMP)
Stok Terbatas Silahkan konfirmasi sebelum membeli. RESERVOIR INI SUDAH TERMASUK POMPA D5

All new Flat (FLT) series EK-Quantum Kinetic FLT D5 pump-reservoir units! The new Kinetic combo units are part of the EK Quantum Line of products and come with sophisticated addressable D-RGB lighting implementation and a genuine D5 pump! Each unit is featuring standard 120mm fan mounting holes for maximum flexibility during the installation. The reservoir is equipped with a total of six G1/4“ ports so that users can choose the most optimal setup for their liquid cooling loops.

EK-Quantum Kinetic FLT D5 series pump-reservoir units are equipped with genuine D5 pumps, made in Europe, which are capable of delivering flow rates of 1500 liters per hour with a maximum head pressure up to 3.9 meters! These new FLT series combo units are available in three different sizes of 120mm, 240mm, and 360mm.

The combo unit is equipped with a total of six industry-standard G1/4" ports

Technical specifications:

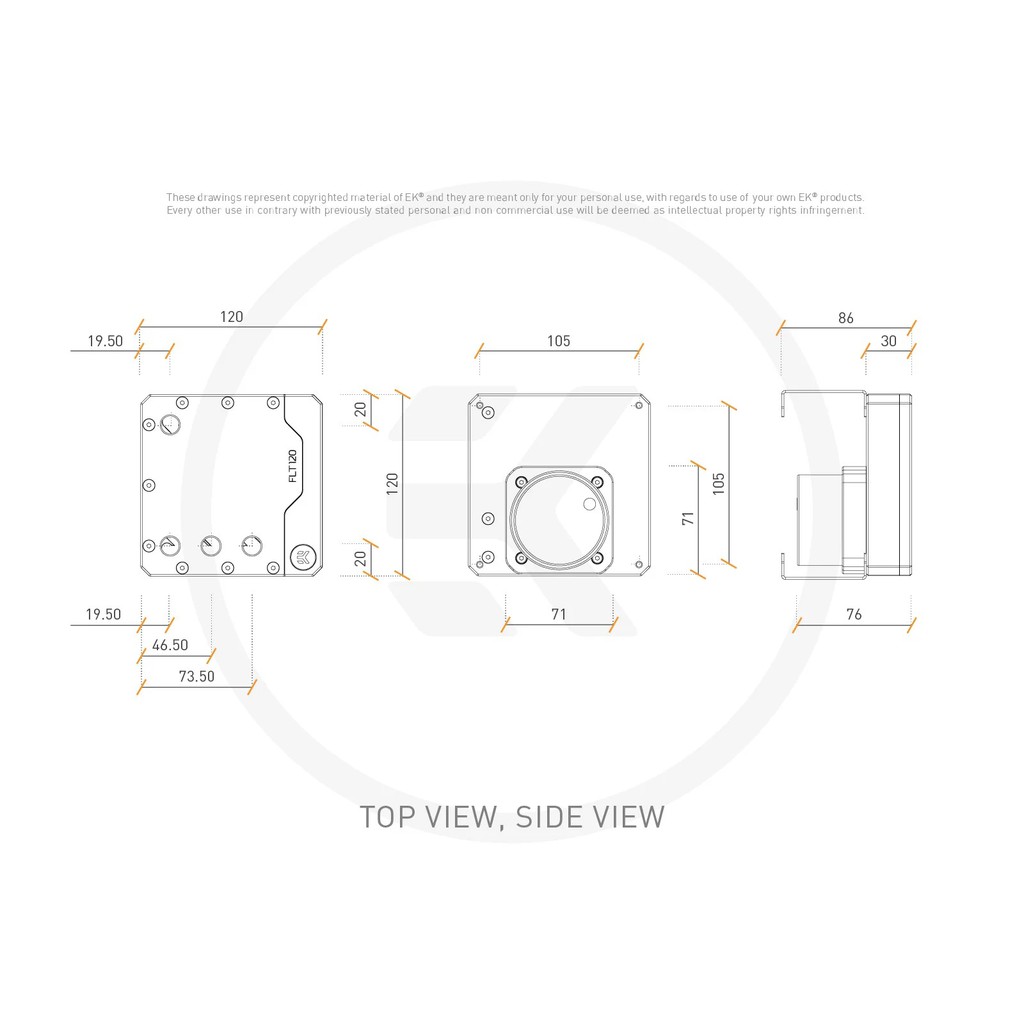

- Size (HxWxT): 125x120x86mm (with the mounting system)
- Capacity: ~100ml
- D-RGB connector 3-pin 5V digital LED header (Pinout: +5V, D, Blocked, Ground)

Pump electrical and mechanical properties:
- Motor: Electronically commuted spherical motor
- Rated voltage: 12V DC
- Power consumption: 23W
- Maximum pressure head: 3.9m
- Maximum flow: 1500L/h
- Maximum system temperature: 60°C
- Materials: Stainless steel, PPS-GF40, EPDM O-rings, Aluminium oxide, hard coal
- Power connector: 4-Pin Molex- and 4-Pin PWM FAN connector

Operational regime:

- PWM duty cycle: ~ 20-100%
- Default behavior: Runs at 100% duty cycle when no PWM feedback signal is present

Enclosed:

- EK-Quantum Kinetic FLT 120 PWM D5 D-RGB
- Mounting mechanism with all necessary screws for 120mm fan mounting
- Pair of EK reservoir holders with mounting screws
- 4 × G1/4 Plugs
- 1 × Allen key for reservoir holders
