EKWB EK CoolStream PE 480 (Quad) (Ketebalan 38mm)

Detail EKWB EK CoolStream PE 480 (Quad) (Ketebalan 38mm)

EK-CoolStream PE 480 (Quad) (Ketebalan 38mm)

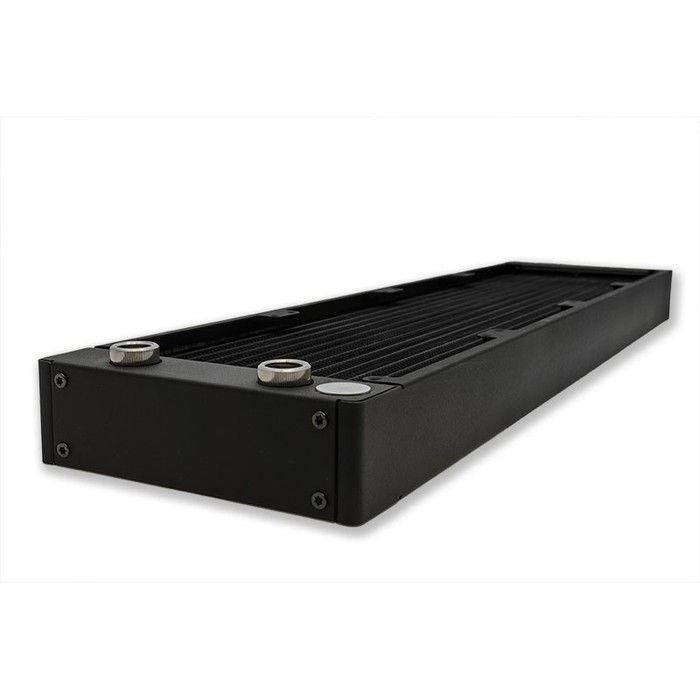

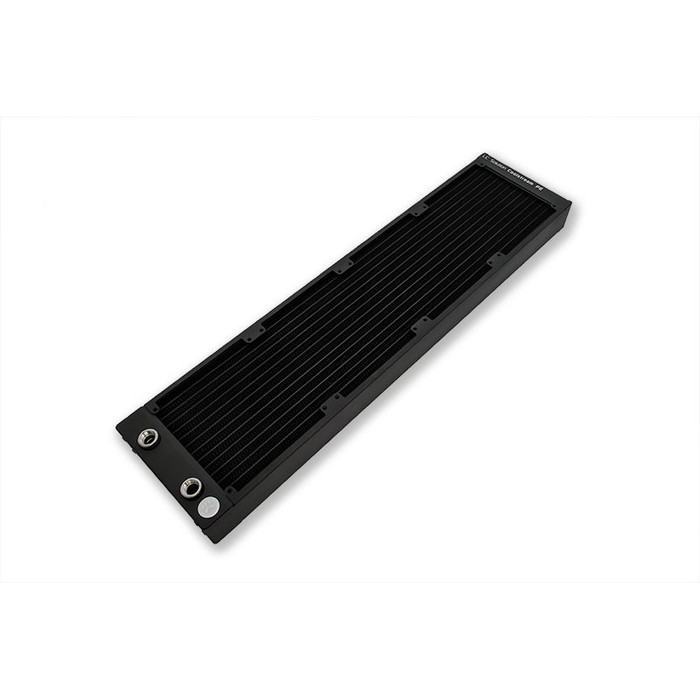

EK-CoolStream PE is a high-performance computer water-cooling radiator which combines EK's unique CSQ design with latest radiator core engine. Built for EK-Vardar 120mm high static pressure fans, these radiators are optimized for maximum heat dissipation across entire fan operational range thus delivering exceptional performance at both low- and high airflow operation.

EK assured quality level, optimal price-performance ratio and unique minimalistic design make these EK-CoolStream PE series radiators a perfect choice for any computer water cooled system.



This radiator offers best cooling capacity in the 40mm thick radiator class: Double stack copper fins provide massive surface area while the parallel flow cooling chambers reduce hydraulic flow resistance to a minimum. Radiator shrouds are tapped with UNC 6-32 threads on both sides to enable push-pull fan installation to even further increase the cooling performance.

This product features two recessed G1/4 threaded ports with pre-installed extenders to allow any G1/4 threaded fitting to be used. EK recommends EK-ACF series compression fittings.

Technical details:
Material:
- Copper fins
- 90% copper tubing (H90)
- Brass chambers
- Aluminum housing

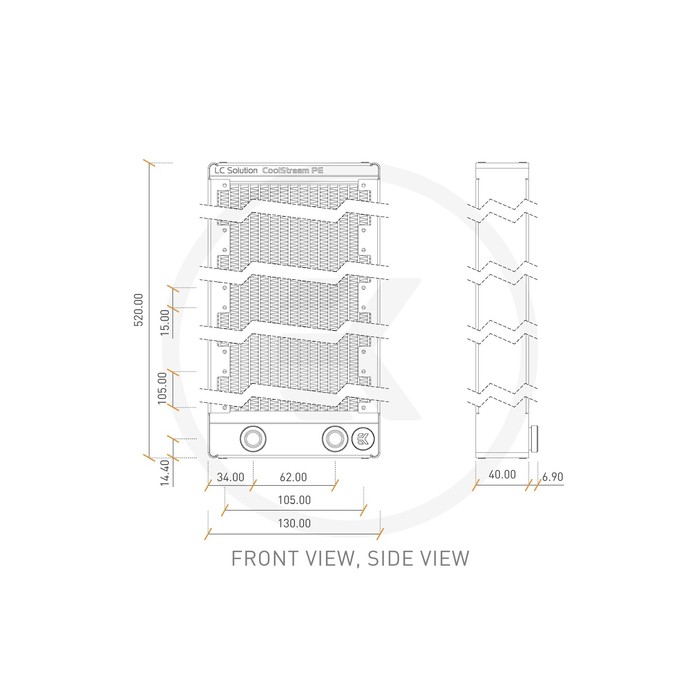

Dimensions: 520 x 130 x 38mm (L x W x H)
Weight: 1.26kg
Liquid Capacity: ~235mL
FPI: 19 (split fin)
Port threads: 2x G1/4
Fan compatibility: any standard size 120x120x25mm fan; UNC 6-32 thread tapping
Pressure tested: 1bar(g)

Enclosed:
- EK-CoolStream PE series radiator /w pre-installed G1/4 extenders

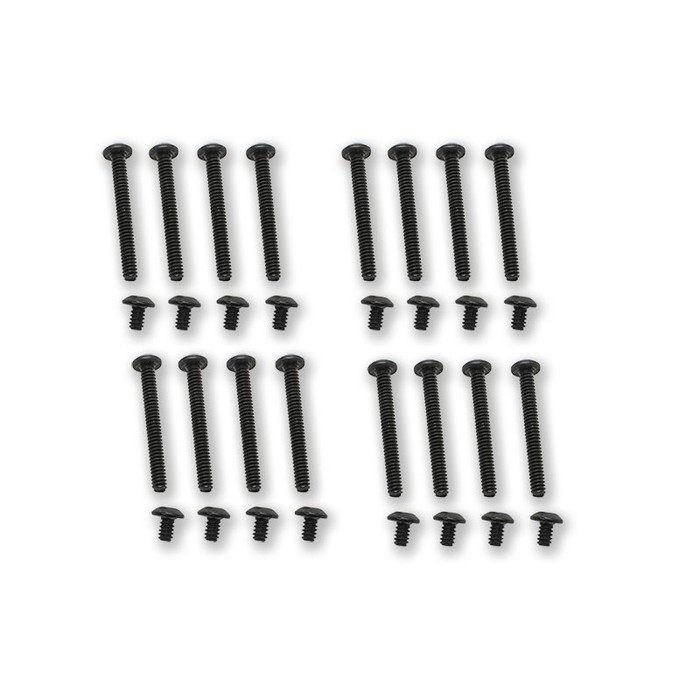

- flat-head UNC 6-32 screws (l=30mm)
- flat-head UNC 6-32 screws (l=5mm)
