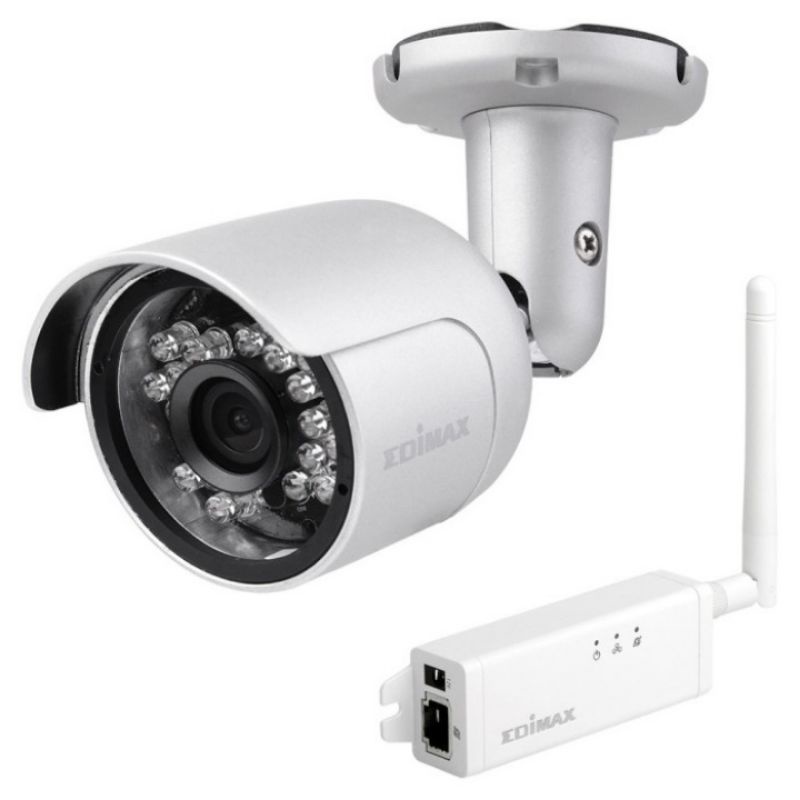

EDIMAX IC-7113W -; Wi-Fi Smart HD Network Camera

Detail EDIMAX IC-7113W -; Wi-Fi Smart HD Network Camera

FUNCTIONS

MANAGEMENT

INTERFACE

•Easy remote monitoring via iPhone, iPad, Android, PC & Mac
•Pan ±355 degrees and tilt ±120 degrees viewing angle
•Supports dynamic DNS service
•IR filter embedded
•Built-in microphone and speaker for two-way audio
•Motion/sound detection recording and alerts to microSD/SDHC card, email and FTP
•Built-in lullaby
•MicroSD/SDHC card slot for local storage

•EdiView Finder (Windows/Mac)
•16-channel viewer
•Web management interface
•Firmware upgradable
•iPhone & iPad viewer app
•Android viewer app

•Ethernet (RJ-45) port
•Power jack
•Reset/WPS button
•Antenna x 2 (1 external & 1 internal)
•MicroSD/SDHC card slot
•Light sensor
•Microphone
•Speaker
•Temperature and humidity sensor
•IR LEDs: 8
•LED indicators

VIDEO

VIDEO SETTINGS

SUPPORTED PROTOCOLS

•High-speed H.264 & MJPEG video compression
•1280 x 720 up to 30 fps
•640 x 360 up to 30 fps
•320 x 176 up to 30 fp

•Resolution: HD (1280 x 720), VGA (640 x 360), QVGA (320 x 176),
•Frame rate: 5, 10, 15, 20 or 30 fps

•IPv4, HTTP, TCP, ICMP, RTSP, RTP, UDP, RTCP, SMTP, SNTP, FTP, DHCP, ARP, DNS, PPPoE

STANDARDS

RF OUTPUT POWER

IR LEDs

•Fast Ethernet IEEE 802.3/802.3u
•Wireless IEEE 802.11b/g/n

•11b: 16~18dBm
•11g: 14~16dBm
•11n: 11~13dBm

•IR LEDs for night illumination up to 15 feet

MEMORY

OPERATING CONDITIONS

POWER

•8MB flash
•128MB SDRAM

•0-40° Celsius
•10-90% (non-condensing)

•12V DC x 1A

DIMENSIONS

DIMENSIONS / WEIGHT

CERTIFICATIONS

•128mm(L) x 112mm(W) x 116mm(H)

•251g

•FCC, CE
