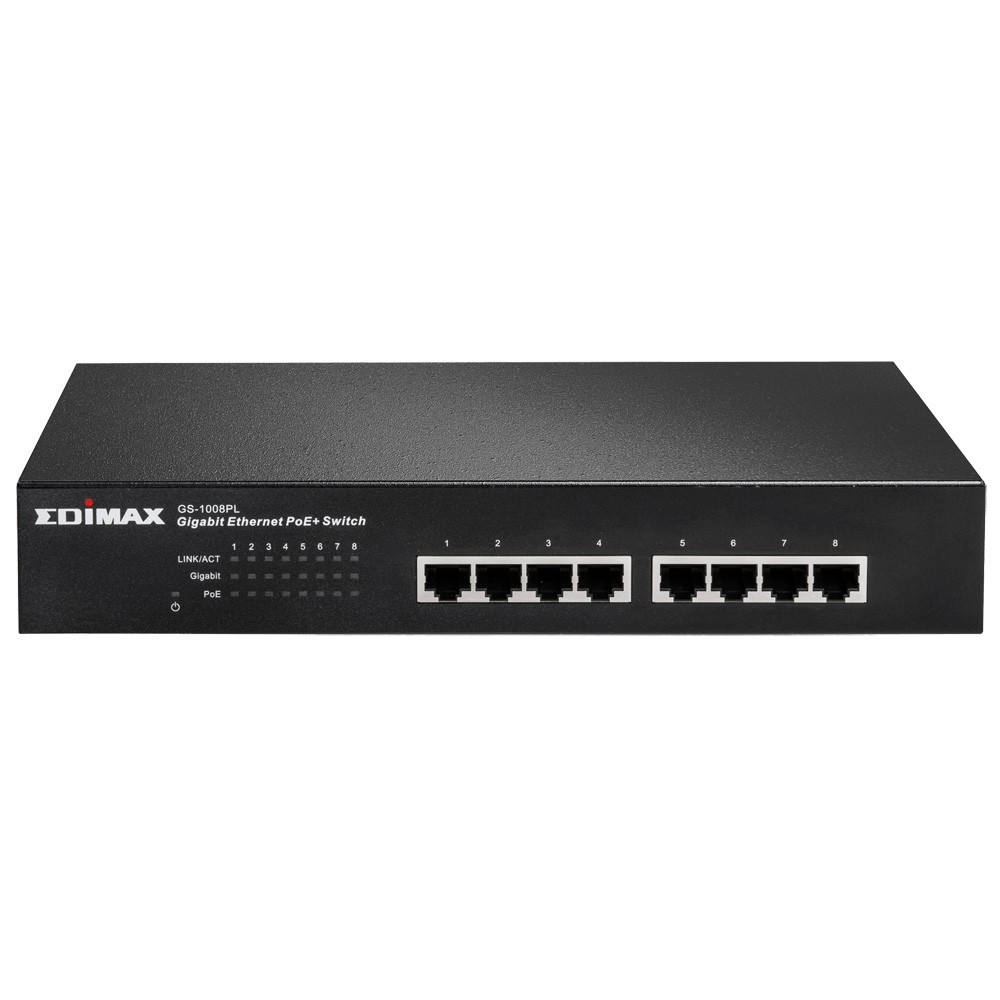

EDIMAX GS-1008PL 8-Port Gigabit Ethernet PoE Switch
Merek: Edimax | Lihat selengkapnya produk Komputer & Aksesoris dari EdimaxDeskripsi singkat
Komputer & Aksesoris > Komponen Network > Switch Internet & PoE > EDIMAX GS-1008PL 8-Port Gigabit Ethernet PoE Switch
Toko:Network Online Official ShopLihat semua produk Komputer & Aksesoris oleh Network Online Official Shop
- Pengiriman Ekspres
- Barang yang diperiksa
- Bayar di tempat berlaku
- Kualitas, Prestise
- Pengembalian produk
- Dukung pembuatan faktur
Produk Terkait
Detail EDIMAX GS-1008PL 8-Port Gigabit Ethernet PoE Switch
STANDARDSFEATURES
FILTERING & FORWARDING RATES
•IEEE 802.3 10BASE-T
•IEEE 802.3u 100BASE-TX
•IEEE 802.3ab 1000BASE-T
•IEEE 802.3af/802.3at PoE
•IEEE 802.3x Flow Control
•IEEE 802.3az Energy Efficient Ethernet
•RJ-45 Ports: 8
•PoE Ports: 8
•MAC Address: 1K
•Buffer Memory: 128K
•Jumbo Frames: 9K
•Transmission Method: Store and Forward
•1000Mbps Port - 1,488,000pps
•100Mbps Port - 148,800pps
•10Mbps Port - 14,880pps
TRANSMISSION MEDIA
LED INDICATORS
POWER REQUIREMENTS
•10BASE-T Cat. 3, 4, 5 UTP/STP
•100BASE-TX Cat. 5 UTP/STP
•1000BASE-T Cat. 5e UTP/STP
•Power: Green LED
•LNK/ACT: Green LED (Port 1 - Port 8)
•Gigabit: Green LED (Port 1 – Port 8)
•PoE: Green LED (Port 1 – Port 8)
•100 to 240V AC, 50/60Hz
•Consumes 5 Watts (Max. no PD connected)
POWER BUDGET
TEMPERATURE
HUMIDITY
•Total Power Budget: 80W
•PoE Power Budge: Up to 75W
•Operating: 0 to 50℃
•Storage: -40 to 70℃
•Operating: 10 to 90% RH (Non-condensing)
DIMENSIONS
WEIGHT
CERTIFICATIONS
•265 x 184 x 44mm (L x W x H)
•1.43kg
•CE
•FCC Class B
Gambar produk
