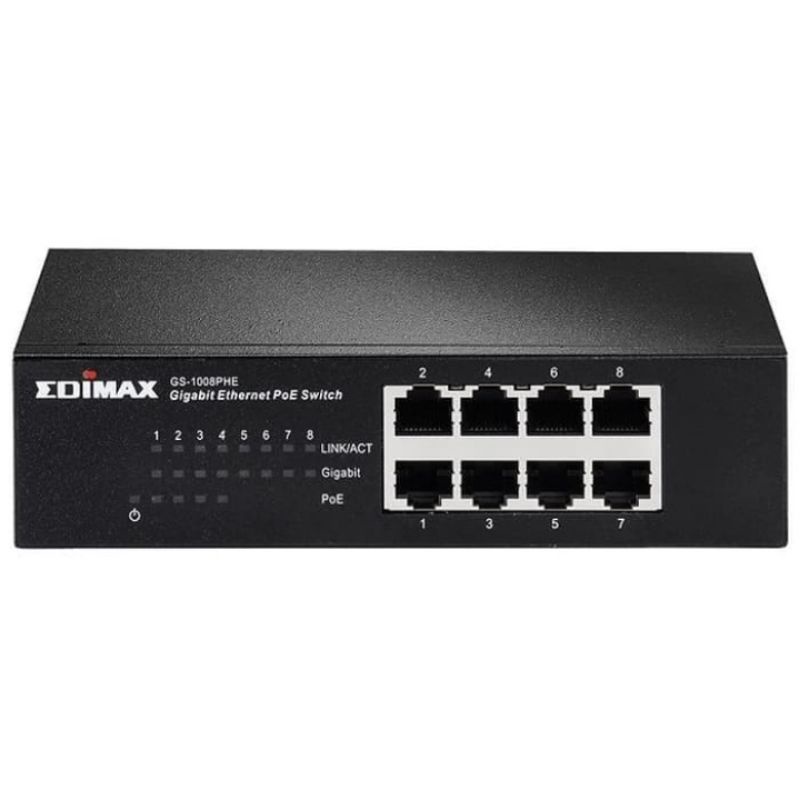

EDIMAX GS-1008PHE - Switch Ethernet 2Port PoE With 8Port Gigabit Ethernet

Detail EDIMAX GS-1008PHE - Switch Ethernet 2Port PoE With 8Port Gigabit Ethernet

The GS-1008PHE is an 8-port Gigabit Ethernet switch with 4 PoE (Power over Ethernet) ports, designed for use in home, small or medium sized network environments. It is easily to connect and supplies power to any PoE-enabled devices such as wireless access points, network cameras, IP phones as well as the other Ethernet-enabled devices , for example, computers, printers, and network attached storages (NAS) onto the some network. The device's compact size and fan-less design makes the GS-1008PHE ideal for home and small business easily to expand the network.

FEATURES
Complies with IEEE 802.3, 802.3u, 802.3ab, 802.3x, and 802.3af standards
Supplies 48V DC with up to 15.4W output per PoE port (port 1 to port 4)
Automatically detects powered devices (PD) and power consumption levels
Supports IEEE 802.3az Energy Efficient Ethernet
Supports IEEE 802.3x flow control for Full-duplex mode and backpressure for Half-duplex mode
Includes an external power adapter

SPECIFICATIONS

STANDARDS
IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX
IEEE 802.3ab 1000BASE-T
IEEE 802.3af PoE
IEEE 802.3x Flow Control
IEEE 802.3az Energy Efficient Ethernet

FEATURES
RJ-45 Ports: 8
PoE Ports: 4
MAC Address: 1K
Buffer Memory: 128K
Transmission Method: Store and Forward

FILTERING & FORWARDING RATES
1000Mbps Port - 1,488,000pps
100Mbps Port - 148,800pps
10Mbps Port - 14,880pps

POWER REQUIREMENTS
100 to 240V AC, 48V/1A (external power adapter)

POWER BUDGET
Total Power Budget: 48W
PoE Power Budge: Up to 43W

DIMENSIONS/WEIGHT
165 x 118 x 38mm (L x W x H)/0.55KG
