EDIMAX ES-1008PHE - Switch Fast Ethernet 8Port

Detail EDIMAX ES-1008PHE - Switch Fast Ethernet 8Port

Complies with IEEE 802.3, 802.3u, 802.3x, and 802.3af standards
Supplies 48V DC with up to 15.4W output per PoE port (port 1 to port 4)
Automatically detects Powered Devices (PDs) and power consumption levels
Supports IEEE 802.3az Energy Efficient Ethernet
Supports IEEE 802.3x flow control for Full-duplex mode and backpressure for Half-duplex mode
Includes an external power adapter

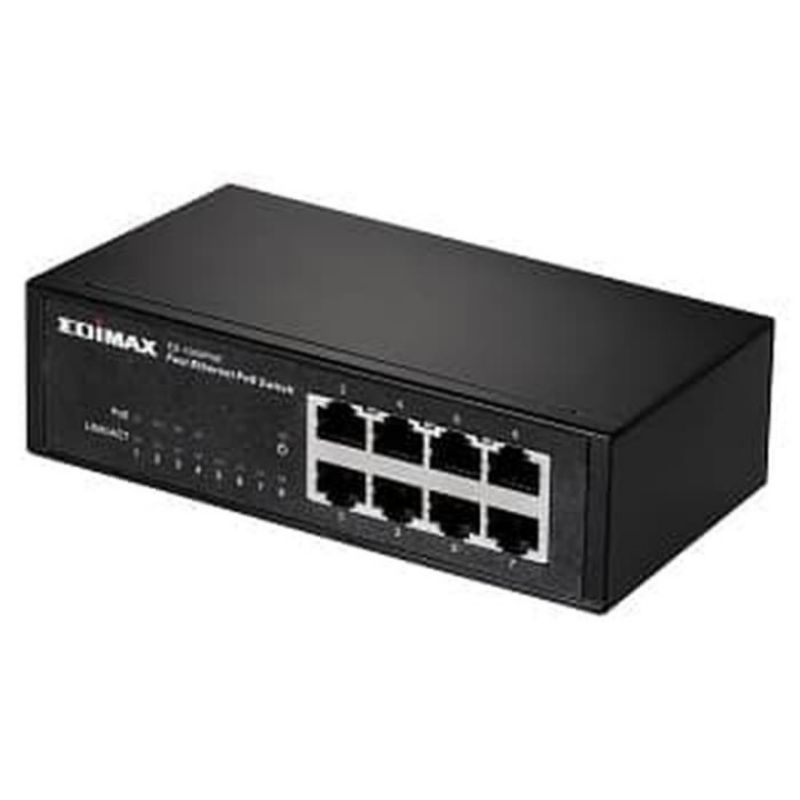

The ES-1008PHE is an 8-port Fast Ethernet switch with 4 PoE (Power over Ethernet) ports, designed for use in home, small or medium sized network environments. It is easily to connect and supplies power to any PoE-enabled devices such as wireless access points, network cameras, IP phones as well as the other Ethernet-enabled devices , for example, computers, printers, and network attached storages (NAS) onto the some network. The device's compact size and fan-less design makes the ES-1008PHE ideal for home and small business easily to expand the network.

Power over Ethernet (PoE) Auto Detection
The ES-1008PHE features 4 IEEE 802.3af Power over Ethernet (PoE) ports, port 1 to port 4, which supply up to 15.4 watts of power per port to IEEE 802.3af compliant network devices, including wireless access points, network cameras and IP phones. The ES-1008PHE also features PoE detection, to verify whether the connected device is IEEE 802.3at compliant and supply power as needed; if it is not a PoE device, only data will be sent through the LAN cable.

Plug & Play, No Installation And Special Cable Required
The ES-1008PHE is with no configuration required. Just easily plug the Ethernet or PoE enabled devices into port 1 to port 4 of the ES-1008PHE switch, the data and power can be transmitted through the existing standard Cat-5 Ethernet cables with no additional cost for special cables.
