EDFA WDM 4x23dBm High powerDouble Power Fiber Optik Amplifier CATV

Detail EDFA WDM 4x23dBm High powerDouble Power Fiber Optik Amplifier CATV

Deskripsi Produk

- Operating bandwidth nm 1530 - 1560
- Optical input power dBm -3 - +10 range
- Maks optical output power 23 dBm
- Output power stability dBm ±0.5
- Output power adjustable range 0-20dBm
- Noise figure dB ≤ 5.0
- Remark imput power 0dBm 1550nm inputλ=1550nm power
- Return loss input ≥ 45 dan Output dB ≥ 45
- Optical Connector type SC/APC
- C/N dB ≥ 50 dB
- C/CTB dB ≥ 63 dB
- C/CSO dB ≥ 63 dB
Remark : Test condition according tp GT/T 185-2002
- Power supply voltage A:AC160V-250V (50Hz) B: DC48V
- Operating temperature °C -10 - +42 range
- Maximum relative humidity operating % Max 95% no condensation
- Storage temperature range °C -30 - +70
- Maximum relative humidity storage Max 95% no condensation
- Dimension mm 483(L)×460(W)×44(H)

Aplication
- Single mode fiber 1550 amplification network
- FTTH network
- CATV network
- Perf characteristics : SNMP network management

• GARANSI 1 TAHUN DENGAN RINCIAN GARANSI DISTRIBUTOR 3 BULAN SELANJUTNYA
AKAN DIBANTU GARANSI KE PRODUSEN CHINA.
BIAYA PP CHINA – IND SEPENUHNYA DITANGGUNG PEMBELI

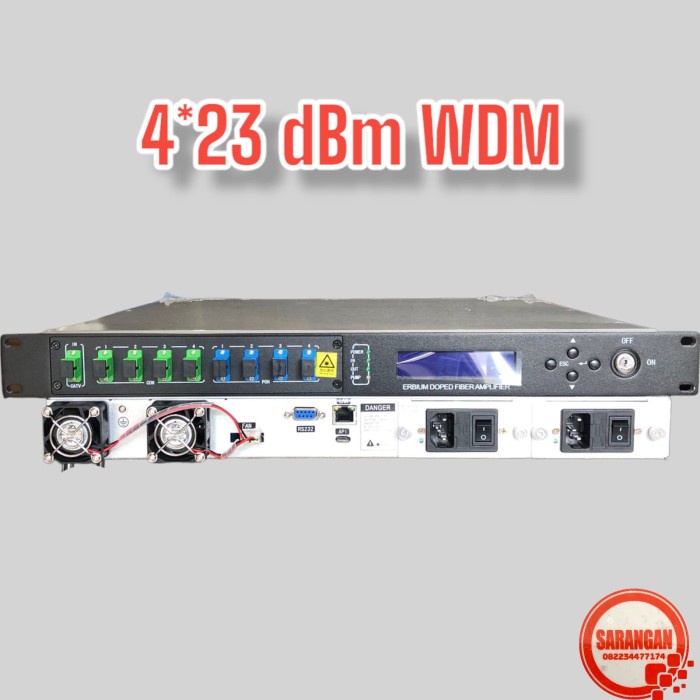

Gambar produk
