DT9205A Multimeter Digital Professional Voltage Tester AC DC 1000V 20A Ammeter Voltmeter Resistansi Kapasitansi Penguji Pengukur Daya AC dan DC

Detail DT9205A Multimeter Digital Professional Voltage Tester AC DC 1000V 20A Ammeter Voltmeter Resistansi Kapasitansi Penguji Pengukur Daya AC dan DC

DT9205A Multifunction Digital Multimter with Over-load Protection Voltage Meter, Angle adjustable Large screen, and easy to read. Full protection design against burn. Data hold function for easy reading after measurement with PVC shockproof holster and double fuse, safe and reliable.

Technology Features :

DCV : 200m-2-20-200-1000V ±0.5%
ACV : 200m-2-20-200-750V ±1.0%
DCA : 2m-20m-200m-20A ±1.8%
ACA : 2m-20m-200m-20A ±2.0%
OHM : 200-2k-20k-200k-2M-20MΩ-200MΩ ±1.0%
Cap : 20n-200n-2u-20u-200uF 4.0%
General Description :

3.5 Inch digit LCD, Max display 1999
Low-Voltage Display
Diode Testing : Display Approximate Voltage
Overload protection : yes
Audion Testing : yes
Continuity Buzzer : yes
Auto power off : yes
Data hold: yes
Max display: 1999, Automatic polarity display
All ranges fully protected
Diode assembly test / Transistor P-N junction test/Transistor hFE test
Continuity test with buzzer sound in circuit
Low battery voltage indication
Automatic power off
Data hold function
Electric circuit protection
Specifications :

Model : DT9025A
Max AC Current : 20A
Max AC Voltage range : 750V
Max DC Voltage range : 1000V
Resistance Measurement : 200 Ohm-2000M Ohm range
Power Supply : 9V 6F22 battery(not include)
Dimension : 192 x 92 x 32 mm
Colour : black
Weight : 245 g
With retial box weight : 331g

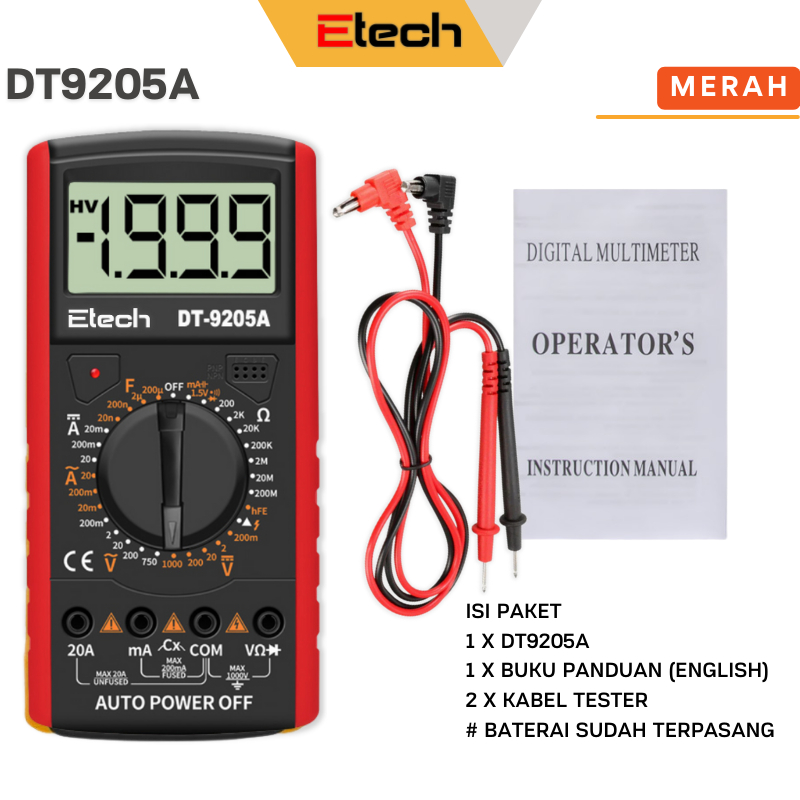

Parcel include :

1xDigital Multimeter.
2x Test Leads
1xEnglish munual

Scale degree amp, Accuracy :

Showed as in the table
Electrical Specification :

Function

DC Vol.
- Range : 200mV, Accuracy : +-(0.5%+3d)
- Range : 2v, 20v, 200v, Accuracy : +-(0.8%+2d)
- Range : 1000v, Accuracy : +-(0.8%+4d)
- Resolution : 0.1mV, 1mV, 10mV, 0.1V, 0.5V
AC Vol.
- Range : 200mV, Accuracy : +-(1.2%+5d)
- Range : 2V, 20V, 200V, 750V, Accuracy : +-(1.0%+5d)
- Accuracy : +-(1.2%+5d)
- Resolution : 0.1mV, 1mV, 10mV, 0.1V, 0.375V, 0.001mA, 0.01mA
AC Amp.
- Range : 2mA, 20mA, Accuracy : +-(2.0%+3d)
- Range : 200mA, 20A
- Accuracy : +-(2.0%+5d), +-(3.0%+10d)
- Resolution : 0.001mA, 0.01mA, 0.1mA, 10mA
DC Amp.
- Range : 2mA, 20mA, 200mA, Accuracy : +-(1.0%+5d)
- Range : 20A
- Accuracy : +-(2.0%+10d)
- Resolution : 0.001mA, 0.01mA, 0.1mA, 10mA
Resistance
- Range : 200Ω, Accuracy : +-(1.0%+10d)
- Range : 2KΩ, 20KΩ, 200KΩ, 2MΩ, Accuracy : +-(1.0%+4d)
- Range : 20MΩ, 200MΩ
- Accuracy : +-(1.0%+5d), +-(5.0%+20d)
- Resolution : 0.1Ω, 1Ω, 10Ω, 100Ω, 1kΩ, 10kΩ, 100kΩ
Capacitance
- Range : 20nF, 200nF, 2μF, 20μF, Accuracy : +-(4.0%+5d)
- Range : 200μF
- Accuracy : +-(5.0%+10d)
- Resolution : 0.01nF, 0.1nF, 1nF, 10nF, 100nF
Diode
- Forward current: 1mA(Approx), Reverse voltage: 2.8V

Gambar produk
