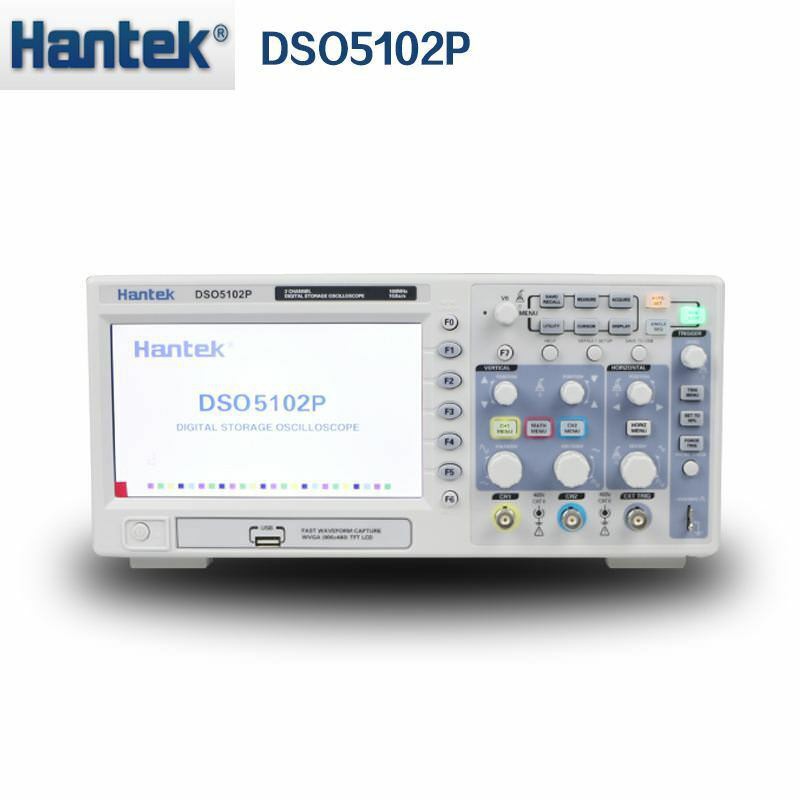

Digital Storage Oscilloscope DSO Hantek DSO5102P Osiloskop Portabel

Elektronik > Perangkat Audio & Speaker > Kabel & Konverter Audio & Video > Digital Storage Oscilloscope DSO Hantek DSO5102P Osiloskop Portabel
  • Pengiriman Ekspres
  • Barang yang diperiksa
  • Bayar di tempat berlaku
  • Kualitas, Prestise
  • Pengembalian produk
  • Dukung pembuatan faktur

Detail Digital Storage Oscilloscope DSO Hantek DSO5102P Osiloskop Portabel

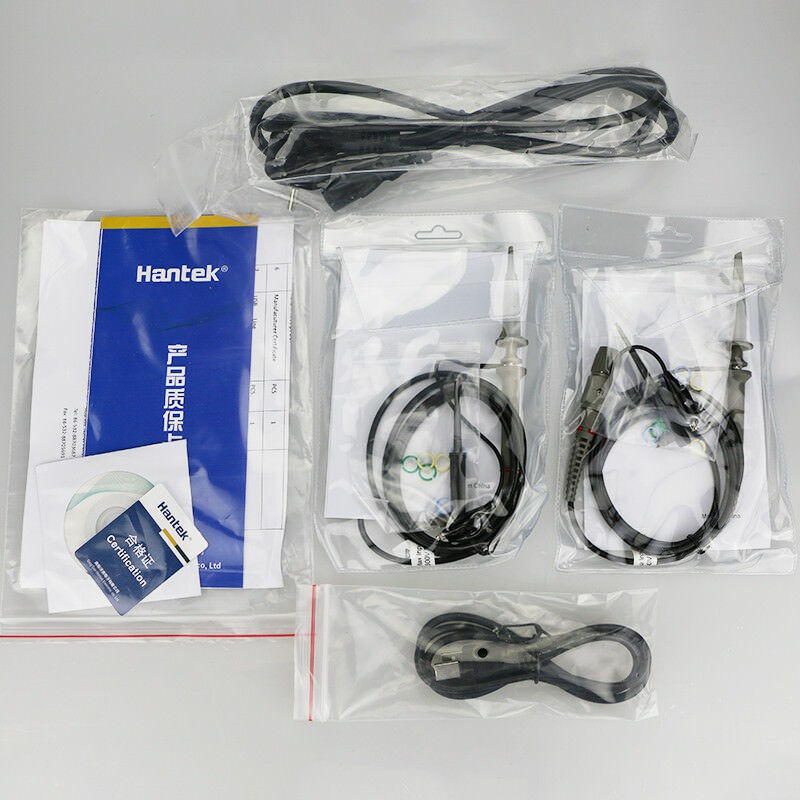

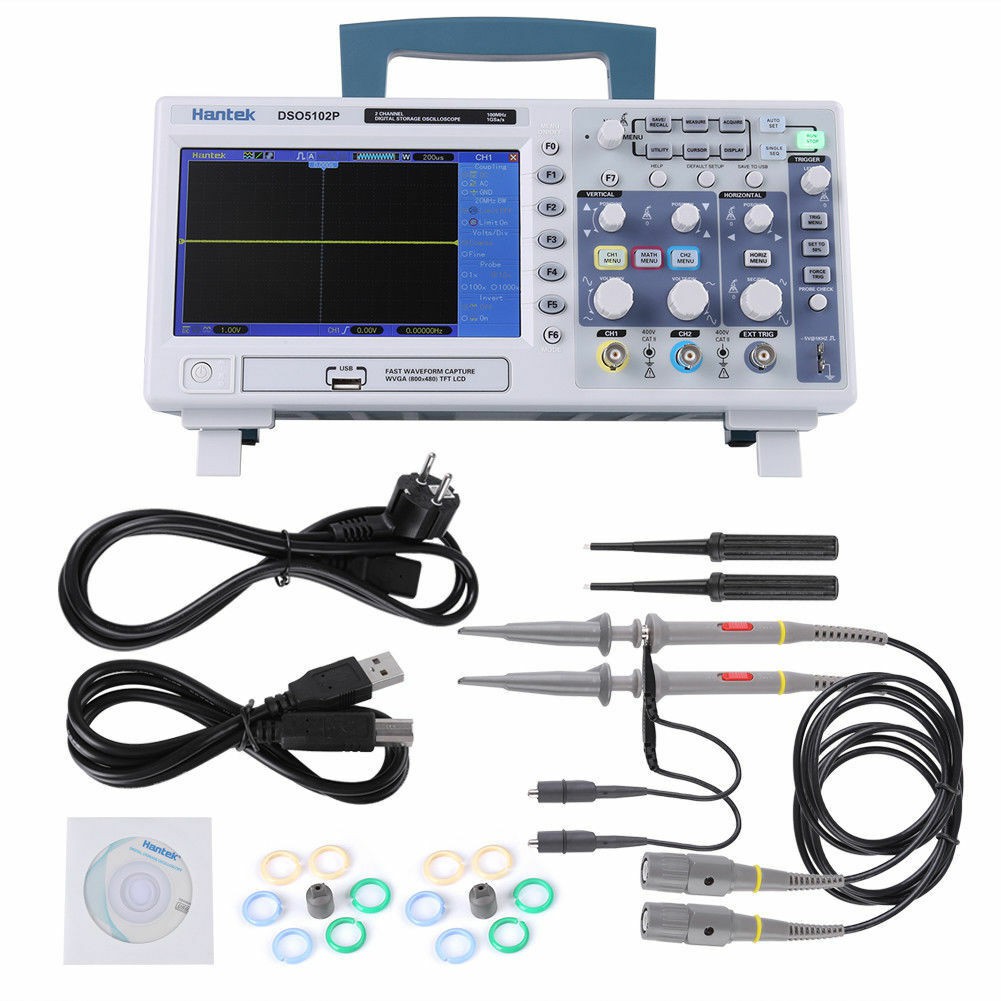

Kelengkapan:

1 x 5102P Oscilloscope Digital
2 x Connecting Lines
1 x USB Cable
1 x Installation CD
1 x Power line
1 x Original box

Feature
100MHz bandwidths
1GSa/s Real Time sample rate
Large (7.0-inch) color display,WVGA(800x480)
Record length up to 40K
Trigger mode: edge/pulse width/line selectable video/slop/overtime etc.
USB host and device connectivity, standard
Multiple automatic measurements
Four math functions, including FFTs standard
Provides software for PC real-time analysis
VGA Optional

Specification
Manufacturer : HANTEK
Oscilloscope type : digital
Bandwidth : 100MHz
Number of channels : 2
Memory record length : 40kpts
Sampling : 1Gsps (in real time), 25Gsps (in equivalent time)
Rise time : 3,5ns
Type of display used : LCD 7" (800x480), color
Time base : 4n...40s/div
Vertical resolution : 8bit
Weight : 3.5KG(with Packing); 2.08KG(without Packing
Power supply : 100...120VAC, 45...440Hz, 120...240VAC, 45...66Hz

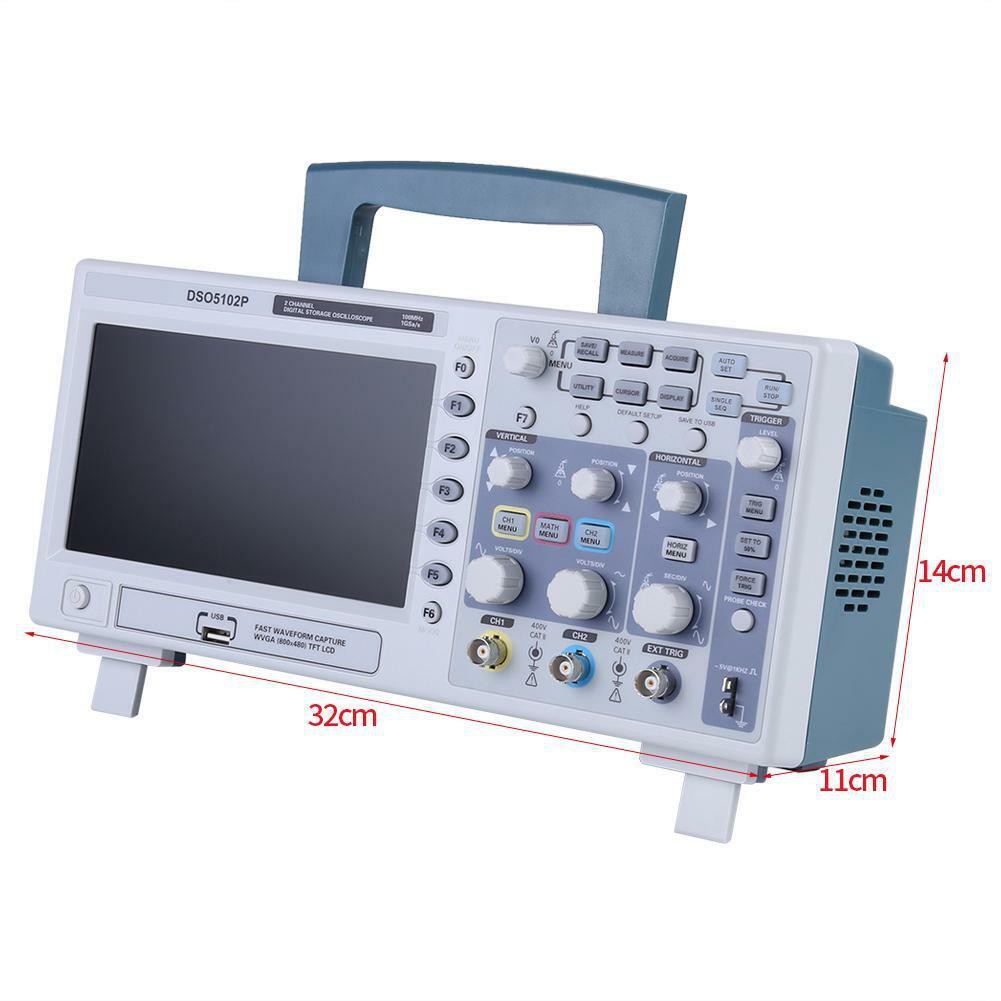

Overall dimensions (W x D x H) : 313 x 108 x 142mm
Interface : USB
Manufacturer series : DSO5000P
